Doosan D35C-9 User Manual

Operation Section
-99-
Product Configuration and Functions

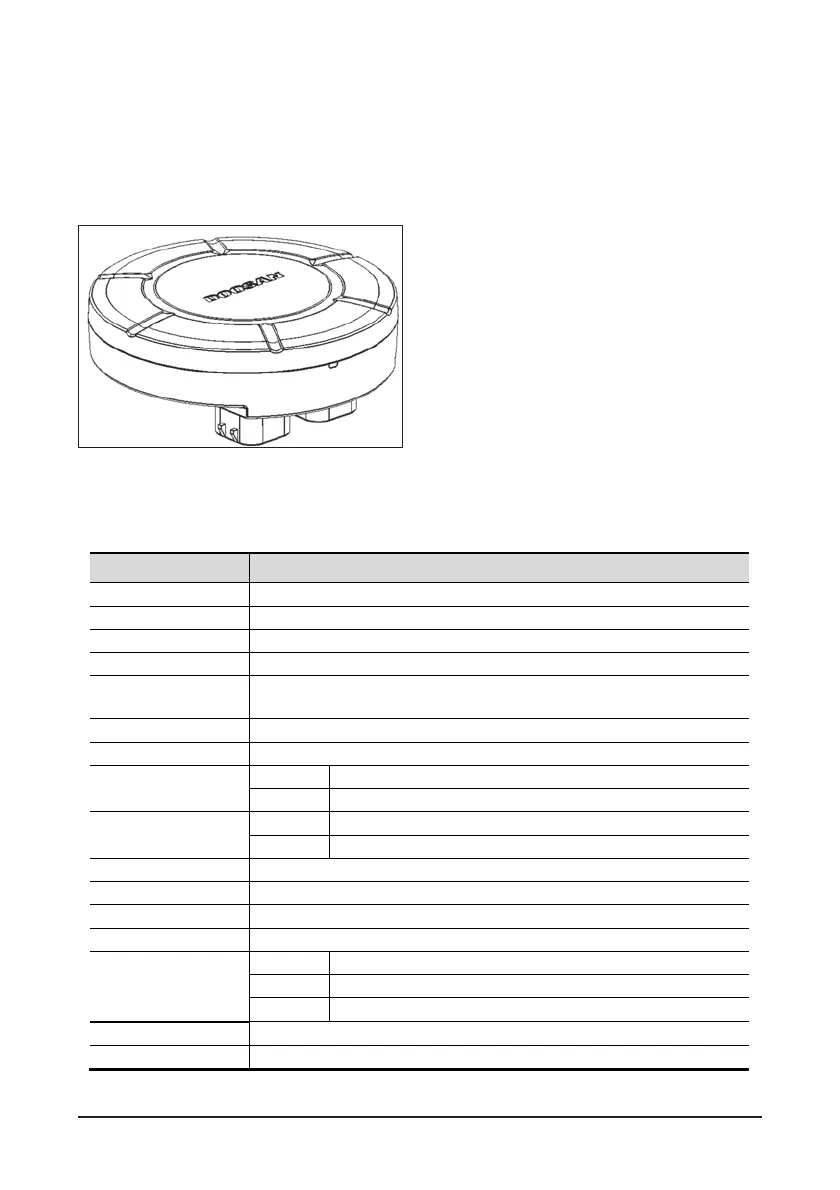

The TMS (LIN-Q) terminal is configured and
connected as shown in the figure below. A separate
harness cable assembly is required to connect it to
the vehicle.
• LTE communications (Cat 4, 150M DL/ 50M UL),
globally supported modem
• CAN data (J1939) collection
• Data collection from various vehicle sensors
• Periodic transmission of collected data
• Transmission of irregular event data
• Operating restriction by syncing with NFC
• Impact detection
• Remote update function
• Various I/O ports
 2 digital inputs
 3 digital in/outputs
 1 analog input
 CAN
 UART 2 ports
Product Specifications
Item DTM-02L
Size ø117.7 (D) x 31 (H) [mm] [Unit: mm]
Weight 204 grams
Operating temp. -30°C to +70°C (-22°F to +158°F)
Storage temp. -40°C to +85°C (-40°F to +185°F)
Vibrations
Random 5 – 20 Hz 0.05 g2/Hz, 20 – 150 Hz: -3 dB/oct. (1.7g rms), 3-axis, 30
minutes for each axis.
Thermal shock -40°C (1H)/+85°C (1H), 1 cycle - total 24 cycles, 48H, non-operating
Humidity +70°C /95%/48 hours, operating
Communication
LTE LTE data modem (LTE Cat4, worldwide)
BT nRF52810, Bluetooth 5.0
GPS
Chipset Gen8C-Lite
TTFF Cold start: 35 sec./Hot start: 2.5 sec.
IP class IP66
Operating voltage +9 V DC to +34 V DC
Current consumption Sleep mode: 20 uAh or less (IGN OFF) /Standby mode: 100 mAh or less
I/O ports 2 X 8 pin waterproof connectors
Antenna
LTE Internal
BT Internal
GPS Internal
SIM ESIM
LED 4 LEDs (POWER, BT, COMM, GPS)
