Service Manual
Ophthalmic Surgical System
Chapter 2 - Maintenance instructions
N° doc.: 30204400-B - Version date: Nov. 01, 2013 - 27

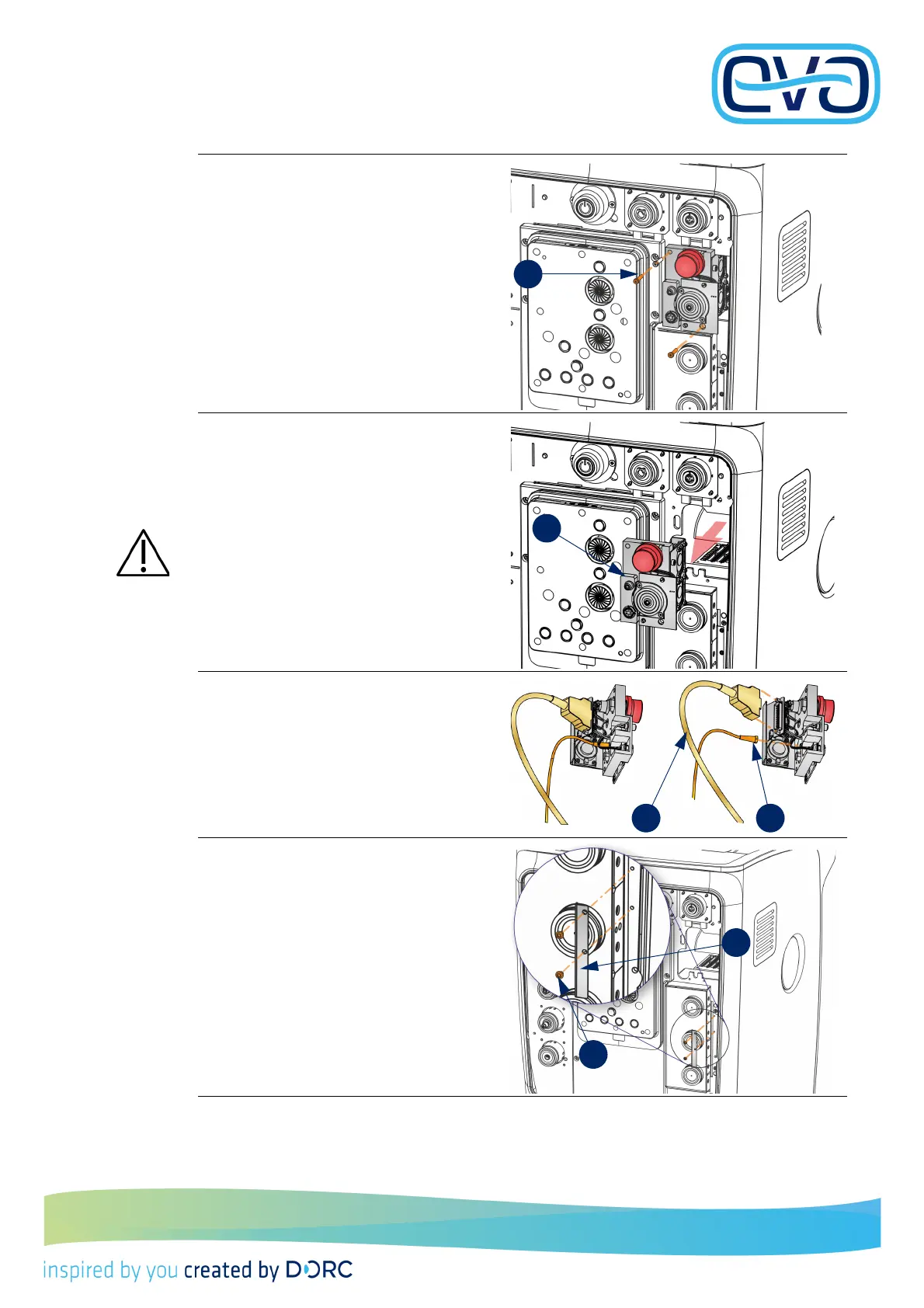

7. Unscrew the 4 screws of the laser con-
nector plate.
8. Move the laser interface plate carefully a
little bit forwards.
Be careful ! The laser fiber and
CAN cable are still connected.
9. Disconnect the laser fiber.
10. Disconnect the CAN cable.
11. Unscrew the 2 screws of the guide plate.
12. Remove the guide plate.
