5.9
5. Lubricate all o-rings and gaskets.
7. Install new element.
8. Reinstall cover with nuts (torque nuts to 35 ft/lbs.).
HYDRAULIC OIL FILTER – 3 MICRON
Change element as follows – (with unit in shutdown).
1. Remove nuts and cover.
2. Remove element (with by-pass assembly) and
discard in a safe environmental way.
3. Clean housing with a lint free cloth.
4. Check o-ring and gasket and replace if necessary.
Printed in U.S.A.
©COPYRIGHT 2006, Heil Environmental
ISSUED JANUARY 2006

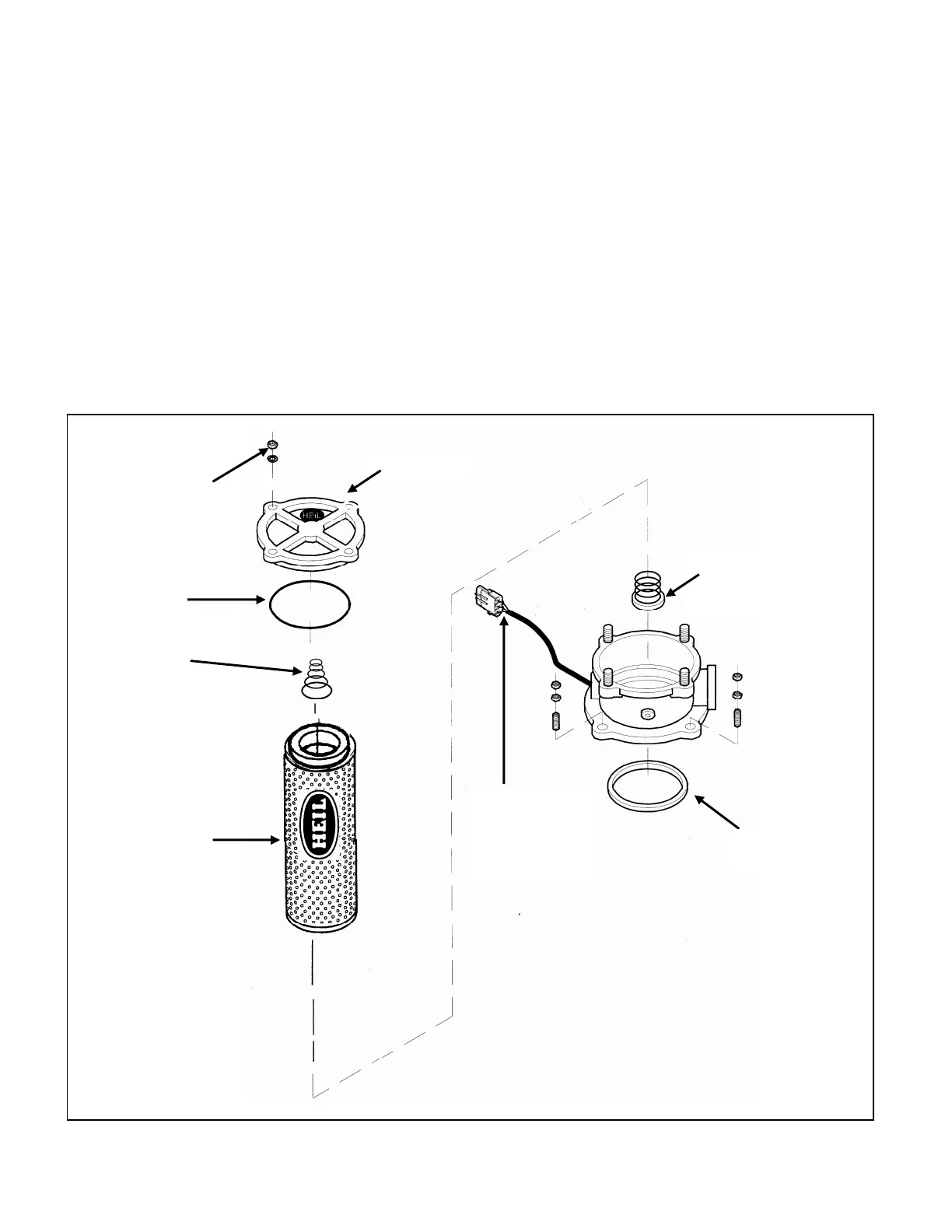

COVER
