Dover HEIL DuraPack 5000 - Connectors, Plugs, Pins and Accessories for Deutsch Electrical Parts

1004
DuraPack
®
5000
SCHEMATICS
ISSUED JANUARY 2010 Printed in U.S.A.
COPYRIGHT 2010, Heil Environmental
CONNECTORS, PLUGS, PINS AND ACCESSORIES FOR DEUTSCH
ELECTRICAL PARTS
108-4815
PINS AND SOCKETS
108-4815-101 PIN (6 GA)
108-4815-102 SOCKET (6 GA)
108-4815-103 SEALING PLUG (6 GA)
108-4815-104 PIN (8-10 GA)
108-4815-105 SOCKET (8-10 GA)
108-4815-106 SEALING PLUG (8-10 GA)
108-4815-107 PIN (12-14 GA)
108-4815-108 SOCKET (12-14 GA)
108-6461-100 SEALING PLUG (12-14 GA)
108-4815-110 PIN (16-18 GA)
108-4515-111 SOCKET (16-18 GA)
108-6461-100 SEALING PLUG (16-18 GA)
108-4815-112 PIN (20-24 GA)
108-4815-113 SOCKET (20-24 GA)
108-4815-114 SEALING PLUG (20-24 GA)
GOLD PINS & SOCKETS
108-4815-120 PIN (12-14 GA)
108-4815-121 SOCKET (12-14 GA)
108-4815-124 PIN (14-16 GA)
108-4815-125 SOCKET (14-16 GA)
108-4815-122 PIN (16-18 GA)
108-4815-123 SOCKET (16-18 GA)
108-4815-126 PIN (20-24 GA)
108-4815-127 SOCKET (20-24 GA)

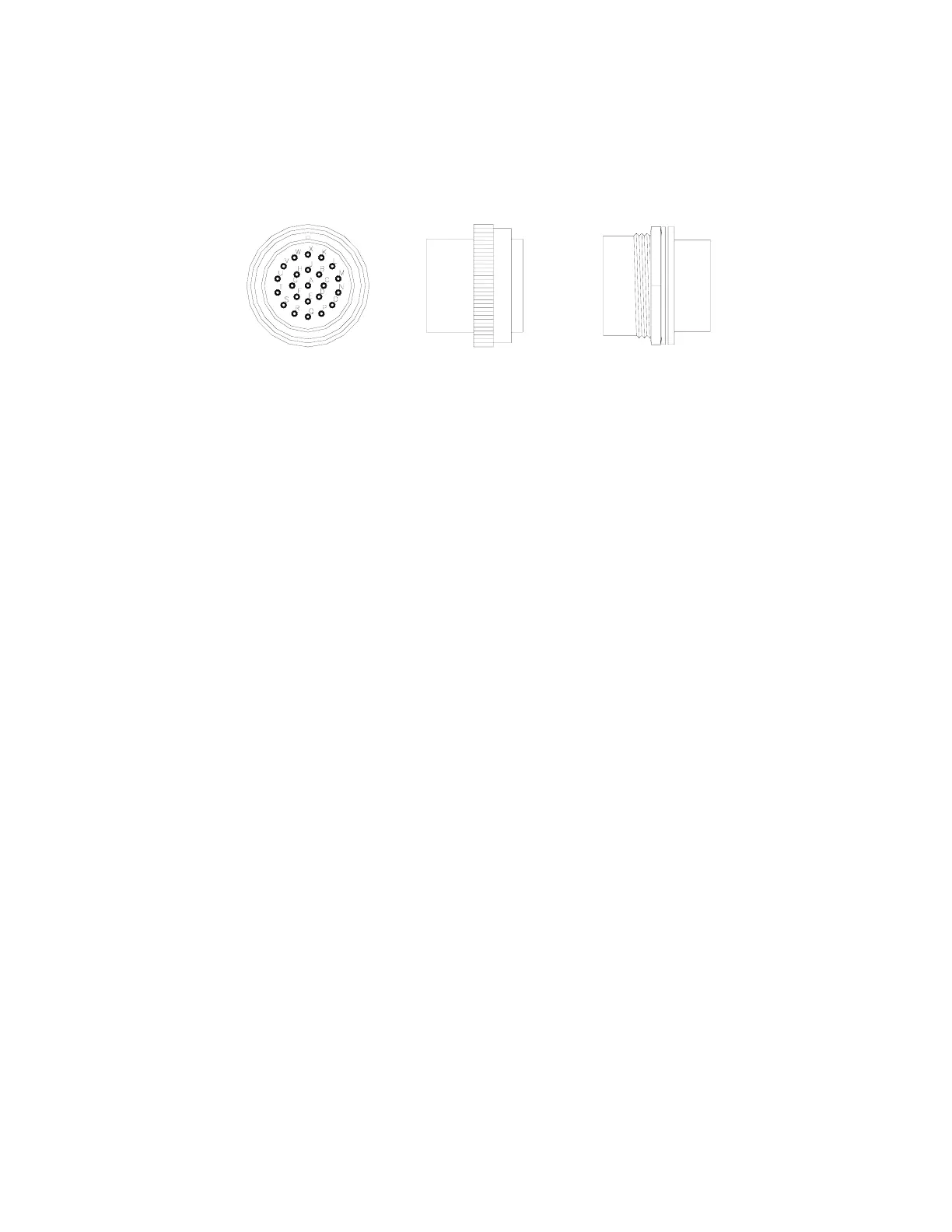

METAL CONNECTOR SHELLS
108-4815-001 21 (PIN) RECEPTACLE
108-4515-002 21 (SOCKET) PLUG
108-4815-003 31 (PIN) RECEPTACLE
108-4815-004 31 (SOCKET) PLUG
108-4815-005 23 (PIN) RECEPTACLE
108-4815-006 23 (SOCKET) PLUG
108-4815-007 16 (PIN) RECEPTACLE
108-4815-008 16 (SOCKET) PLUG
108-4815-009 14 (PIN) RECEPTACLE (16 GA)
108-4515-010 14 (SOCKET) PLUG (16 GA)
108-4815-015 35 (PIN) RECEPTACLE (3-16 GA, 32-20 GA)
108-4815-016 35 (SOCKET) PLUG (3-16 GA, 32-20 GA)
108-4815-017 8 (PIN) RECEPTACLE (12 GA)
108-4815-018 8 (SOCKET) PLUG (12 GA)
