Dover HEIL DuraPack 5000 - Tailgate Valve

OUTLET
SECTION
031-3245-009
BLADE SECTION
031-3544-006
INLET
SECTION
031-3245-005
BLADE BACK-OFF
RELIEF VALVE
SET @ 3900 PSI
031-3245-008
OUTLET
SECTION
031-3245-009
BLADE SECTION
031-3544-006
INLET
SECTION
031-3245-005
BLADE BACK-OFF
RELIEF VALVE
SET @ 3900 PSI
031-3245-008
PORT RELIEF CARTRIDGE *
SET @ 1400 PSI (031-3242)
(WINCH HAS 2 PORT RELIEFS, ONE NOT
SHOWN IS ON OPPOSITE SIDE OF SECTION)
OUTLET
SECTION
031-3245-009
BLADE
SECTION
031-3544-006
ARM OR
ROLL BAR
SECTION
031-6267
INLET
SECTION
031-3245-005
WINCH OR
ROLL BAR
SECTION
031-6267
BLADE BACK-OFF
RELIEF VALVE
SET @ 3900 PSI
031-3245-008
PORT RELIEF CARTRIDGE *
SET @ 1400 PSI (031-3242)
(WINCH HAS 2 PORT RELIEFS, ONE NOT
SHOWN IS ON OPPOSITE SIDE OF SECTION)
* RELIEF IS NOT
INCLUDED W/VALVE

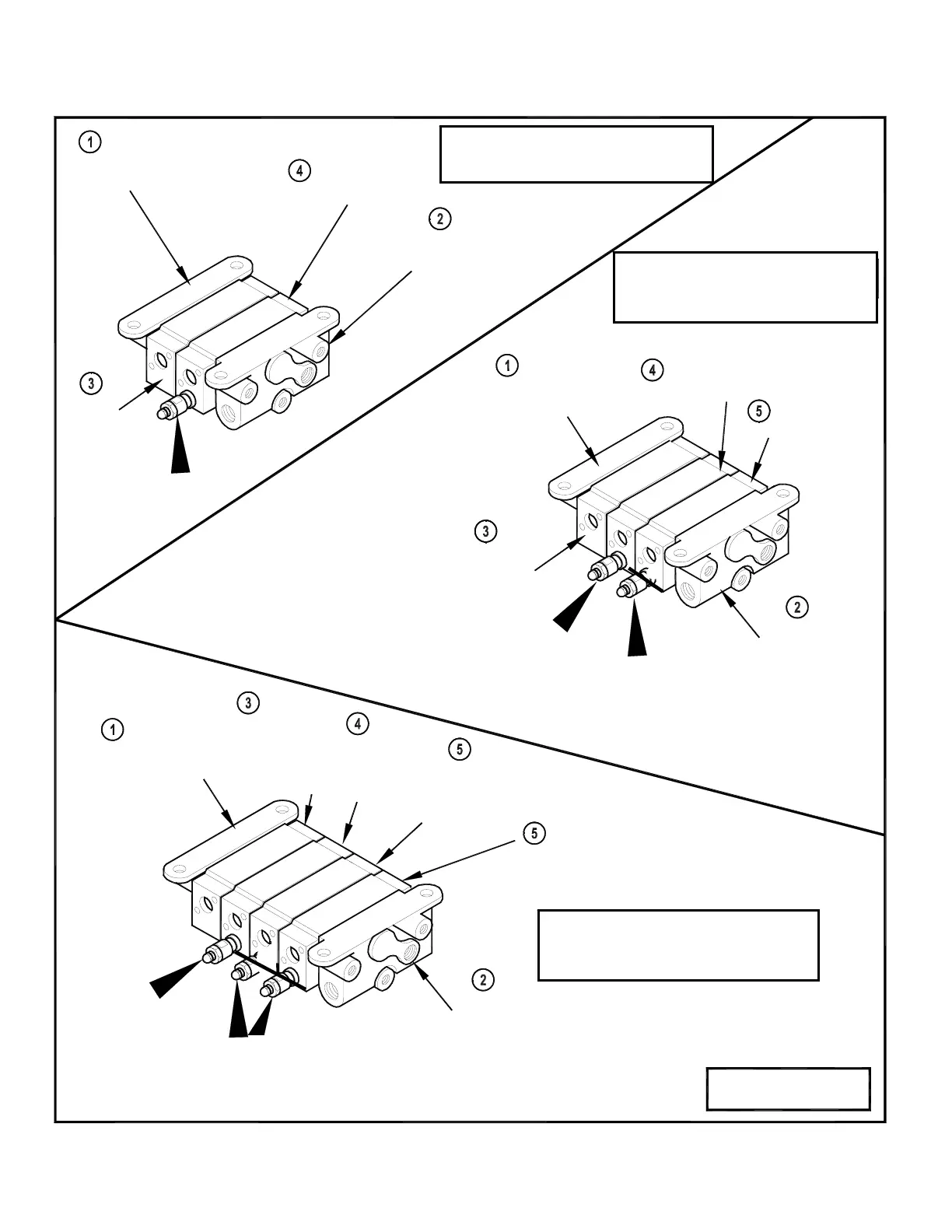

2-SECTION VALVE (031-6270-002)
STANDARD ARRANGEMENT
SLIDE
SECTION
031-5980-010
3-SECTION VALVE (031-6270-003)
ROLL BAR OR WINCH
WINCH OR
ROLL BAR
SECTION
031-6267
SLIDE
SECTION
031-5980-010
4-SECTION VALVE (031-6270-004)
WINCH OR REEVING AND ROLL
BAR
SLIDE
SECTION
031-5980-010
2-SECTION VALVE (031-6269-001)
STANDARD ARRANGEMENT
3-SECTION VALVE
(031-6269-003)
WINCH OR ROLL BAR
4-SECTION VALVE (031-6269-004)
WINCH, REEVING OR ROLL BAR
ISSUED FEBRUARY 2006
Printed in U.S.A.
©COPYRIGHT 2006, Heil Environmental
6.3
TAILGATE (SECONDARY) VALVE
031-6269-002, 003, 004
