Dräger X-am 2000 User Manual

7
For your safety
Strictly follow the Instructions for Use
Any use of the device requires full understanding and strict
observation of these instructions. The device is only to be
used for the purposes specified here.
Maintenance
The maintenance intervals and measures specified in the
Technical Handbook
1)
as well as the specifications in the
data sheets of the used DrägerSensors
®2)
must be
carefully observed.
Repair of the instrument may only be carried out by trained
service personnel.
Accessories
Only the accessories specified in the order list in the Tech-
nical Handbook
1)
may be used.
Safe coupling with electrical devices
Devices which are not mentioned in these Instructions for
Use or in the Technical Handbook
1)
can only be coupled
electronically after consultation with the manufacturers or
an expert.
Use in areas subject to explosion hazards
Devices or components for use in explosion-hazard areas
which have been tested and approved according to natio-
nal, European or international Explosion Protection Regu-
lations may be used only under the conditions explicitly
specified in the approval and with consideration of the
relevant legal regulations. The equipment or components
may not be modified in any manner. The use of faulty or
incomplete parts is forbidden. The appropriate regulations
must be observed at all times when carrying out repairs on
these devices or components.
Repair of the instrument may only be carried out by trained
service personnel according to Dräger Safety Service Pro-
cedure.
Safety symbols used in these Instructions for Use
These Instructions for Use use a number of warnings for
risks and hazards that might occur when using the device.
These warnings contain signal words, which will alert you
to the degree of hazard you may encounter. These signal
words and corresponding hazards are as follows:
____________
1) The Technical Handbook and Instructions for Use/data sheets for the
sensors used and the PC software CC-Vision for Dräger X-am 1700 and
2000 can be downloaded on the product page for the X-am 1700/2000:
www.draeger.com.
2) DrägerSensor
®
is a registered trademark of Dräger.
WARNING
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Intended use
Portable gas measuring device for the continuous moni-
toring of the concentration of several gases in the ambient
air in the working area and in explosion-hazard areas.
Dräger X-am 1700:
independent measurement of four gases.
Dräger X-am 2000, depending on the type of device:
independent measurement of one up to four gases.

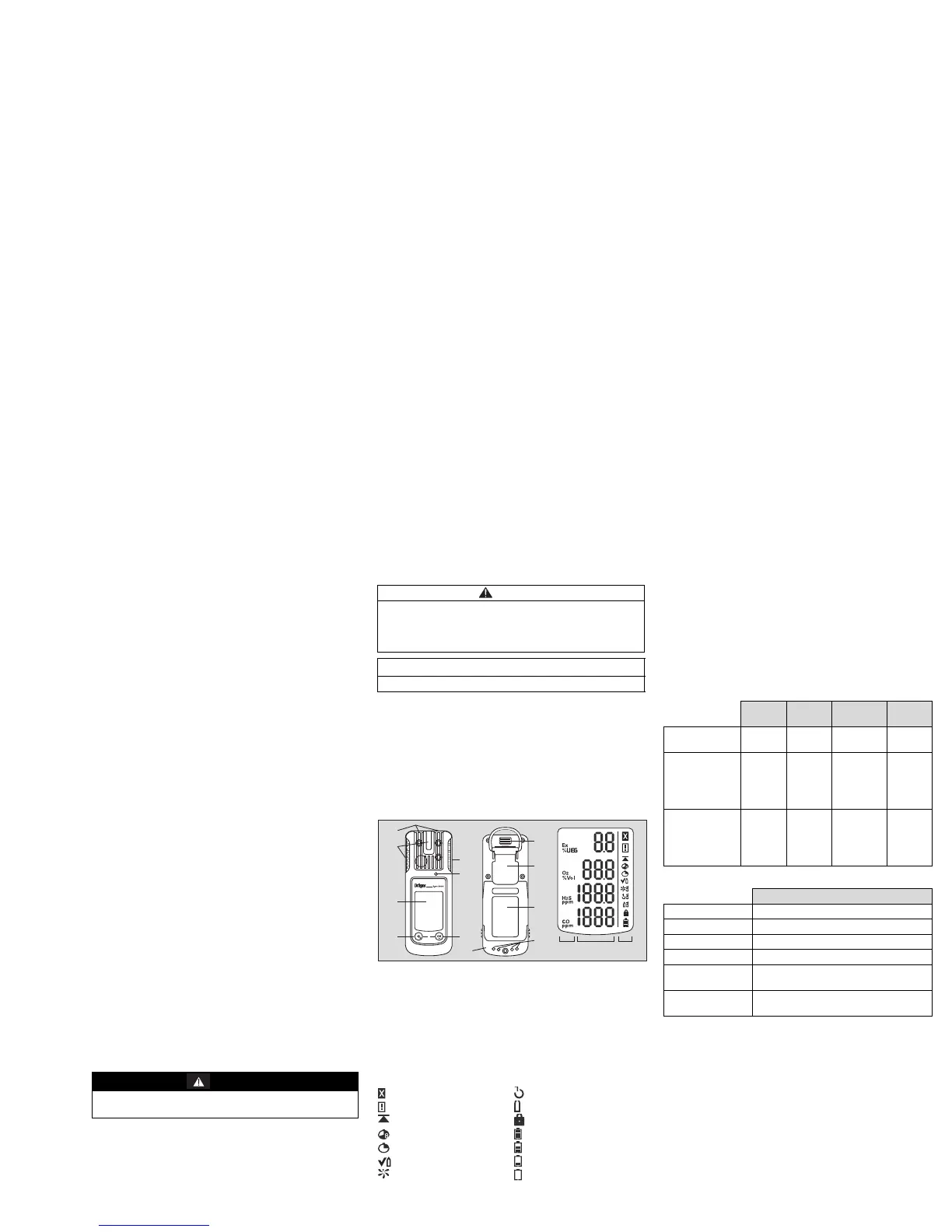

What is what
Special symbols:
CAUTION
Indicates a potentially hazardous situation which, if not
avoided, could result in physical injury or damage to the
product.
It may also be used to alert against unsafe practices.
NOTICE
Indicates additional information on how to use the device.
1 Gas entry 8 IR interface
2 Alarm LED 9 Fastening clip
3 Buzzer 10 Type plate
4[OK] key 11 Charging contacts
5 Power pack 12 Measured gas display
6[+] key 13 Measured value display
7 Display 14 Special symbols
Fault 1-key calibration
Warning Singel gas calibration
Display peak value Password required
Show TWA Battery 100 % full
Show STEL Battery 2/3 full
Bump test mode Battery 1/3 full
Fresh air calibration Battery empty
00123839_01_MUL039.eps
2
1
7
64
5
3
2
9
11
12 13 14
0
10
8
Configuration
To configure a device with standard configuration to meet
individual requirements, connect the device via the USB
infrared cable (order no. 83 17 409) or the E-Cal system
with a PC. The PC software "CC Vision" is used for confi-
guration.
– Changing the configuration: see the Technical
Handbook
1)
.
Standard gas configuration:
Standard device configuration
4)
:
Activating the device
Before using the device for the first time, insert the sup-
plied batteries or the NiMH power supply unit T4 (order no.
83 18 704), see the Chapter "Replacing the Batteries".The
Dräger X-am 2000 is ready for use.
Dräger X-am 1700 only
You also have to carry out the following activation
sequence:
____________
3) In the case of O
2
A1 is the lower alarm setpoint: alarm if the value is too low.
4) Deviating, customer-specific settings can be selected upon delivery. The
current settings can be checked and changed using the CC-Vision soft-
ware.
Ex
[%LEL]
O
2
[vol. %]
CO
[ppm]
H
2
SLC
[ppm]
Measuring
range
3)
0 to 100 0 to 25 0 to 2000 0 to 100
Alarm A1
3)
- setpoint
- can be
acknowledged
- self-latching
20
yes
no
19
2)
no
yes
30
yes
no
5
yes
no
Alarm A2
3)
- setpoint
- can be
acknowledged
- self-latching
40
no
yes
23
no
yes
60
no
yes
10
no
yes
Dräger X-am 1700 / X-am 2000
Bump test mode disable
Fresh air calibr. disable
Live sign enable
Disable
allowed
LEL factor
4)
(methane)
4.4
(4.4 vol. % corresponds to 100 %LEL)
Averaging time 15 minutes for STEL
8 hours for TWA
