Drobo 5D3 - Viewing Capacity Chart

Drobo 5D3 User Guide 90
device is available for data, used for data protection, reserved for expansion, and used
for overhead administration.
8.1.1 Viewing Capacity Chart
The capacity chart gives you a quick glance, and visual, of how your drive space is being
used on the Drobo 5D3.
To view the capacity chart:
1. In Drobo Dashboard on the All Drobos page, select the Drobo device whose capacity
chart you would like to view.
2. Click the Capacity option on the Navigation menu. The Capacity page for the Drobo
device opens.
3. If the capacity chart is not currently displayed, click the Capacity button to
open the Capacity page.

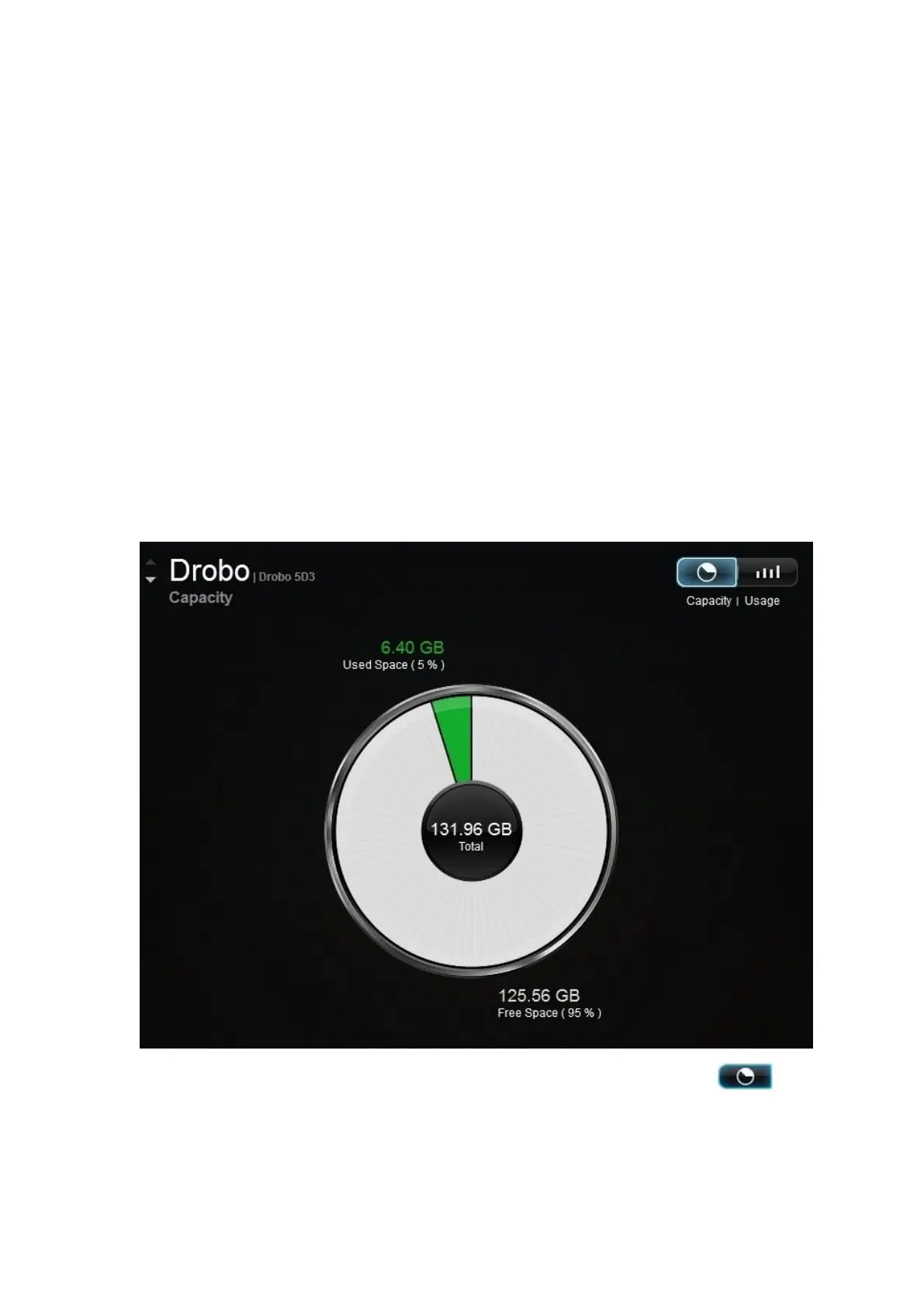

The capacity is displayed as follows:
