2.9.1 COMMUNICATION PORT USAGE
2.9.1.1 USB CONNECTION
NOTE: The DC supply must be connected to the module for configuration by PC.
NOTE: For further details of module configuration, refer to DSE Publication: 057-237
DSE335 Configuration Suite PC Software Manual.
The USB port is provided to give a simple means of connection between a PC and the controller.
Using the DSE Configuration Suite Software, the operator is then able to control the module, starting
or stopping the generator, selecting operating modes, etc.
Additionally, the various operating parameters (such as output volts, oil pressure, etc.) of the remote
generator are available to be viewed or changed.

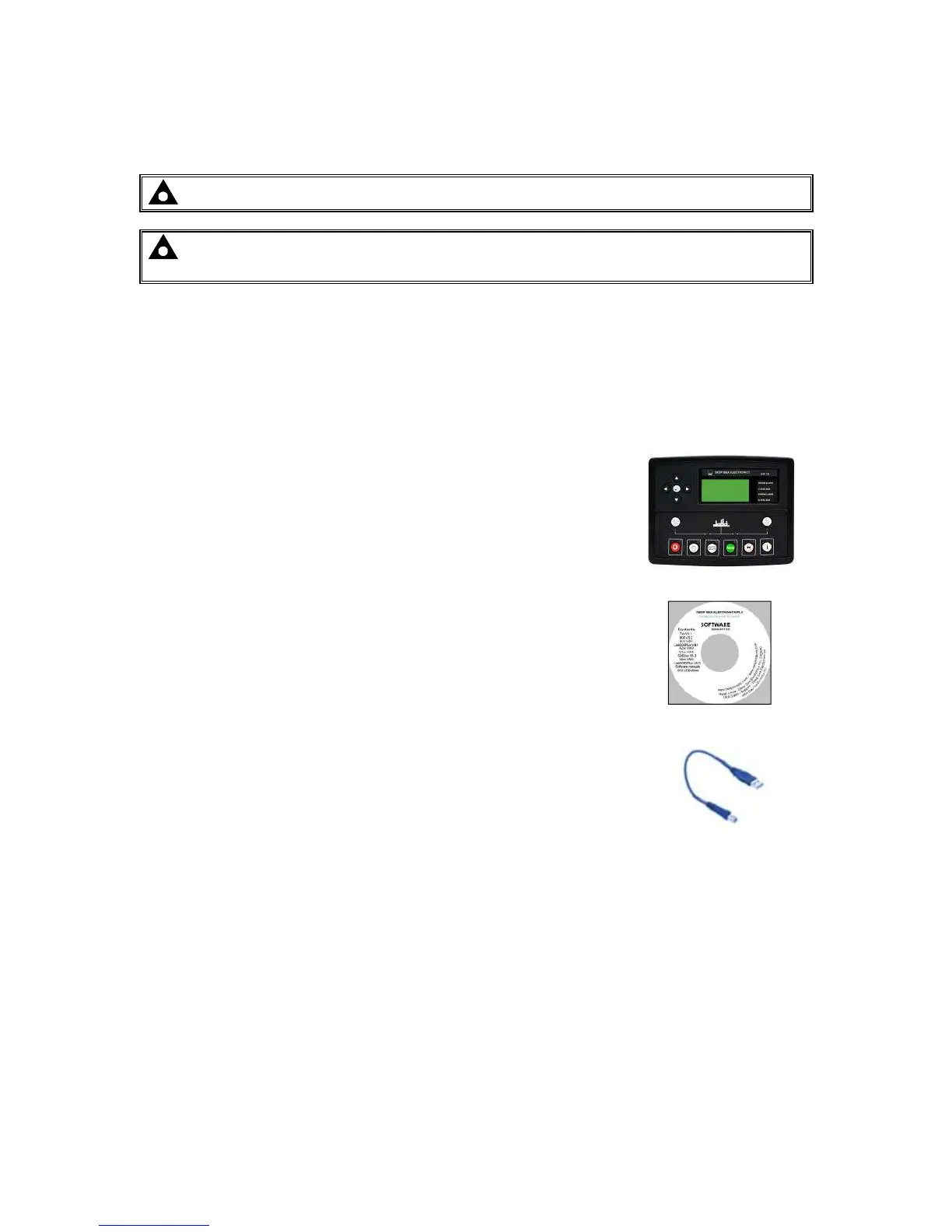

To connect a module to a PC by USB, the following items are required:
• DSE335 Controller
• DSE Configuration Suite PC Software
(Supplied on configuration suite software CD or available from
www.deepseaplc.com).
•
USB cable Type A to Type B.
(This is the same cable as often used between a PC and a USB
printer)
DSE stock this cable:
PC Configuration interface lead (USB type A – type B) DSE Part
No 016-125
