Installation
057-233 ISSUE: 1 Page 36 of 90
3.3 ALTERNATIVE TOPOLOGIES
NOTE: For further details of module configuration, refer to DSE Publication: 057-237
DSE335 Configuration Software Manual.
The controller is factory configured to connect to a 3 phase, 4 wire Star connected alternator. This
section details connections for alternative AC topologies. Ensure to configure the controller to suit the
required topology.

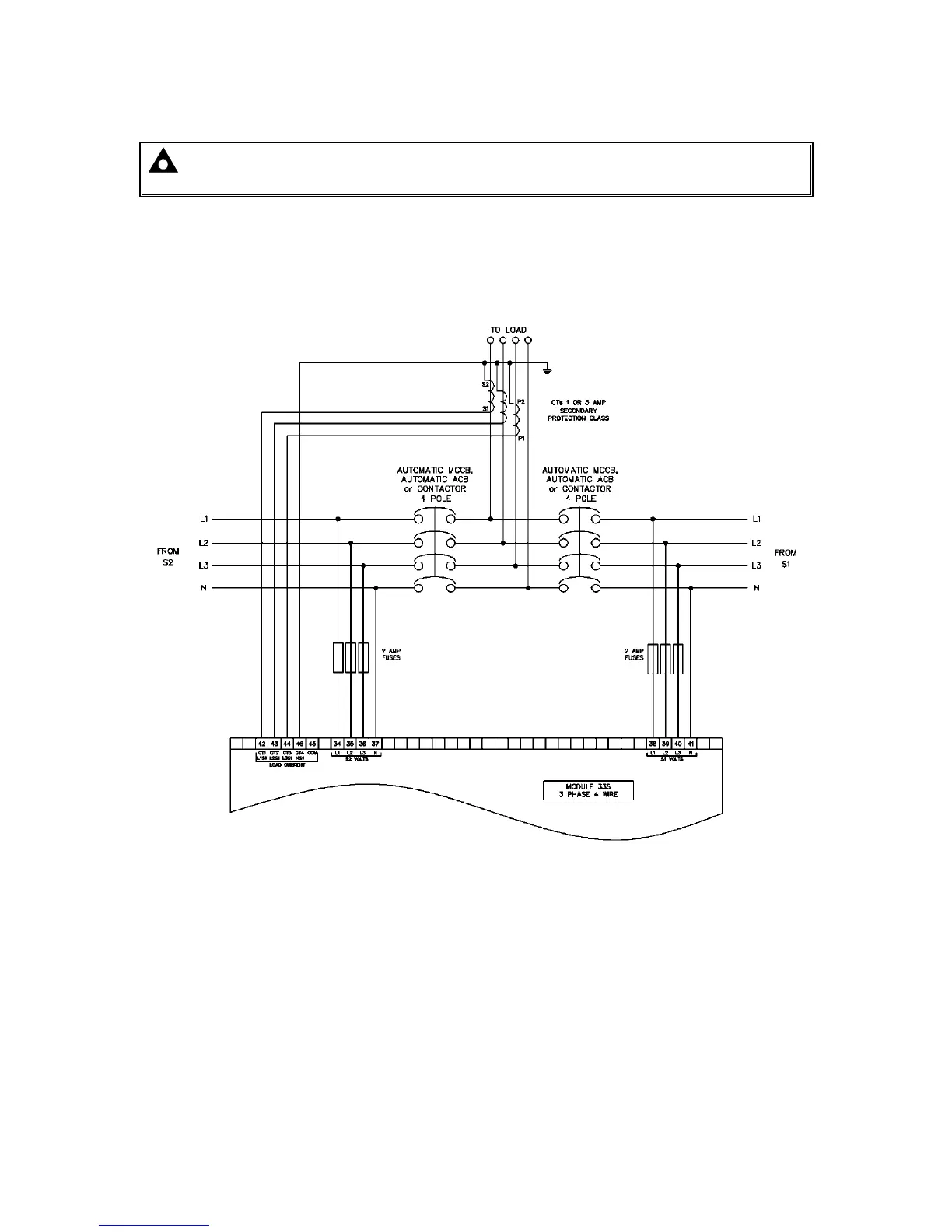

3.3.1 3 PHASE, 4 WIRE WITHOUT EARTH FAULT PROTECTION
