Description of Controls
Page 47 of 90 057-233 ISSUE: 1

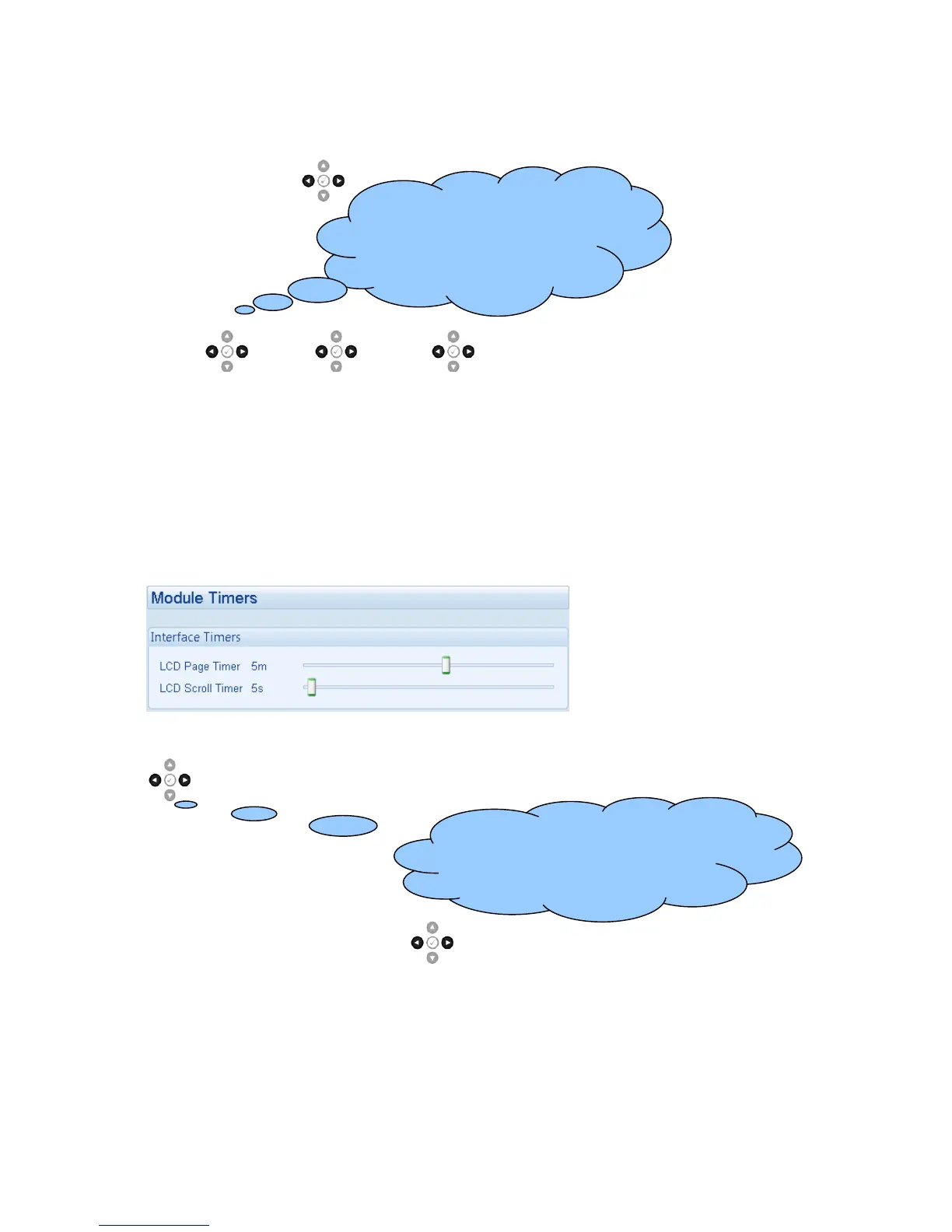

4.2 VIEWING THE INSTRUMENT PAGES
It is possible to scroll to display the different pages of information by repeatedly operating the Next /
Previous page buttons .
Example
Status
S1
S2
Further presses of the Next Page Button
returns the display to the Status page.
The complete order and contents of each information page are given in the following sections
Once selected the page remains on the LCD display until the user selects a different page, or after an
extended period of inactivity (LCD Page Timer), the module reverts to the status display.
If no buttons are pressed upon entering an instrumentation page, the instruments are displayed
automatically subject to the setting of the LCD Scroll Timer.
The LCD Page and LCD Scroll timers are configurable using the DSE Configuration Suite Software or
by using the Front Panel Editor.
The screenshot shows the factory
settings for the timers, taken from
the DSE Configuration Suite
Software.
Alternatively, to scroll manually through all instruments on the currently selected page, press the scroll
buttons. The ‘autoscroll’ is disabled.
To re-enable ‘autoscroll’ press the scroll buttons to scroll to the ‘title’ of the instrumentation
page (ie S1). A short time later (the duration of the LCD Scroll Timer), the instrumentation display
begins to autoscroll.
When scrolling manually, the display automatically returns to the Status page if no buttons are
pressed for the duration of the configurable LCD Page Timer.
If an alarm becomes active while viewing the status page, the display shows the Alarms page to draw
the operator’s attention to the alarm condition.
If you want to view one of the
instruments towards the end of the list,
it may be quicker to scroll up through
the instruments rather than down!
If you want to view one of the
instrument pages towards the
end of the list, it may be quicker
to scroll left through the pages
rather than right!
