Specifications
057-233 ISSUE: 1 Page 20 of 90

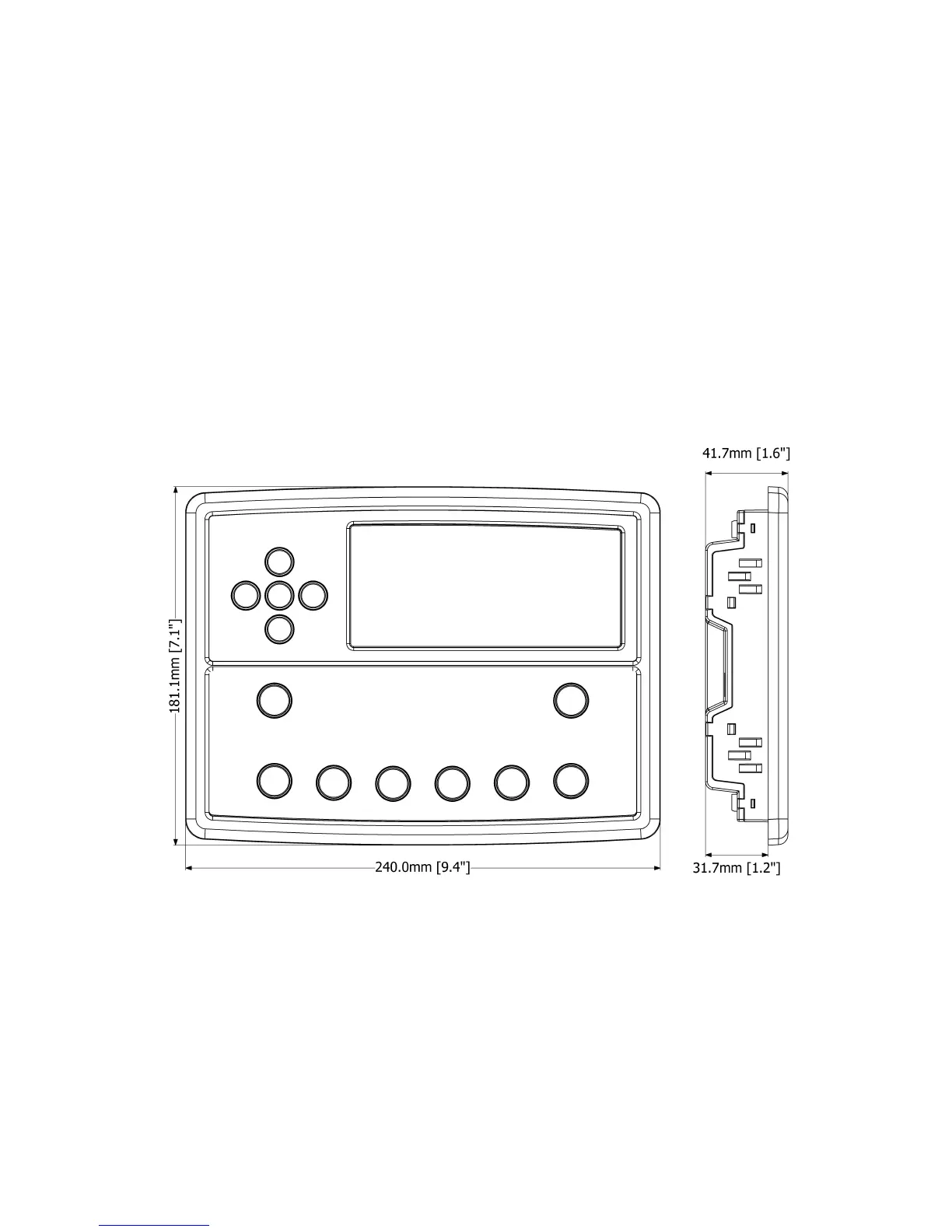

2.11 DIMENSIONS AND MOUNTING
2.11.1 DIMENSIONS
240.0 mm x 181.1 mm x 41.7 mm
(9.4 ” x 7.1 ” x 1.6 ”)
2.11.2 PANEL CUTOUT
220 mm x 160 mm
(8.7 ” x 6.3 ”)
2.11.3 WEIGHT
0.7 kg
(1.4 lb)
