Specifications
Page 9 of 90 057-233 ISSUE: 1

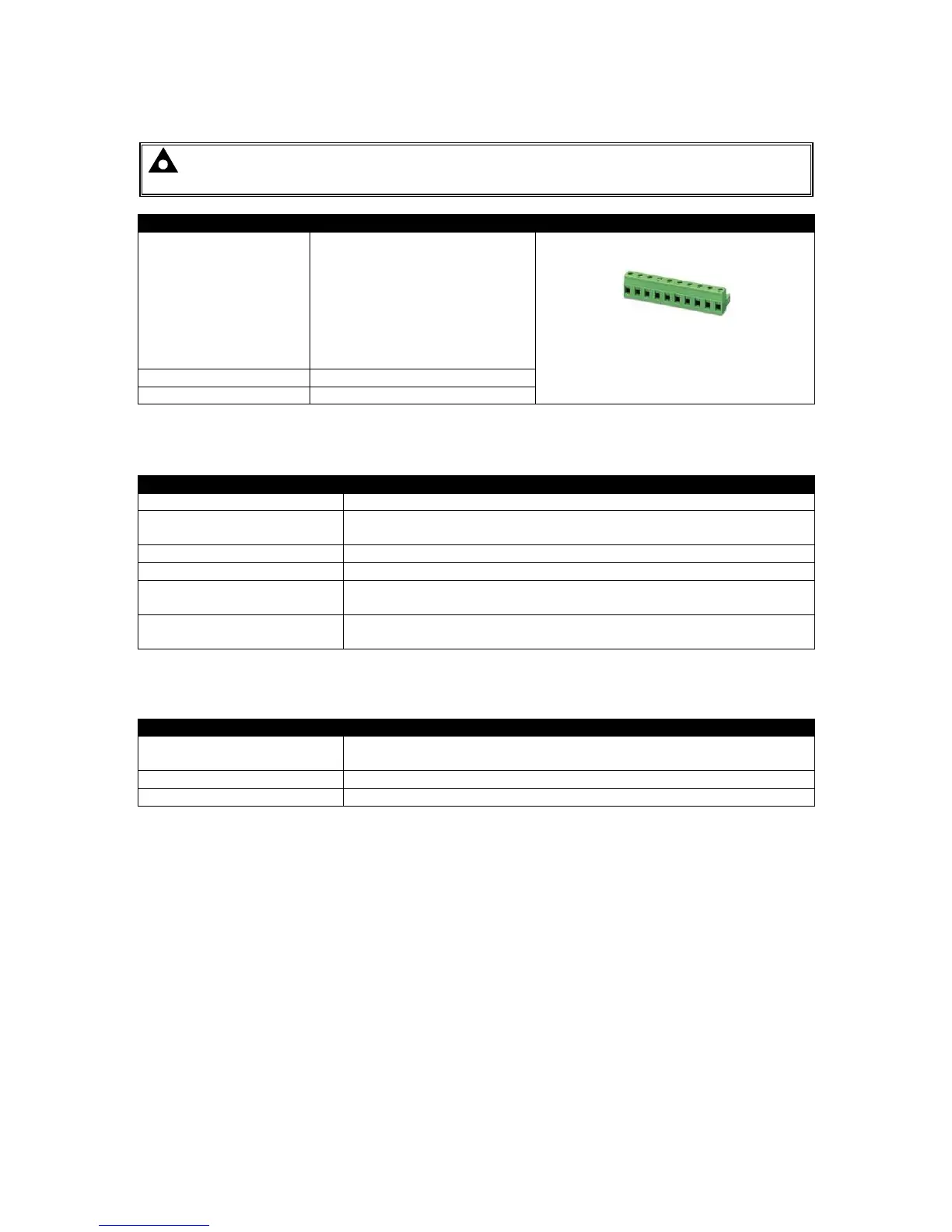

2.3 TERMINAL SPECIFICATION
NOTE: For purchasing additional connector plugs from DSE, see the section entitled
Maintenance, Spares, Repair and Servicing elsewhere in this document.
Connection Type
Two part connector.
• Male part fitted to
module
• Female part supplied in
module packing case -
Screw terminal, rising
clamp, no internal
spring.
Example showing cable entry and screw
terminals of a 10 way connector
Minimum Cable Size 0.5 mm² (AWG 24)
Maximum Cable Size 2.5 mm² (AWG 10)
2.4 POWER SUPPLY REQUIREMENTS
Minimum supply voltage 8V continuous
Cranking dropouts
Able to survive 0V for 50mS providing the supply was at least 10V
before the dropout and recovers to 5V afterwards.
Maximum supply voltage 35V continuous (60V protection)
Reverse polarity protection -35V continuous
Maximum operating current
360mA at 24V
480mA at 12V
Maximum standby current
96mA at 24V
126mA at 12V
2.4.1 MODULE SUPPLY INSTRUMENTATION DISPLAY
Range
0 V to 70 V DC
Maximum continuous operating voltage of 35 V DC
Resolution 0.1 V
Accuracy 1% full scale (±0.7 V)
