4.5 OPERATION
NOTE: The following descriptions detail the sequences followed by a module containing
the standard ‘factory configuration’. Always refer to the configuration source for the exact
sequences and timers observed by any particular module in the field.
4.6 QUICKSTART GUIDE
This section provides a quick start guide to the module’s operation.
4.6.1 STARTING S2
NOTE: This only applies when S2 is configured as a generator supply.

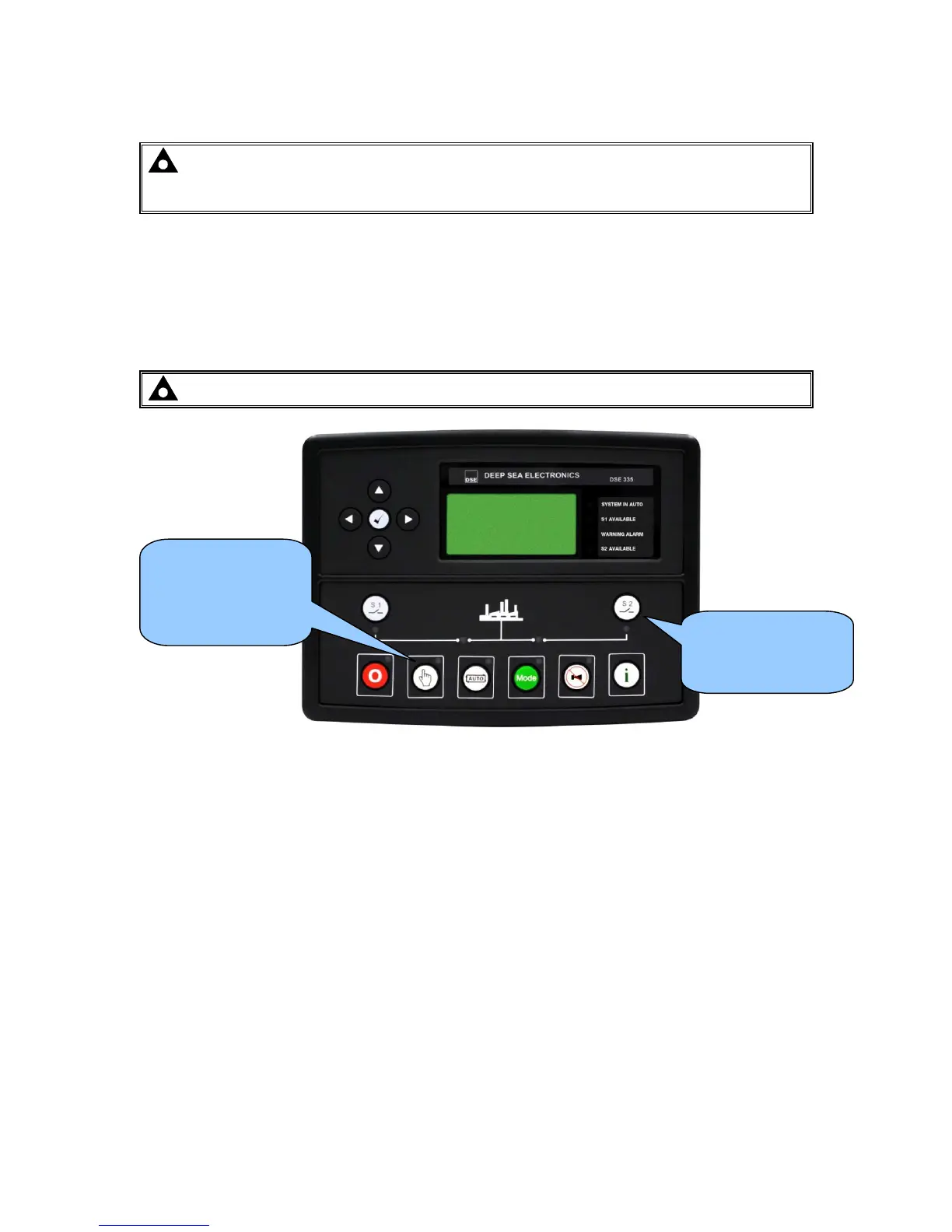

First, select manual
mode, this gives the
start request to the
external generator
control…
…when S2 becomes
available, press the
S2 Breaker button to
To Next Page
