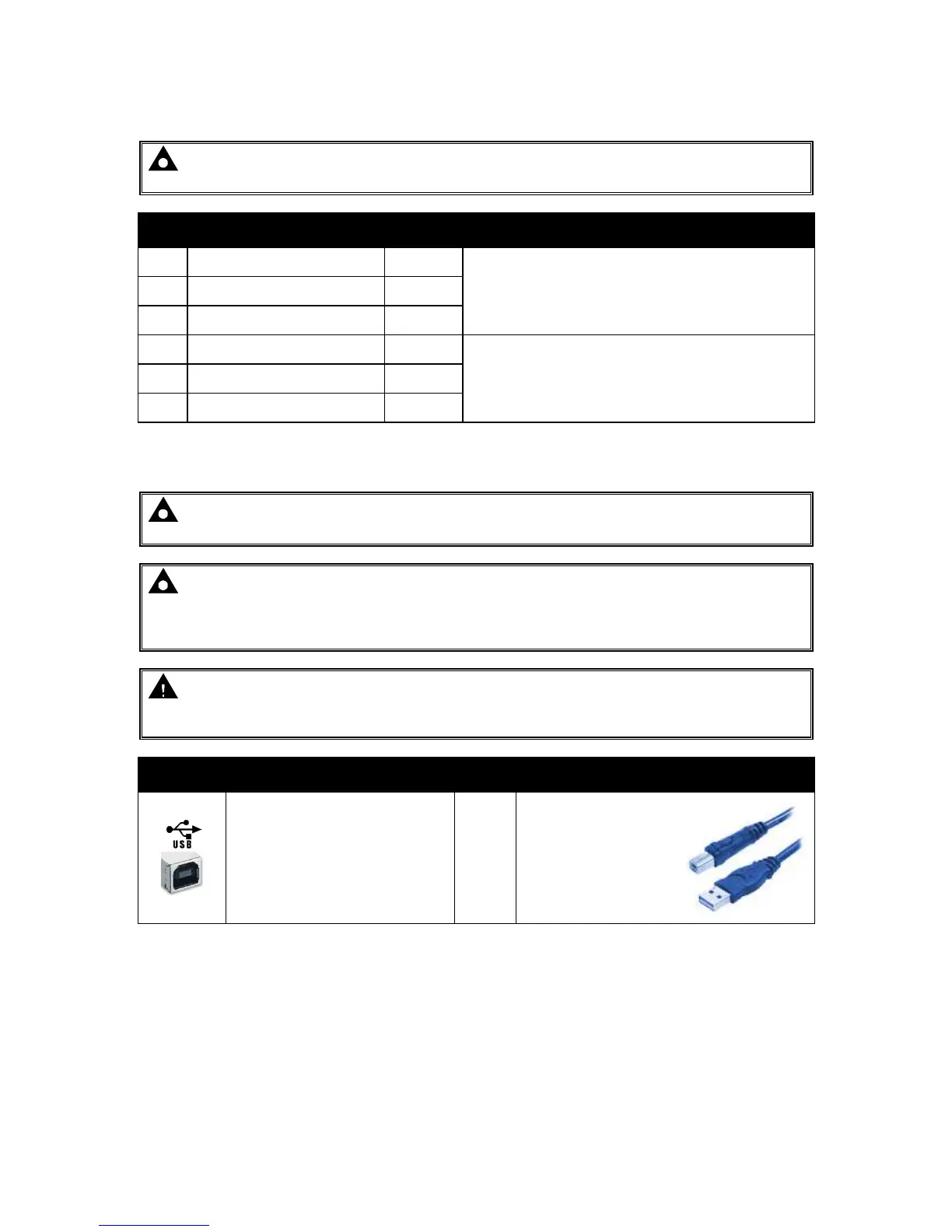

3.1.8 CONFIGURABLE VOLT-FREE CHANGEOVER OUTPUTS C & D
NOTE: For further details of module configuration, refer to DSE Publication: 057-237
DSE335 Configuration Software Manual.
Pin
No.
Description
Cable
Size
Notes
48 Output C Normally Open
1.0 mm²
AWG 18
Volts free relay change-over relay user configured (8A
resistive
at 250V AC rated)
49 Output C Common
1.0 mm²
AWG 18
50 Output C Normally Closed
1.0 mm²
AWG 18
51 Output D Normally Open
1.0 mm²
AWG 18
Volts free relay change-over relay user configured (8A
resistive
at 250V AC rated)
52 Output D Common
1.0 mm²
AWG 18
53 Output D Normally Closed
1.0 mm²
AWG 18
3.1.9 PC CONFIGURATION INTERFACE CONNECTOR
NOTE: For further details of module configuration, refer to DSE Publication: 057-237
DSE335 Configuration Software Manual.
NOTE: The USB connection cable between the PC and the module must not be extended
beyond 6 m (20 feet). For distances over 6 m, it is possible to use a third party USB extender.
Typically, they extend USB up to 50 m (55 yards). The supply and support of this type of
equipment is outside the scope of Deep Sea Electronics PLC.
CAUTION!: Care must be taken not to overload the PCs USB system by connecting more
than the recommended number of USB devices to the PC. For further information, consult the
PC supplier.
Description
Cable
Size
Notes
Socket for connection to PC with DSE
Configuration Suite Software
0.5 mm²
AWG 20
This is a standard USB
type A to type B connector.
