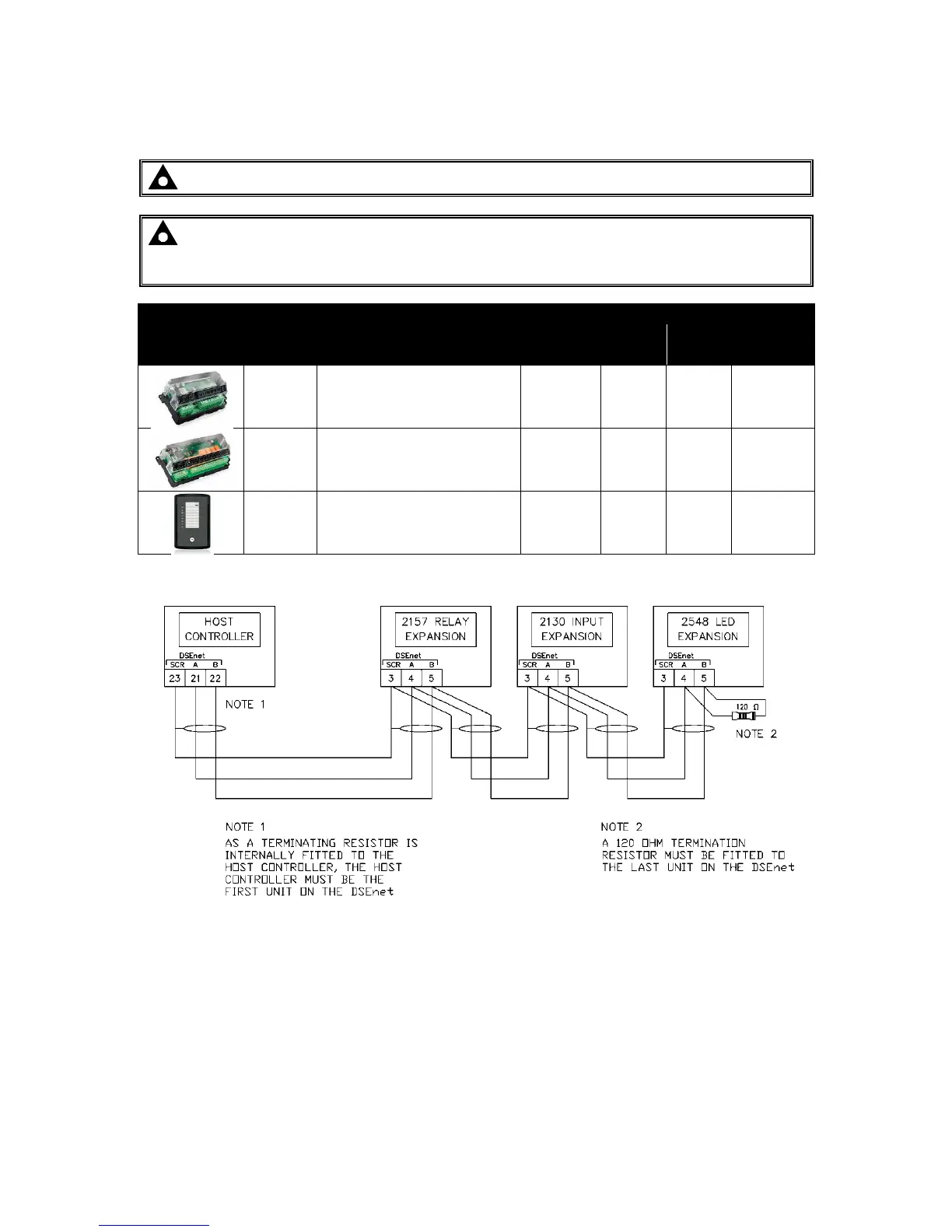

9.4 DSENET EXPANSION MODULES
NOTE: A maximum of six (6) expansion modules can be connected to the DSENet®.
NOTE: DSENet® utilises an RS485 connection. Using Belden 9841 (or equivalent) cable
allows for the expansion cable to be extended to a maximum of 1.2 km.
DSE Stock and supply Belden 9841 cable. DSE Part Number 016-030.
Item
Description
DSE Part Numbers
Max No.
supported
Model
order
number
Sales
literature
Operator
manual
Installation
Instructions
2
Model DSE2130 input module provides
additional analogue and digital inputs for
use with the controller.
2130-001-00 055-060 057-082 053-033
2
Model DSE2157 expansion relay module
provides eight additional voltage free
relays for use with the controller
2157-001-00 055-061 057-083 053-034
2
Model DSE2548 expansion LED module
provides additional LED indications,
internal sounder and remote lamp
test/alarm mute for use with the
controller.
2548-001-00 055-062 057-084 053-032
