DSE 335 - 4 DESCRIPTION OF CONTROLS; 4.4 USER CONFIGURABLE INDICATORS

Description of Controls
057-233 ISSUE: 1 Page 58 of 90
4.4 USER CONFIGURABLE INDICATORS
These LEDs can be configured by the user to indicate any one of
100+ different functions
based
around the following:
• Indications - Monitoring of a digital input and indicating associated functioning user’s equipment -
Such as Battery Charger On or Louvres Open, etc.
• Warning & Electrical Trips - Specific indication of a particular warning or electrical trip condition,
backed up by LCD indication - Such as S2 Under Voltage Trip, Transformer Over Temperature, etc.
• Status Indications - Indication of specific functions or sequences derived from the modules
operating state - Such as, Panel Locked, S2 Available, etc.

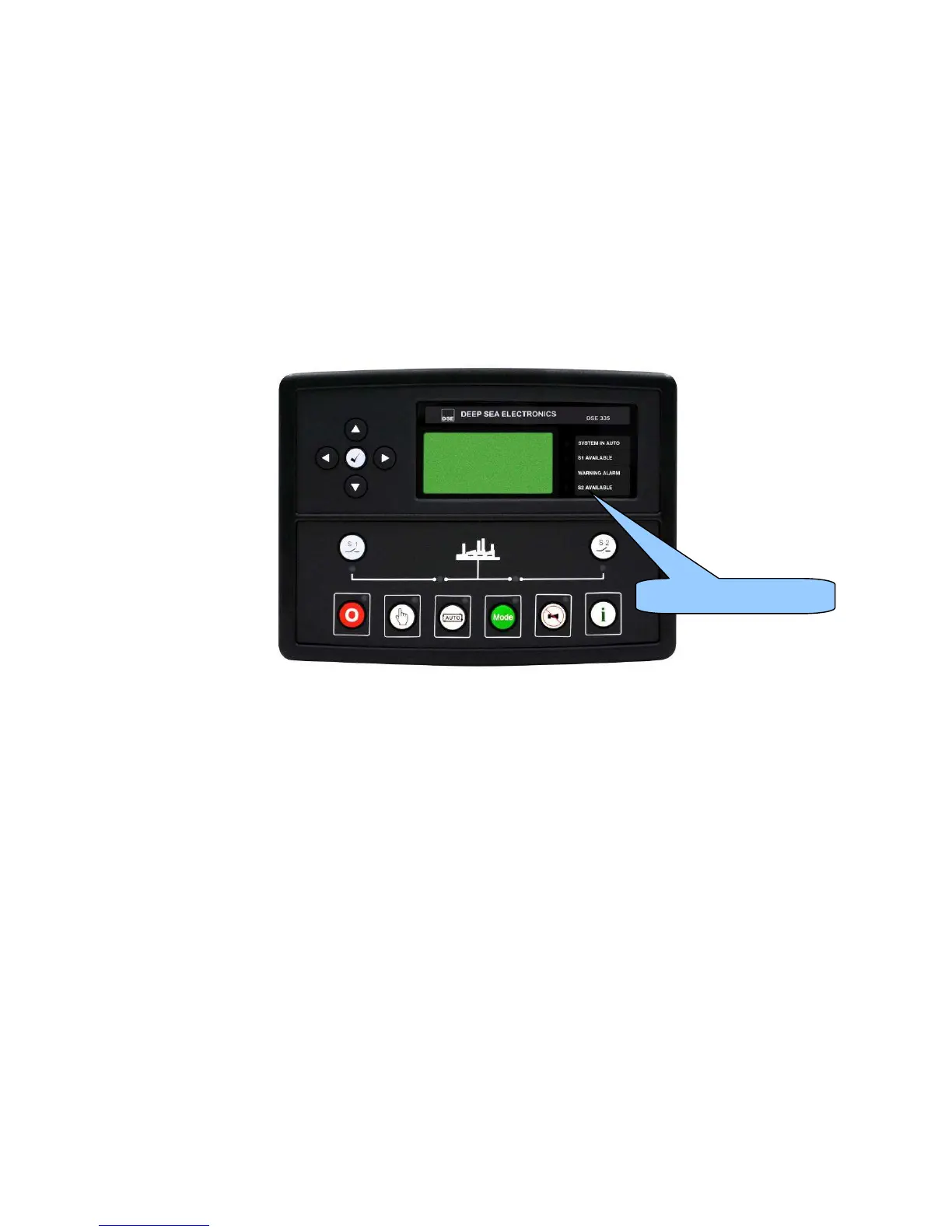

User configurable LEDs
