DSE 560 - PROTECTIONS

DSE Model 560 Automatic Start Engine Management and Instrumentation System Operators Manual
560 OPERATING MANUAL ISSUE 5 4/4/02 MR
10
2. PROTECTIONS

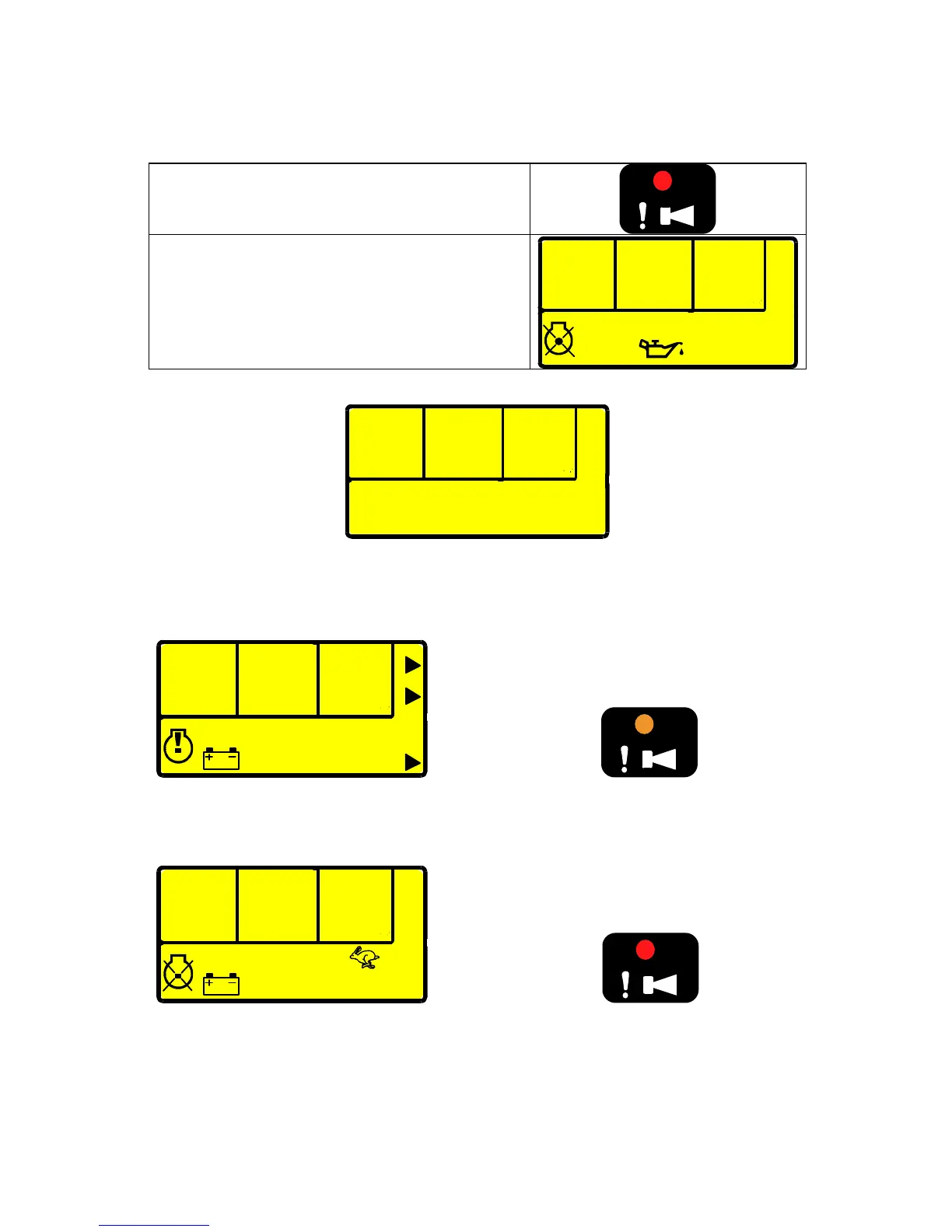

The module will indicate that an alarm has occurred in several ways;
The “Common alarm” LED will illuminate
(Warning = Amber, Shutdown = Red Flashing)
The LCD display will display the appropriate alarm icon.
PSI
0.0 0.0
BAR
If no alarms are present the LCD will extinguish any alarm icons.
Hz
RPM
51.0
1530
In the event of a warning alarm the LCD will display the appropriate icon. If a shutdown then occurs
the module will display the appropriate icon.
The original warning alarm icon will remain displayed.
Example:-
PSI
0.8 11.0
BAR
Charge Fail Warning
Amber LED, Charge Fail and Warning alarm Icon all displayed steady.
Followed by….
Hz
RPM
0.0
0
Over-speed shutdown
Red LED, Over-speed and Shutdown alarm Icon all displayed flashing. The original warning will
remain displayed as long at the triggering conditions remain. Any subsequent warnings or
shutdowns which occur will be displayed steady, therefore only the first-up shutdown will appear
flashing.
