DSE 560 - APPENDIX; Sender Wiring Recommendations

DSE Model 560 Automatic Start Engine Management and Instrumentation System Operators Manual
560 OPERATING MANUAL ISSUE 5 4/4/02 MR 33
12. APPENDIX

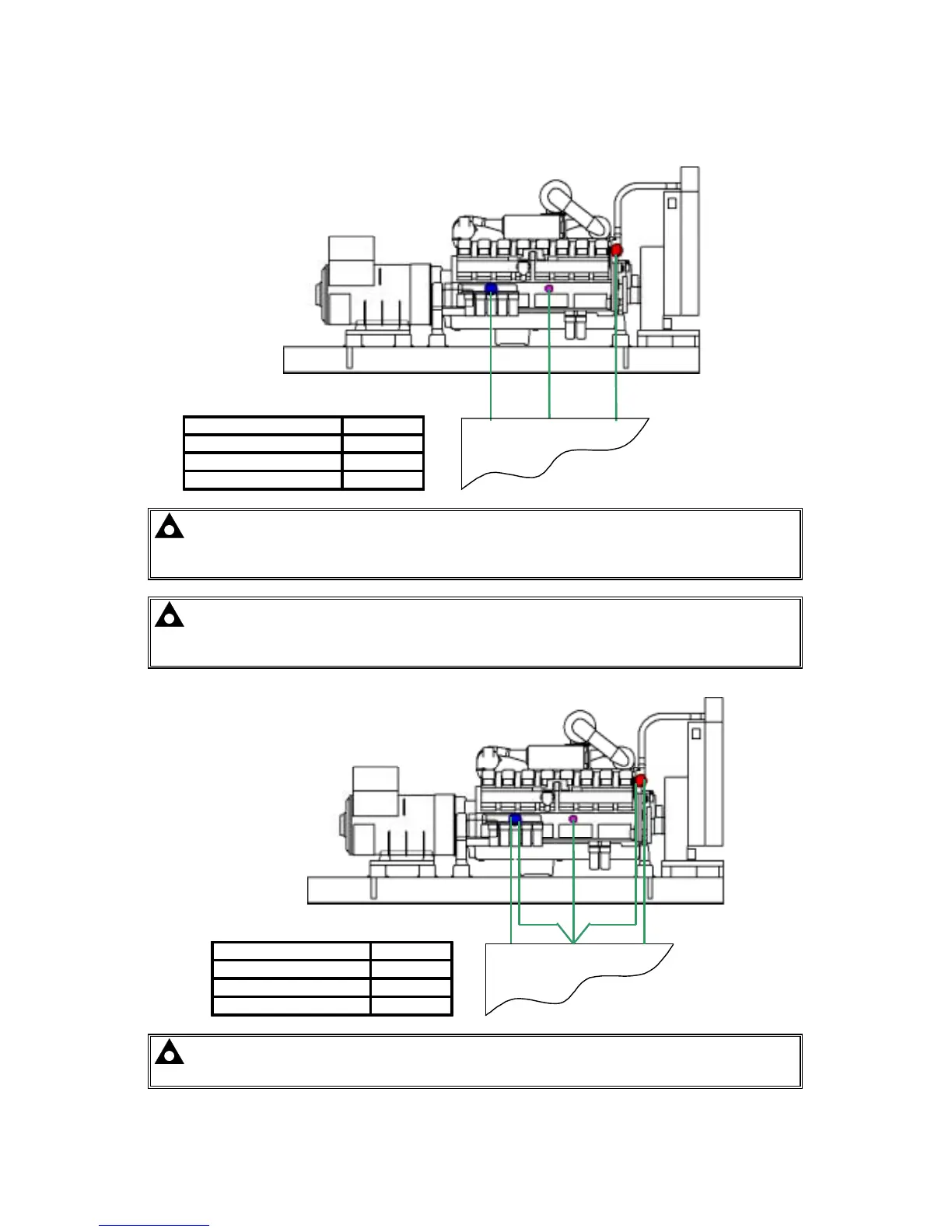

12.1 SENDER WIRING RECOMMENDATIONS
55x / 560
module
Connection name Terminal
Oil pressure 22
Coolant temperature 23
Sender common 24
22 24 23
Using Earth return (single wire) senders
NOTE:- . It is important that terminal 24 ( sender common ) is soundly connected to an
earth point on the ENGINE BLOCK, not within the control panel, and must be a sound
electrical connection to the sender bodies.
NOTE:- . If you use PTFE insulating tape on the sender thread when using earth return
senders, ensure you do not insulate the entire thread as this will prevent the sender body
from being earthed via the engine block.
Using insulated return (two wire) senders
55x / 560
module
22 24 23
Connection name Terminal
Oil pressure 22
Coolant temperature 23
Sender common 24
NOTE:- . It is important that terminal 24 ( sender common ) is soundly connected to an
earth point on the ENGINE BLOCK, not within the control panel .
