DSE Model 560 Automatic Start Engine Management and Instrumentation System Operators Manual
560 OPERATING MANUAL ISSUE 5 4/4/02 MR 19
4. INSTALLATION INSTRUCTIONS
The model DSE 560 Module has been designed for front panel mounting. Fixing is by 4 spring
loaded clips for easy assembly.

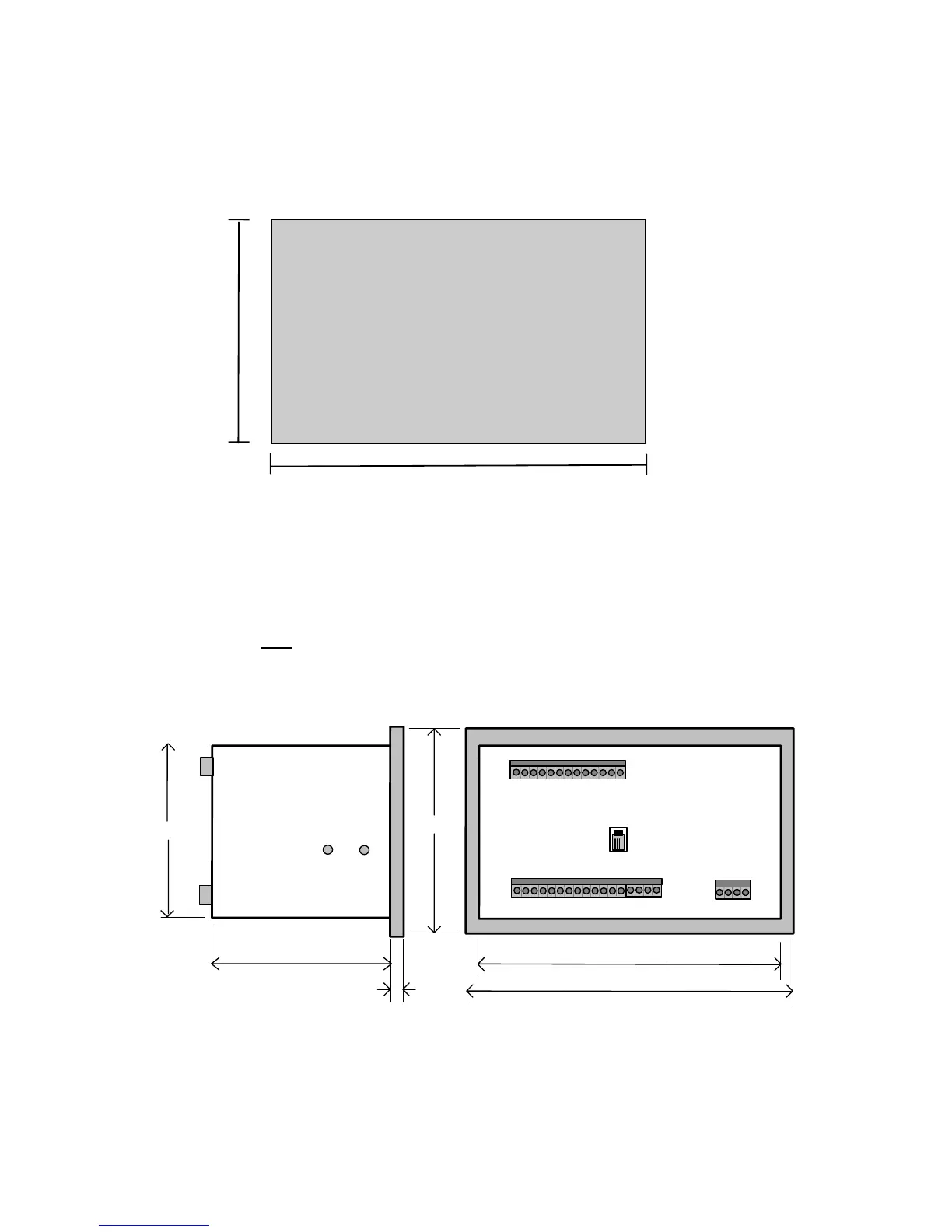

4.1 PANEL CUT-OUT
138.00mm
185.00mm
FIG 3
In conditions of excessive vibration the module should be mounted on suitable anti-vibration
mountings.
4.2 COOLING
The module has been designed to operate over a wide temperature range -30 to +70º C. However
allowances should be made for the temperature rise within the control panel enclosure. Care
should be taken NOT to mount possible heat sources near the module unless adequate ventilation
is provided. The relative humidity inside the control panel enclosure should not exceed 95%.
4.3 UNIT DIMENSIONS
All dimensions in mm.
144.0mm
137mm
184.0mm
110.0mm
7.5mm
Panel Cut-out:138mmx185mm
192.0mm
:
CE
FIG 4
