DSE Model 560 Automatic Start Engine Management and Instrumentation System Operators Manual
560 OPERATING MANUAL ISSUE 5 4/4/02 MR
34
12.2 PC INTERFACE MODULE 808
The 560 module can be calibrated by using PC with Interface Module 808 .
The PC interface 808 kit comprises the following:-
• 808 Interface Module
• 25 to 9 way adapter
• FCC 68 (4 Pin) Connecting Lead
• Floppy disc or CD with configuration software
12.3 OUTPUT EXPANSION
There are several methods of output expansion available for the 560 module:-

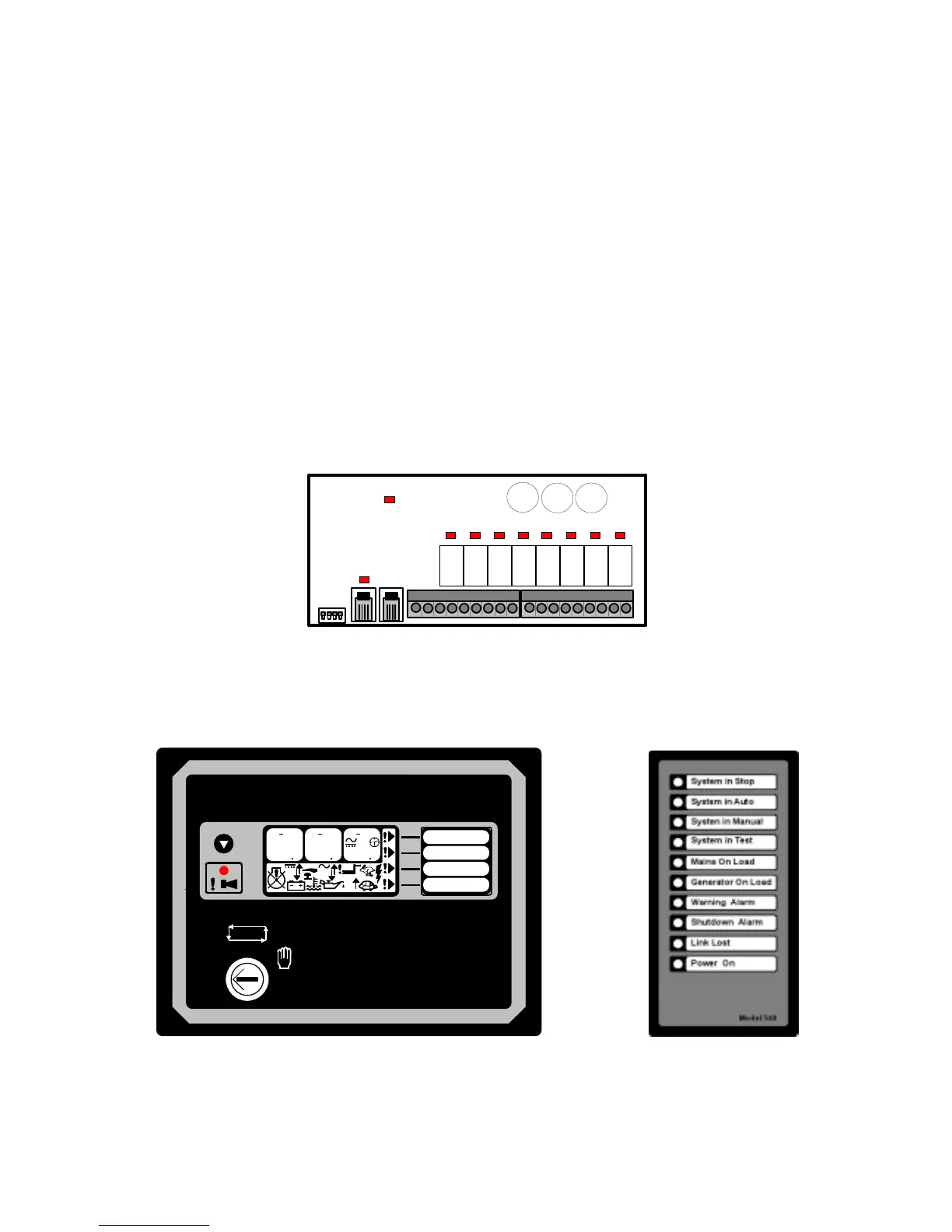

12.3.1 RELAY OUTPUT EXPANSION (157)
An expansion module is available, which connects to the configuration socket, and enables the 560
to use eight additional relays, providing Volt-free contacts for customer connection.
LINK LOST LED
POWER ON LED
RELAY ACTIVE LED'S
FUNCTION
SELECTOR
Refer to technical data sheet on the 157 relay module for further details.
12.3.2 LED OUTPUT EXPANSION (548)
An expansion module is available, which connects to the configuration socket, and enables the 560
to use eight additional LED’s, providing remote LED’s indication up to 50 metres away.
O
AUTO
o
F
o
CRPMPSI
88 88 88 88 88 88
AV
L3
BAR
L1 L2 L2 N L1N L3 N
Hz
A
V
V
Deep Sea Electronics plc
Model 560
Refer to technical data sheet on the 548 LED module for further details.
It is possible to use a mix of 157 and 548 modules to give both relay and LED expansion if required
(Please refer to our Technical Support department for details.).
