DSE 560 - ICONS AND LCD IDENTIFICATION; Icon Descriptions

DSE Model 560 Automatic Start Engine Management and Instrumentation System Operators Manual
560 OPERATING MANUAL ISSUE 5 4/4/02 MR 31
11. ICONS AND LCD INDENTIFICATION

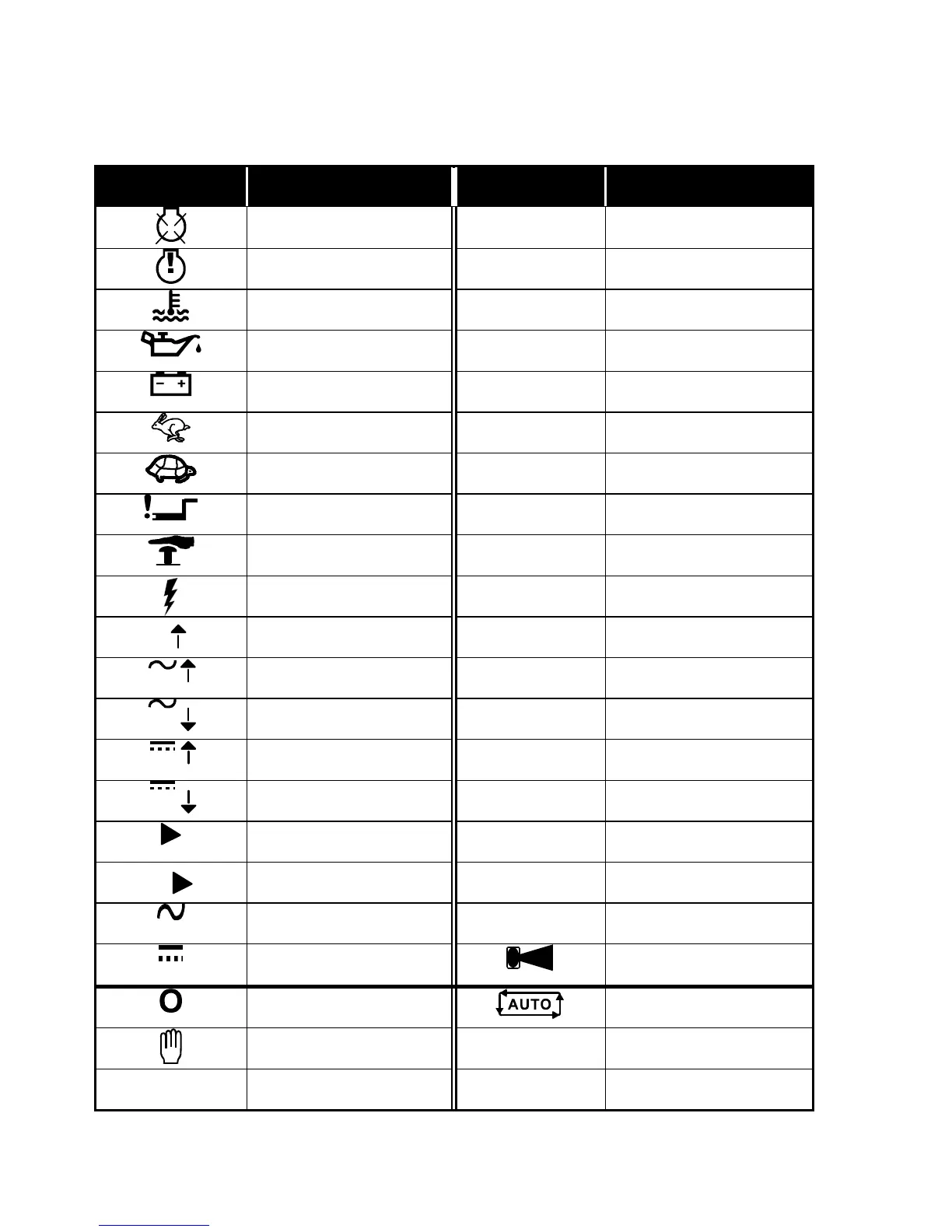

11.1 ICON DESCRIPTIONS
Display Symbol Description Display Symbol Description
Shutdown Alarm
L1- L2
Phase - Phase
Warning Alarm
L2- L3
Phase - Phase
High Coolant Temperature
L3- L1
Phase - Phase
Low Oil Pressure
L1- N
Phase - Neutral
Charge Fail
L2- N
Phase - Neutral
Over-speed
L3- N
Phase -Neutral
Under-speed
BAR
Pressure
Fail to start (Over-crank)
Hz
Frequency
Emergency Stop
o
F
Temperature
Electrical Trip
PSI
Pressure
A
High Current Warning
o
C
Temperature
V
Over Voltage (AC)
RPM
Speed
V
Under Voltage (AC)
L1
Phase
V
Over Voltage (DC)
L2
Phase
V
Under Voltage (DC)
L3
Phase
Auxiliary Indication
V
Voltage
!
!!
!
Auxiliary Alarm (Warning or
Shutdown)
A
Amperes
AC
¾
Hours Run
DC Common Alarm
Stop/Reset Auto
Manual
I
Start (If fitted)
KPA
KPa Oil Pressure Units
