2009 DURATECH TUB GRINDER OPERATING INSTRUCTIONS
Supplement Section 6: Control Panel
The control panel for the 2009EL electric tub grinder is
located on the right hand side of the machine. Controls on
the panel include; engine start, engine stop, emergency kill
switch, throttle, tub controls, conveyor on/off, conveyor
positioning, rotor engage button, rotor disengage button,
tub governor, tub tilt, grinding hours and job hours reset
button.
The top control panel includes a start/stop button and a programming pad for each electric
motor.
Radio remote operates the same as in the main part of this operator’s manual except there
is no remote stop for this operation.

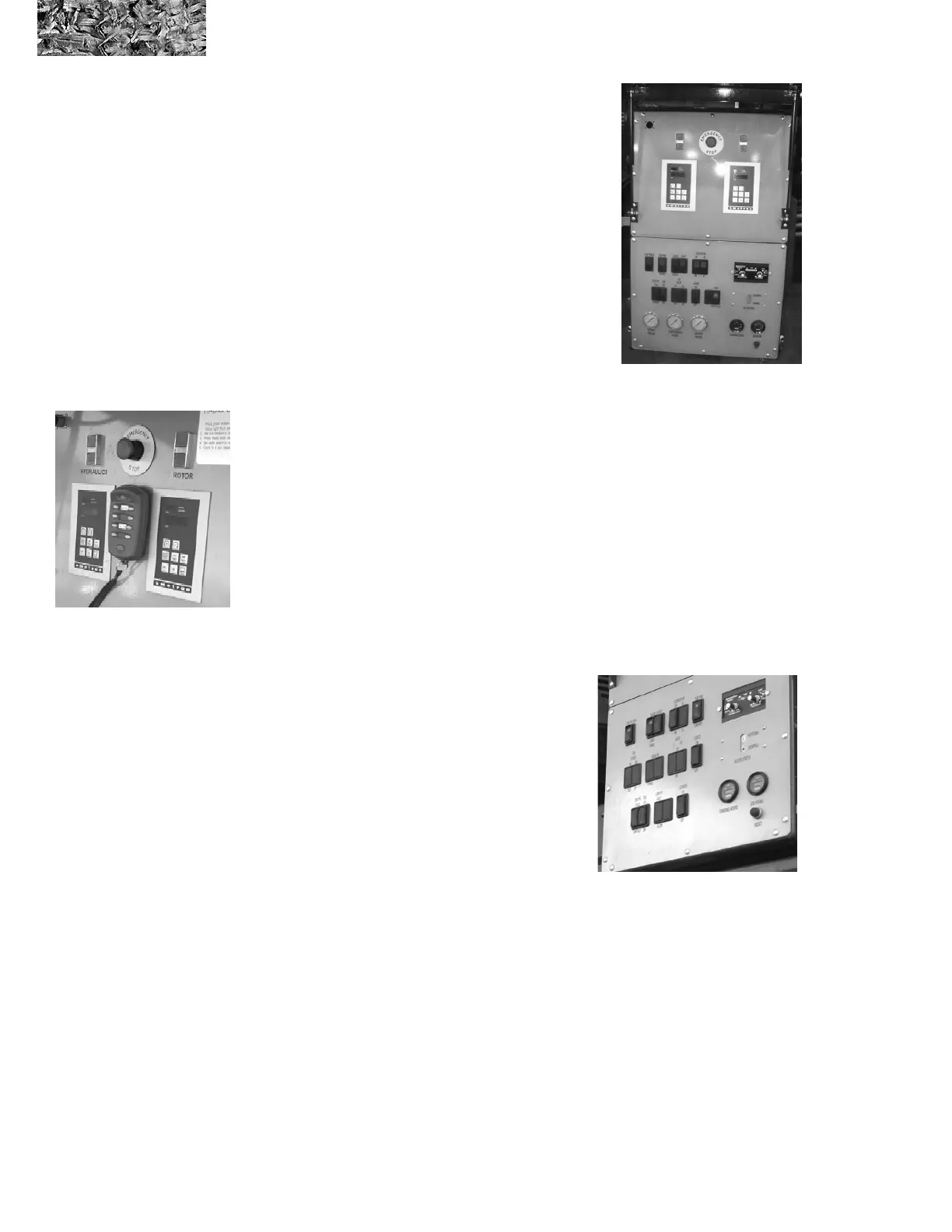

Top Control Panel
Bottom Control Panel
Bottom control panel operates the same as described in the
main part of this manual.
( REV. 02-11 )
