3.16 Operating the grinder using the remote radio option
Using the Omnex Origa remote
radio transmitter
The Remote/Local switch located on the control panel will
switch from manual to remote control. Switch to remote
when remote control is desired.
The transmitter will stop the engine, start, stop and reverse
the tub, and raise and lower the conveyor.
The yellow LED indicator is located on the upper right
hand side of the radio transmitter. This LED indicates that
the controller is powered up and transmitting. Light may
be solid or ashing depending on mode. During normal
operation this LED is ashing.
The red LED indicator is located on the upper left hand
side of the radio transmitter. This LED ashes slowly to
indicate the transmitter has less than twenty percent of
battery capacity remaining.
When both the red and yellow LEDs are on, the transmitter
is in conguration/program mode.
Mode of operation
The Omnex Origa system has several modes of operation. The mode preset for DuraTech Industries is:
1. The Power ON (green) button powers up the transmitter. Output 9 on the receiver is energized when the
Power ON button is pressed. (see diagrams in section 6.4 for T100 Transmitter or section 6.5 for T110
transmitters.)
2. All functions are shut off when the Power OFF button (red button) is pressed. When the radio is restarted,
all functions will be off. The transmitter will stay on until the Power OFF button is pressed.
NOTE: The engine will also be shut off when the Power OFF button is pressed and the remote/local
switch is set on radio.
LED indicators
( REV. 10-13 )

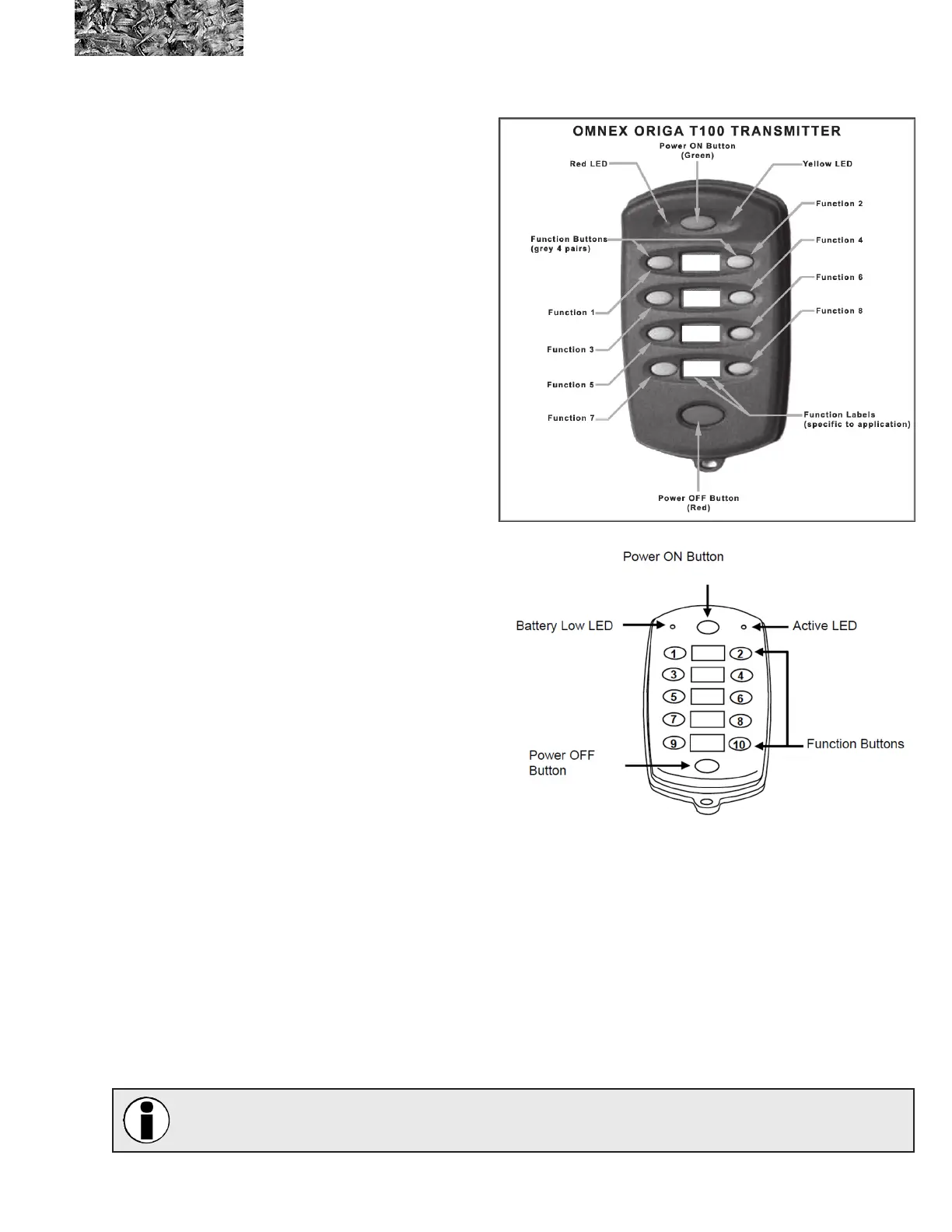

OMNEX ORIGA T110 TRANSMITTER
