2009 DURATECH TUB GRINDER OPERATING INSTRUCTIONS
3.29 Adjusting belly belt seals
1. Always make sure the belt seals (pn# 1700166) and endless belt are in contact with each other.
2. When adjusting the belt seal as it wears down, loosen the bolts and push belt seal down so that it cones in
contact with the endless belt again.
3. Note that the adjustment bolts should be pointed outward.
.
3.30 Belt scrapers on belly and discharge conveyors
Belt scrapers have a poly blade (pn# 4702644 for the belly or pn# 4702193 for the discharge) that wears down and
needs to be ipped around or replaced. When the poly blades wears to within an 1/8” of the scraper frame and doubler,
either ip the poly blade around or replace with a new one.
Note: The belt scrapers are located inside the belt.

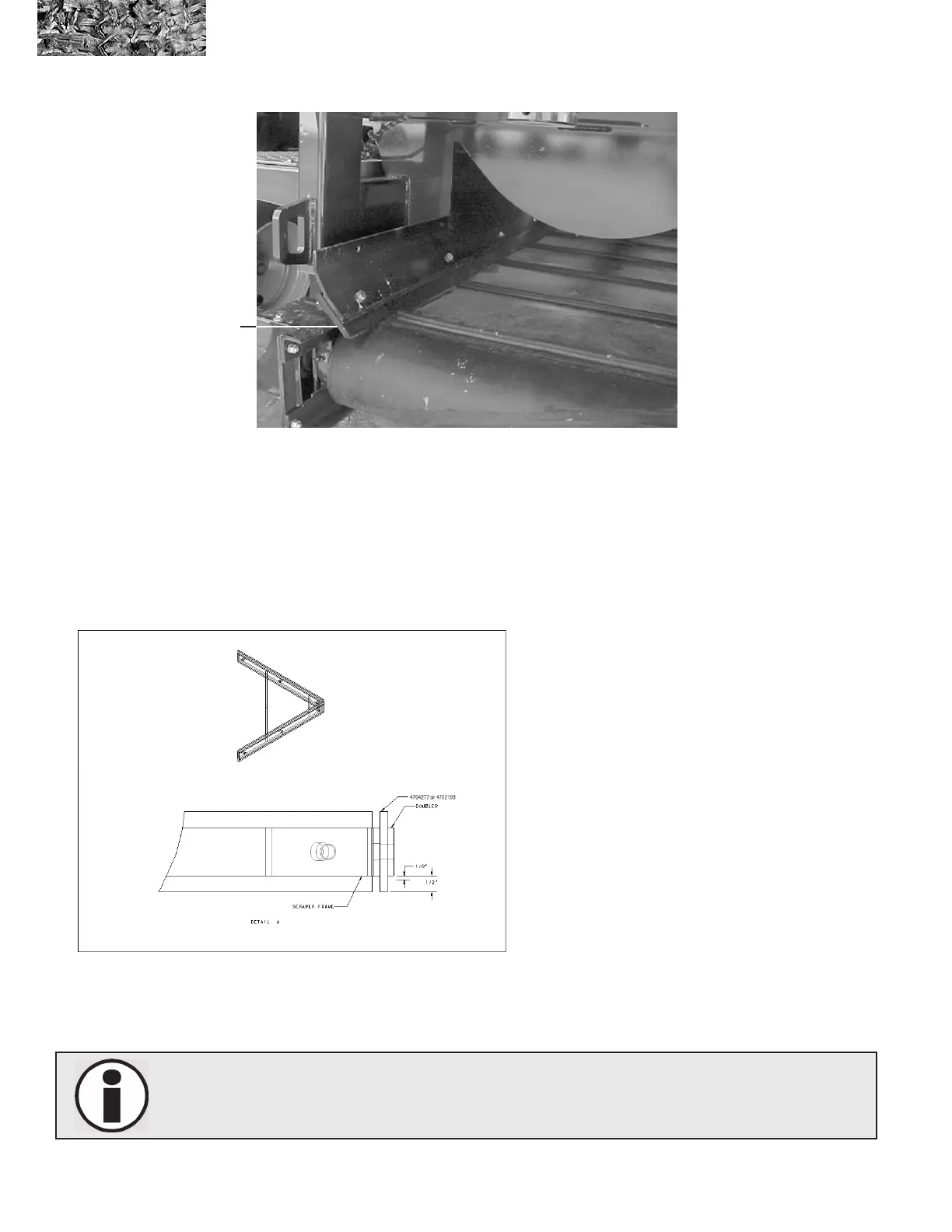

Belt seal
( REV. 08-04 )
