4 CAMERA SPECIFICATIONS

4.1 OPTICAL

Sensitivity @ 2850°K

(measured with IR filter)

Color: 0.018fc for full-scale (min. gain); 0.001fc

for full-scale (max. gain); 0.0004fc for full-scale

with 10-sec exposure

Monochrome: 0.02fc for full-scale (min. gain);

0.001fc for full-scale (max. gain); 0.0003fc for

full-scale with 10-sec exposure

Pixel size and format

6.45µm(H)X 6.45µm(V); interline format

Spectral Response See Figures 4.1-1, 4.1-2, 4.1-3

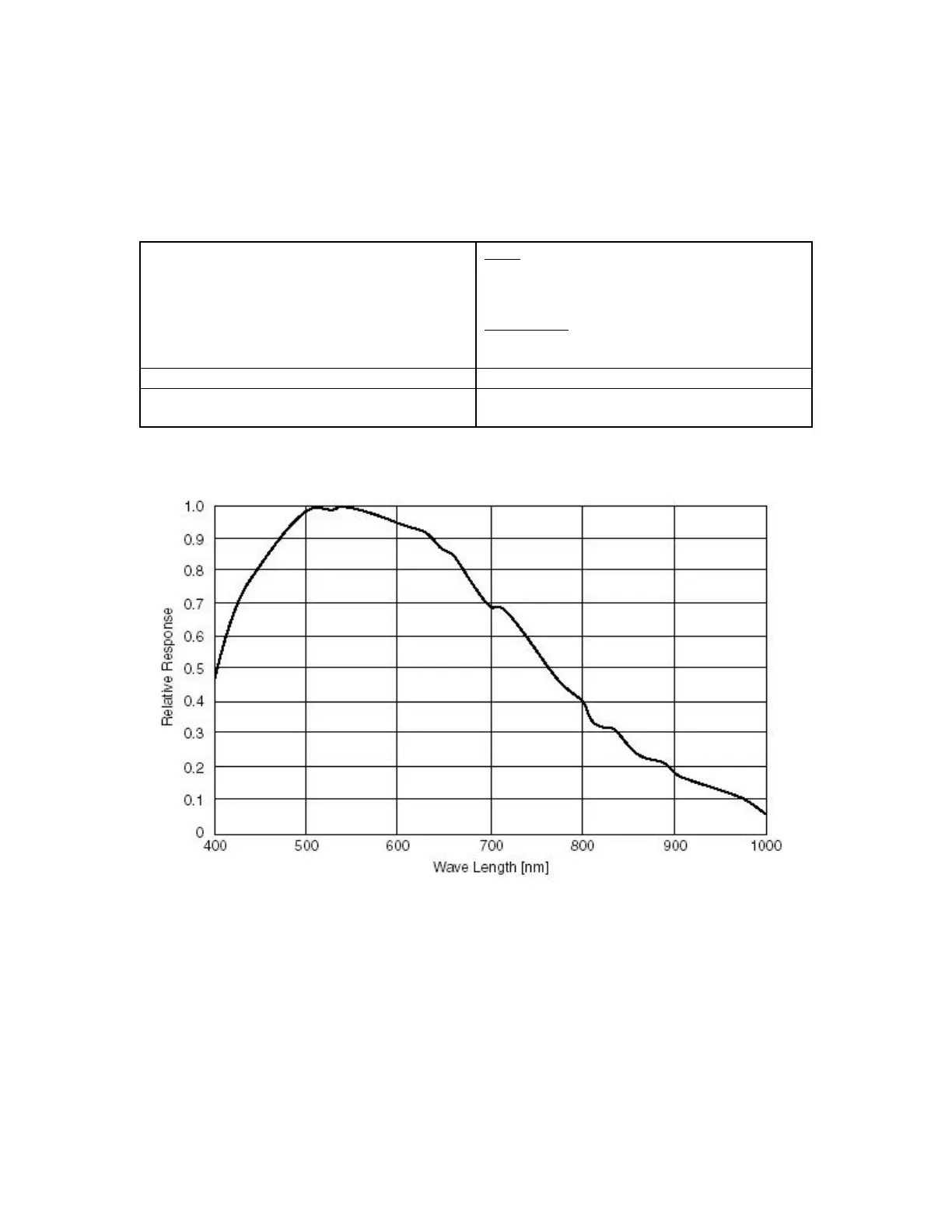

Figure 4.1-1: Monochrome camera spectral response
