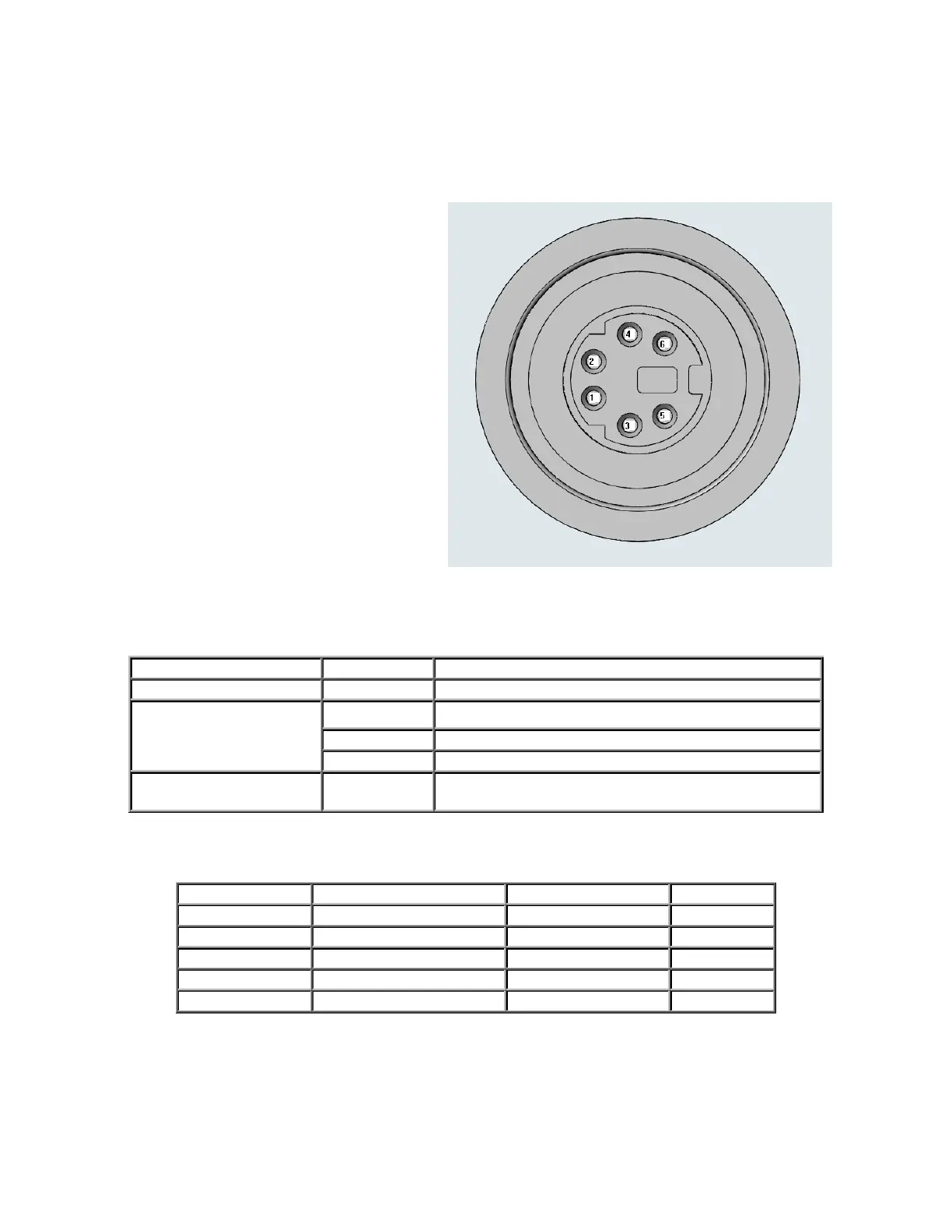

11.3.1 Auxiliary Connector

pin# Signal

------------------

1 HD (O)

2 INPUT1 (O)

3 VRST_INT (I)

4 GND

5 EN_FRAME (O)

6 STROBE/INT-PULSE (O)

Connector Name On Camera Interface Cable

Power Supply Connector DB9M DB9F; e.g. AMP P/N: 205203-1 with 66504-3 pins

DB-44F DB44M; e.g. AMP P/N: 748366-1 with 748333-2 pins

Digital Video Connector MDR-26 Standard CameraLink

6 pin 1394A Standard Firewire

Auxiliary Connector

Mini-Din-6

receptacle

Mini-Din Male; e.g. AMP P/N 750329-2

Table 11.3-1: Camera connector information

Pin No. Signal Name Signal Name Pin No.

6 GND +5VOLTS DC 1

7 STROBE (TTL) RESERVED 2

8 GND -15VOLTS DC 3

9 HD (TTL) VD (TTL) 4

+15VOLTS DC 5

Table 11.3-2: Power supply connector pinout
