DVC DVC-1412 - Figure 11.2-4: DVC-1412-To-Matrox Meteor II DIG Cable (LVDS)

DB-9F 5,SHLD,SHELL 4321
18" cable from SCSI-100 9876
DVC-1412 Matrox Genesis/MeteorII DIG_PCI Image Processing board
PIXCLK- 16 40 PCLK-
PIXCLK+ 1 39 PCLK+
ENL+ 31 33 ENL+
GND 17 37 GND
GND 2 38 GND
ENL- 32 34 ENL-
ENF- 18 36 ENF-
ENF+ 3 35 ENF+
M/S* 33
MSB- 19 24 MSB-
MSB+ 4 23 MSB+
INPUT1+ 34 95 EXPOSURE1(+)
MSB1- 20 22 MSB-1(-)
MSB1+ 5 21 MSB-1(+)
INPUT1- 35 96 EXPOSURE1(-)
MSB2- 21 20 MSB-2(-)
MSB2+ 6 19 MSB-2(+)
R1IN 36 SOLDER
MSB3- 22 18 MSB-3(-)
MSB3+ 7 17 MSB-3(+)
T1OUT 37 SOLDER
MSB4- 23 16 MSB-4(-)
MSB4+ 8 15 MSB-4(+)
COM_GND 38 SOLDER
MSB5- 24 14 MSB-5(-)
MSB5+ 9 13 MSB-5(+)
VRST_INT 39
MSB6- 25 12 MSB-6(-)
MSB6+ 10 11 MSB-6(+)
-15V 40
MSB7- 26 10 MSB-7(-)
MSB7+ 11 9 MSB-7(+)
GND 41 37 GND
MSB8- 27 8 MSB-8(-)
MSB8+ 12 7 MSB-8(+)
+15V 42
MSB9- 28 6 MSB-9(-)
MSB9+ 13 5 MSB-9(+)
GND 43,SHLD 50,SHIELD GND
MSB10- 29 4 MSB-10(-)
MSB10+ 14 3 MSB-10(+)
+5V 44
MSB11- 30 2 MSB-11(-)
MSB11+ 15 1 MSB-11(+)
DB44-plug SCSI-100 HBP50-1AK3202 Acon Advanced
(solder cup or crimp style) connector Connectors
& shell

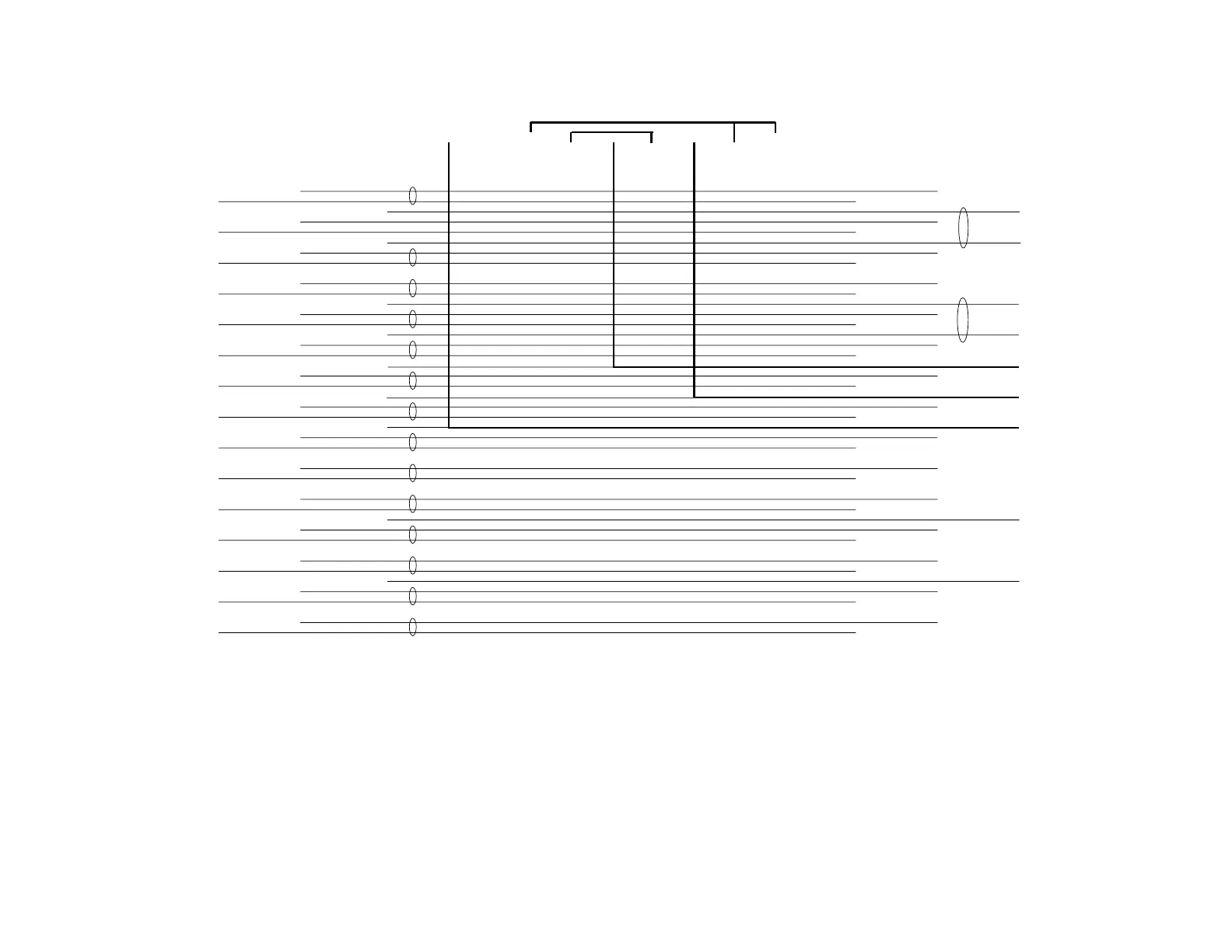

Figure 11.2-4: DVC-1312-to-Matrox Meteor II DIG cable (LVDS)
