DVC DVC-1412 - Intensifier Control; Figure 9.5-1: Luminous Gain Versus IGN Argument

The following commands apply only to intensified cameras:
CMD
Code
Description Range of argument Output
signals
controlled
{default}
IGN Intensifier Gain
00 ≤ two digit hex value ≤ FF
Int_Gain
DAC {00}
IPO Intensifier Pulse “ON” Duration
000 ≤ three digit hex value ≤ FFF
SPI Latch
{00}
IPD Intensifier Pulse Delay
00 ≤ two digit hex value ≤ FF
SPI Latch
{00}
IMD
XYZ
Intensifier mode (see below) IOF, ION, PON, SON, PEX INT_PULSE
{IOF}
IMD IOF Turn off intensifier See below
IMD ION Turn on intensifier in Gain
mode
See below INT_PULSE
{LOW}
IMD
PON
Turn on intensifier in Pulse
mode
uses IPO & IPD; see below INT_PULSE
{HIGH}
9.5.1 Intensifier Control
The luminous gain of Intensifier tube is controlled in a log-linear fashion via the serial port (IGN
parameter). The intensifier may also be gated to provide duty-cycle control of its "on" time--the
gating is internally derived but controlled via the serial port (IPO and IPD parameters) in several
different modes (set by the IMD parameter).
Intensicam
70795
36728
19055
2512
5012
9772
1.E+03
1.E+04
1.E+05
0 51 102 153 204 255
IGN Argument
Luminous Gain

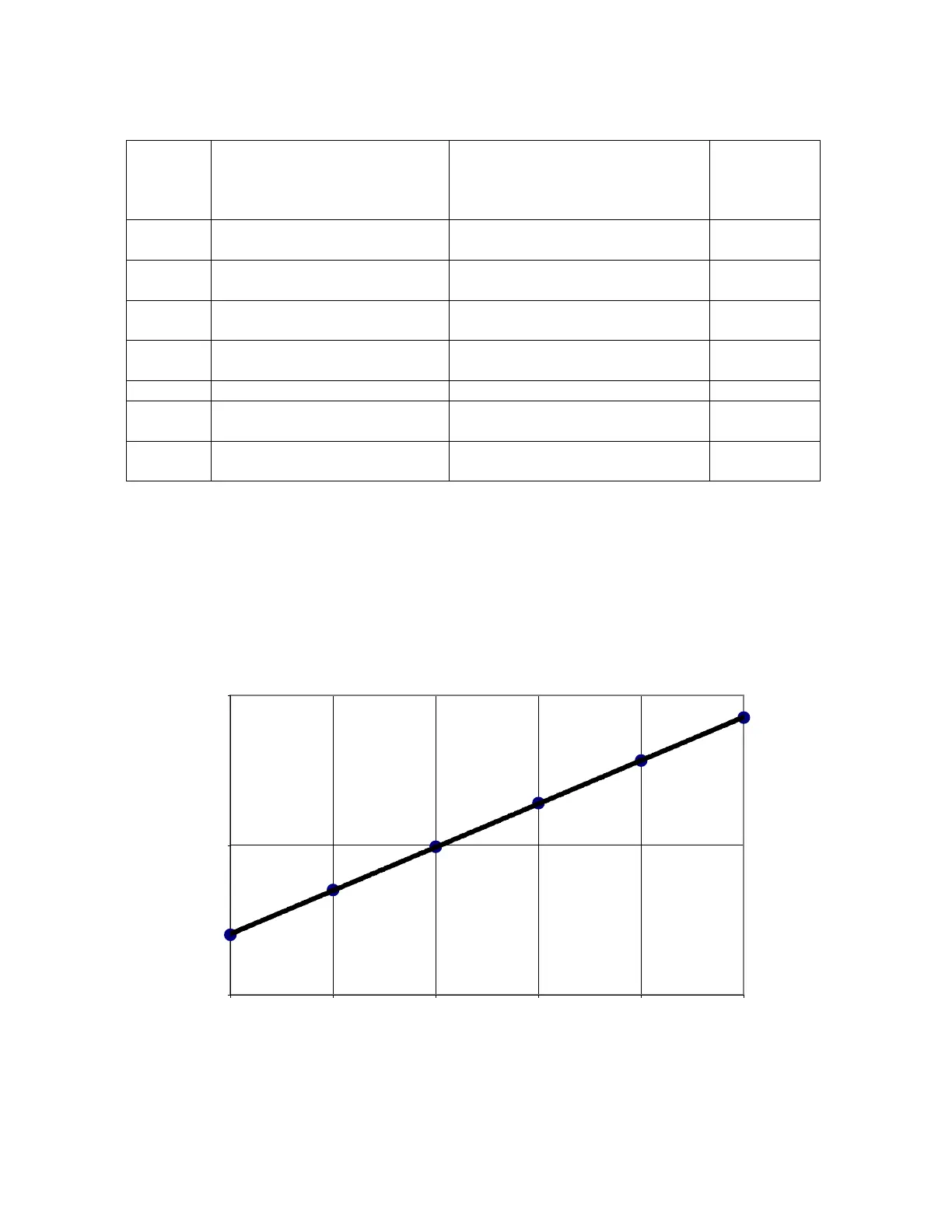

Figure 9.5-1: Luminous Gain versus IGN Argument
51
