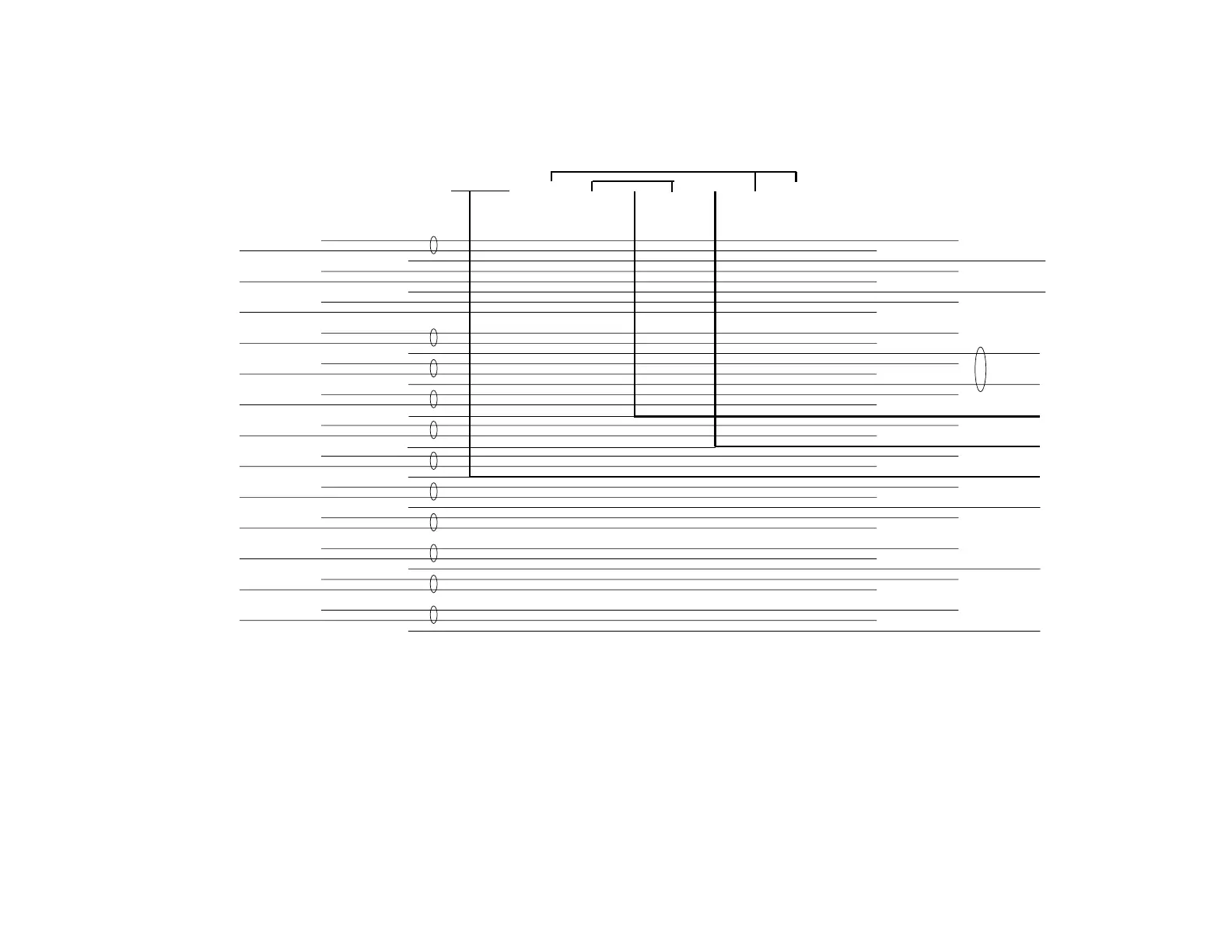

DVC DVC-1412 - Figure 11.2-3: DVC-1412-MV1500 Cable

DB-9F 5,SHLD,SHELL 4321
18" cable from SCSI68 9876
DVC-1412 MuTech MV1500 Image Processing Board
PIXCLK- 16 63 PCLK-
PIXCLK+ 1 29 PCLK+
ENL+ 31 26 ENL+
GND 17 68 GND
GND 2 1 GND
ENL- 32 60 ENL-
ENF- 18 59 ENF-
ENF+ 3 25 ENF+
M/S* 33
MSB- 19 42 MSB-
MSB+ 4 8 MSB+
INPUT1+ 34 30 EXPOSURE1(+)
MSB1- 20 43 MSB-1(-)
MSB1+ 5 9 MSB-1(+)
INPUT1- 35 64 EXPOSURE1(-)
MSB2- 21 44 MSB-2(-)
MSB2+ 6 10 MSB-2(+)
R1IN 36 SOLDER
MSB3- 22 45 MSB-3(-)
MSB3+ 7 11 MSB-3(+)
T1OUT 37 SOLDER
MSB4- 23 47 MSB-4(-)
MSB4+ 8 13 MSB-4(+)
COM_GND 38 SOLDER
MSB5- 24 48 MSB-5(-)
MSB5+ 9 14 MSB-5(+)
VRST_INT 39 21 VINIT/FST&EXP
MSB6- 25 49 MSB-6(-)
MSB6+ 10 15 MSB-6(+)
-15V 40
MSB7- 26 50 MSB-7(-)
MSB7+ 11 16 MSB-7(+)
GND 41 1 GND
MSB8- 27 53 MSB-8(-)
MSB8+ 12 19 MSB-8(+)
+15V 42
MSB9- 28 54 MSB-9(-)
MSB9+ 13 20 MSB-9(+)
GND 43,SHLD 68,SHIELD GND
MSB10- 29
MSB10+ 14
+5V 44
MSB11- 30
MSB11+ 15
DB44-plug
Figure 11.2-3: DVC-1412-MV1500 cable
65
