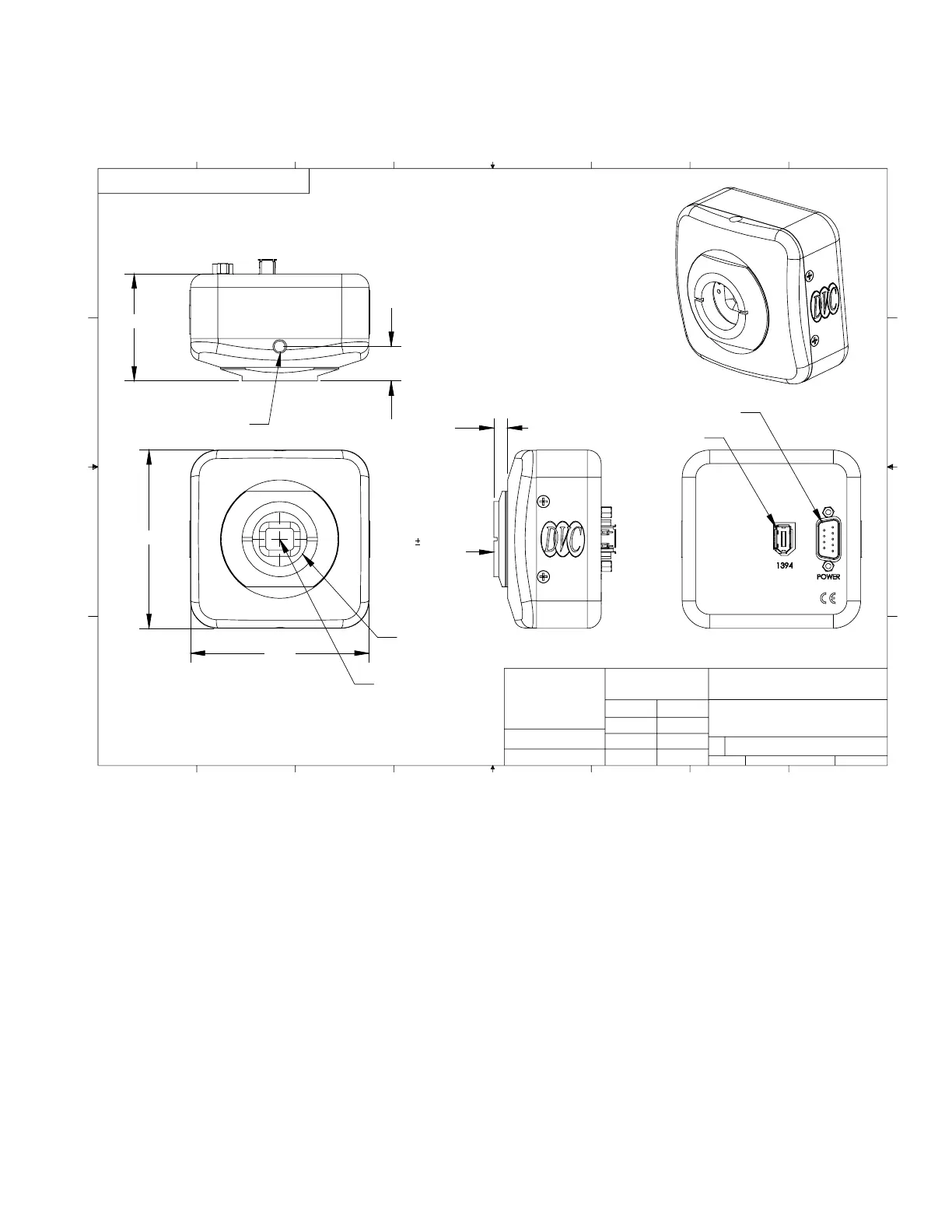

DVC DVC-1412 - Figure 11.1-3: 1412 Camera with 1394 Connector

3.26
3.26
Optical Center
1" x 32 thread
C lens mount
1.96
.64
1/4 x 20 Thread Mount
(top and bottom)
(nom inal)
(nom inal)
.25
0.69 0.12
To Focal Plane
Adjustable
IEEE 1394
DB9 Male
Power Connector
IEEE 1394
Connector
A
B
C
D
DVC Company
SCALE
SIZE
CAD FILE:
DWG. NO.
A
SHEET 1 OF 1
DATE
AP PR OVALS
DRAWN
CHECKED
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
FRACTIONS DECIMALS ANGLES
.XX +/- .01
.XXX +/- .005
MATERIAL
FINISH
DO NOT SCALE DRAWING
1
2
3
456
7
8
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF DVC Co. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF DVC Co. IS PROHIBITED.
1310 and 1312 Camera Assy
A
B
C
D
12
3
4
567
8
Notes:
10200 Hwy 290 West, Austin, TX 78736
Figure 11.1-3: 1412 Camera with 1394 Connector
