15 / 84 SM-SG-2 Ev3/25062014

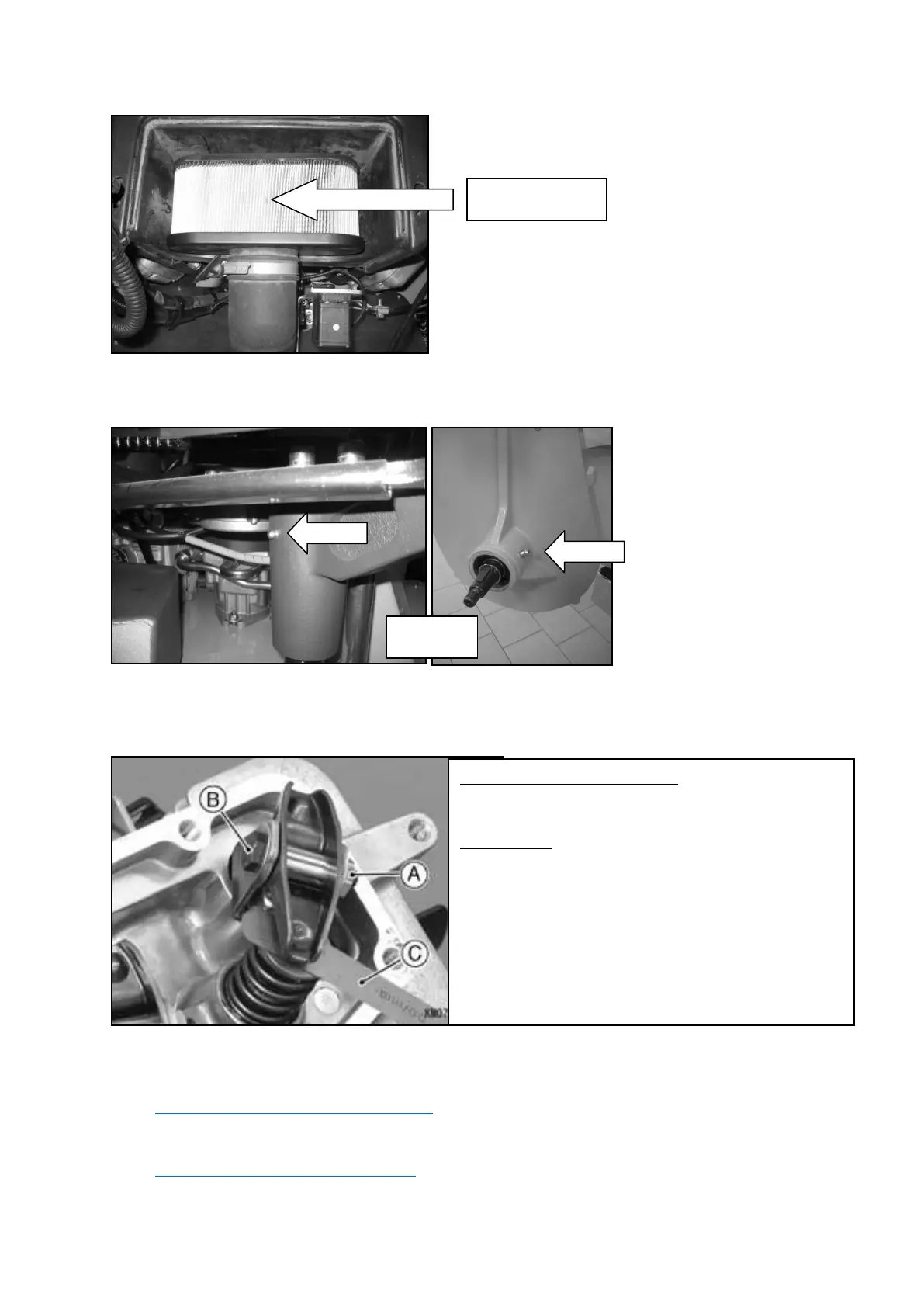

b) Change paper air filter
Fig. 15
c) Lubricate wheel arms and wheel bearings MOBILGREASE XHP 222
Fig. 16
d) Check and adjust valve clearance
Fig. 17
e) Check and adjust auxiliary drive brake
see 6.5 Replacement of the auxiliary drive brake
f) Change ecological hydraulic oil if applied
see 6.3 Replacement of the hydraulic oil filter
Valve Clearance (when cold)
Inlet, Exhaust 0.10 - 0.15 mm (0.004 - 0.006 in.)
Adjustment:
- Loosen the locknut [A] and adjusting bolt [B].
- Insert a 0.05 mm (0.0020 in.) thickness gauge [C]
between
the rocker arm and valve stem end, and turn the
adjusting bolt until the thickness gauge begins to bind
between
the rocker arm and valve stem end. Sweep the thickness
gauge during this adjustment. (when the piston is in
T.D.C)
