52 / 84 SM-SG-2 Ev3/25062014

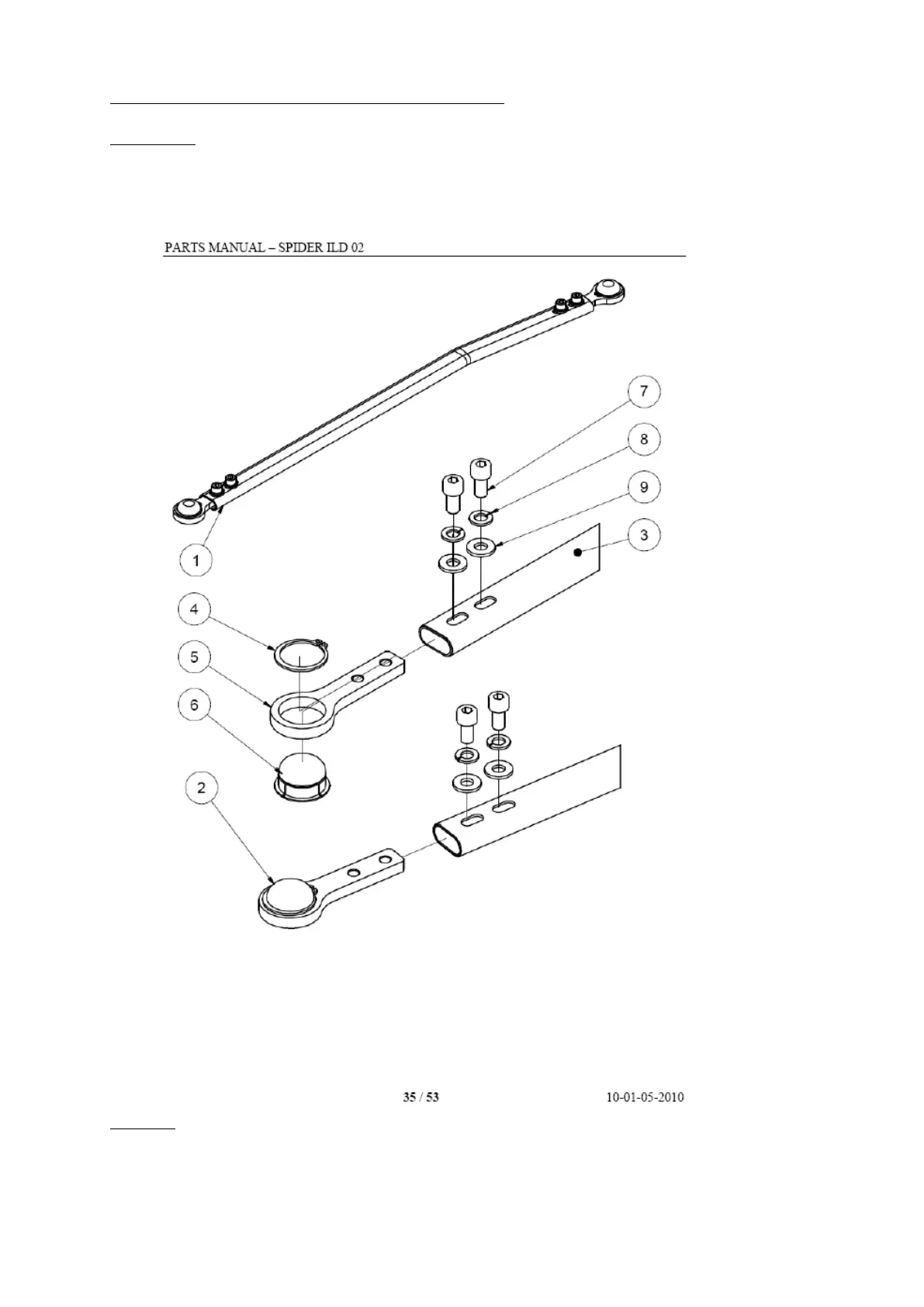

6.22 REPLACEMENT OF THE STABILIZER - PRESSED IN
Dismounting:
- Lift the mower (the wheels must be off the ground)
- Undo both capscrews no.7 holding stabilizer eye – bracket no.5
- Remove retaining ring 30 no.4 and pull off the stabilizer bracket from the stabilizer nylon bushing no.6
- Remove stabilizer nylon bushing no.6 from the arm joint
Mounting:
- Take the above steps in reverse order
