6.24 REPLACEMENT OF THE ELEVATION SERVOMOTOR
Dismounting:
- Adjust the mower to the minimum height-of-cut
- Disconnect the battery
- Disconnect the electric connector of the servo
- Release self locking nut and remove the pinion 14M
- Remove three countersunk screws (Fig. 115)
- Remove the servomotor
Mounting:
- Take the above steps in reverse order

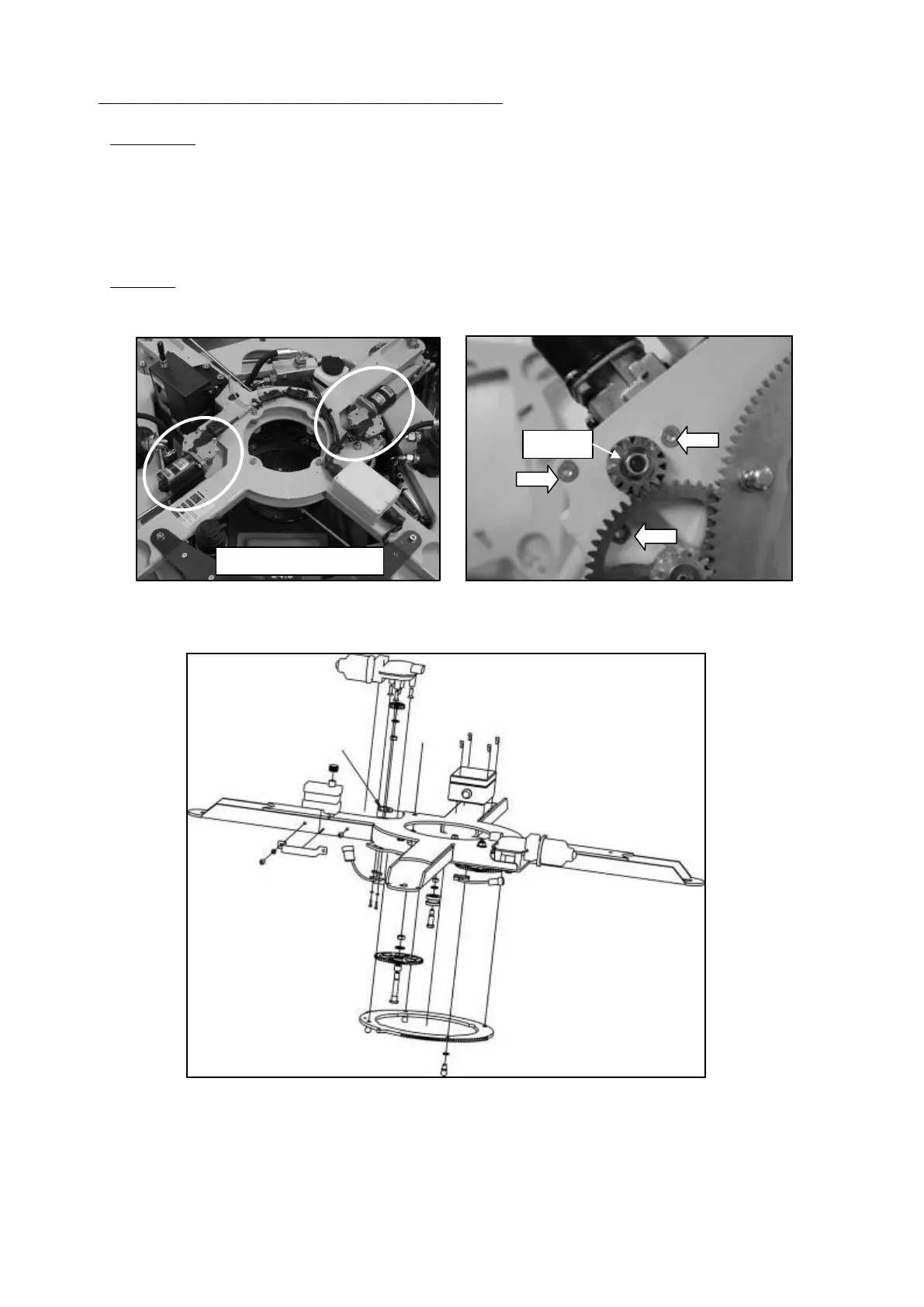

Fig. 114 Fig. 115
Fig. 116
