41 / 84 SM-SG-2 Ev3/25062014
6.11 REPLACEMENT OF THE CLUTCH
Dismounting:
- Remove left mowing blade, carrier cartridge and clutch cover, belts B 1160, BX 17x960
- see 6.9 Replacement of the pump driving belt Good Year BX 17x960 and 6.7 Replacement of the clutch
driving belt B 1160
- Disconnect the battery
- Disconnect clutch cables and the FASTON plug (Fig. 74 ,75)
- Undo the main clutch bolt (Fig. 76)
- Remove the clutch

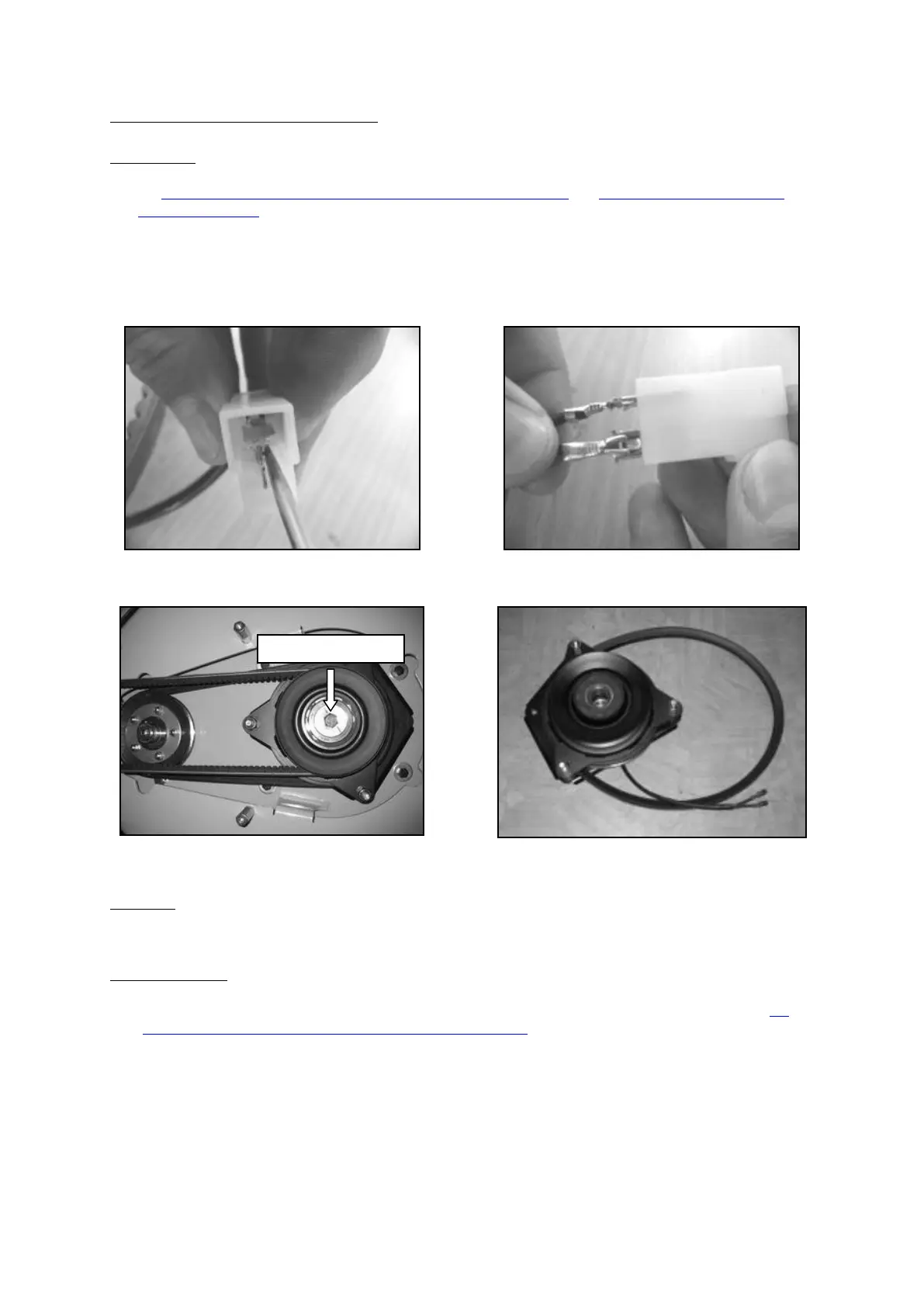

Fig. 74
Fig. 75
Fig. 76
Fig. 77
Mounting:
- Push the clutch cables through the inlet bushing of the case
- Loctite and fasten the main bolt of the clutch
Clutch adjustment:
- Set the distance x with the adjustment nut 1, tight slightly the nut 1-both sides are closely each other, brake
is activated promptly but the brake disc must not warm up! Eventuallly loosen the nut 1(Fig. 69) see 6.9
Replacement of the pump driving belt Good Year BX 17x960
