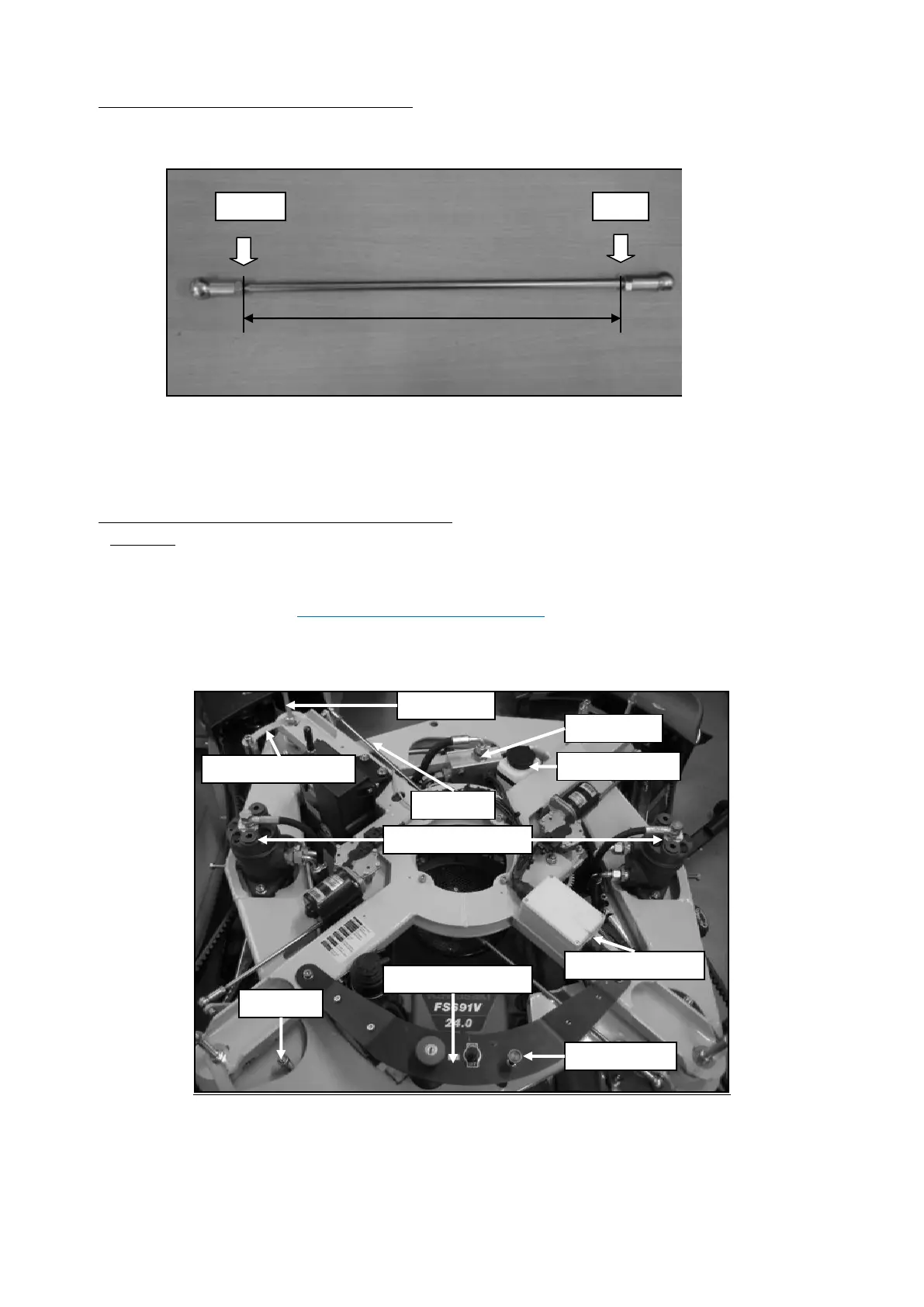

6.25 ADJUSTMENT OF THE LIFT PULL RODS
ATTENTION! The lock nuts have left and right hand threads!!!
Fig. 117
6.26 REPLACEMENT OF THE GIRDER AND CROSS
Dismount:
- Adjust the mower to the minimum height-of-cut
- Disconnect the battery
- Remove the following: controller bracket, choke button, elevation module-disconnect sensors, driving belts
and hydraulic motors see 6.6 Replacement of the hydraulic motor, expansion tank, valve EDH, breather
hose, bolt sets, girder bolts, stabilizer stiffener and lift levers (Fig. 118)
- Undo the girder bolts and remove stabilizer stiffeners
- Remove the girder and the cross
Fig. 118
Right
Left
318
Lift lever
Controller bracket
Girder bolt
Stabilizer stiffener
Elevation module
Valve EDH
Expansion tank
Choke button
ft
Hydraulic motor
Bolt set
