Dvorak ILD02 SG - Engine Rpm Servomotor; Carburetor Solenoid

SM-SG-2 Ev3/25062014
70 / 83
Earth-Black
Power supply (+6V)-Red

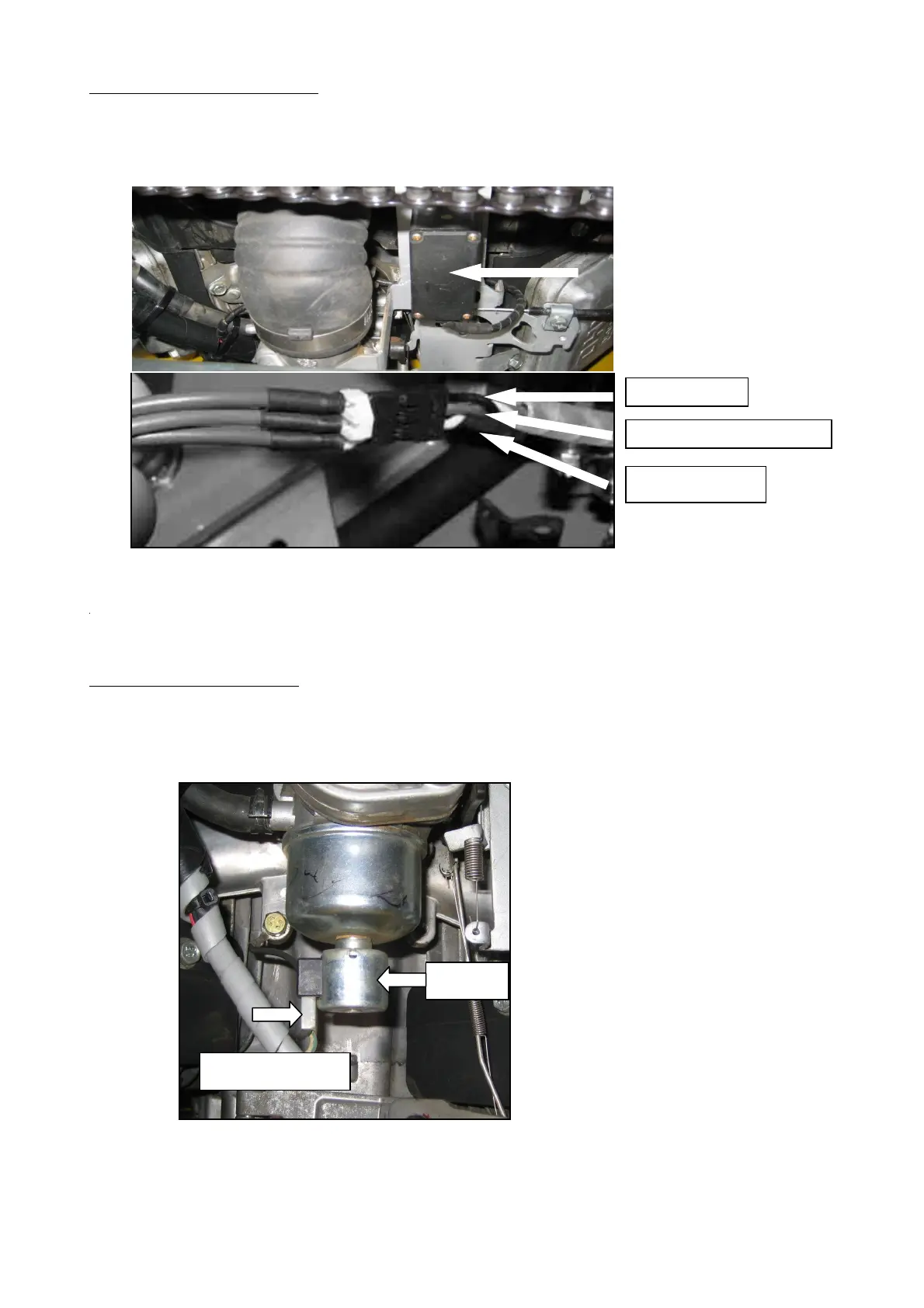

7.7 ENGINE RPM SERVOMOTOR
- Used like a engine accelerator
Characteristic: Power supply = 6 V
control f = 50 Hz
Engine rpm servomotor
7.8 CARBURETOR SOLENOID
- electromagnetic valve to shut off fuel supply
Characteristic: power supply = 12 V, current drain = 0,4A
coil resistance = approx 40 ohm
Carburettor solenoid
Control - Yellow
Solenoid connector
Solenoid
