6.28 REPLACEMENT OF THE STARTER SWITCH RELAY
- Disconnect the battery
- Disconnect the relay wiress
- Connect the earth wire under the relay fixing screw during aasembly
Check:
- When the relay switches on, the voltage must be on both heavy-current relay connectors
- If not, check the relay control voltage of the supply wire (brown). It should be U = 12V when the relay is on

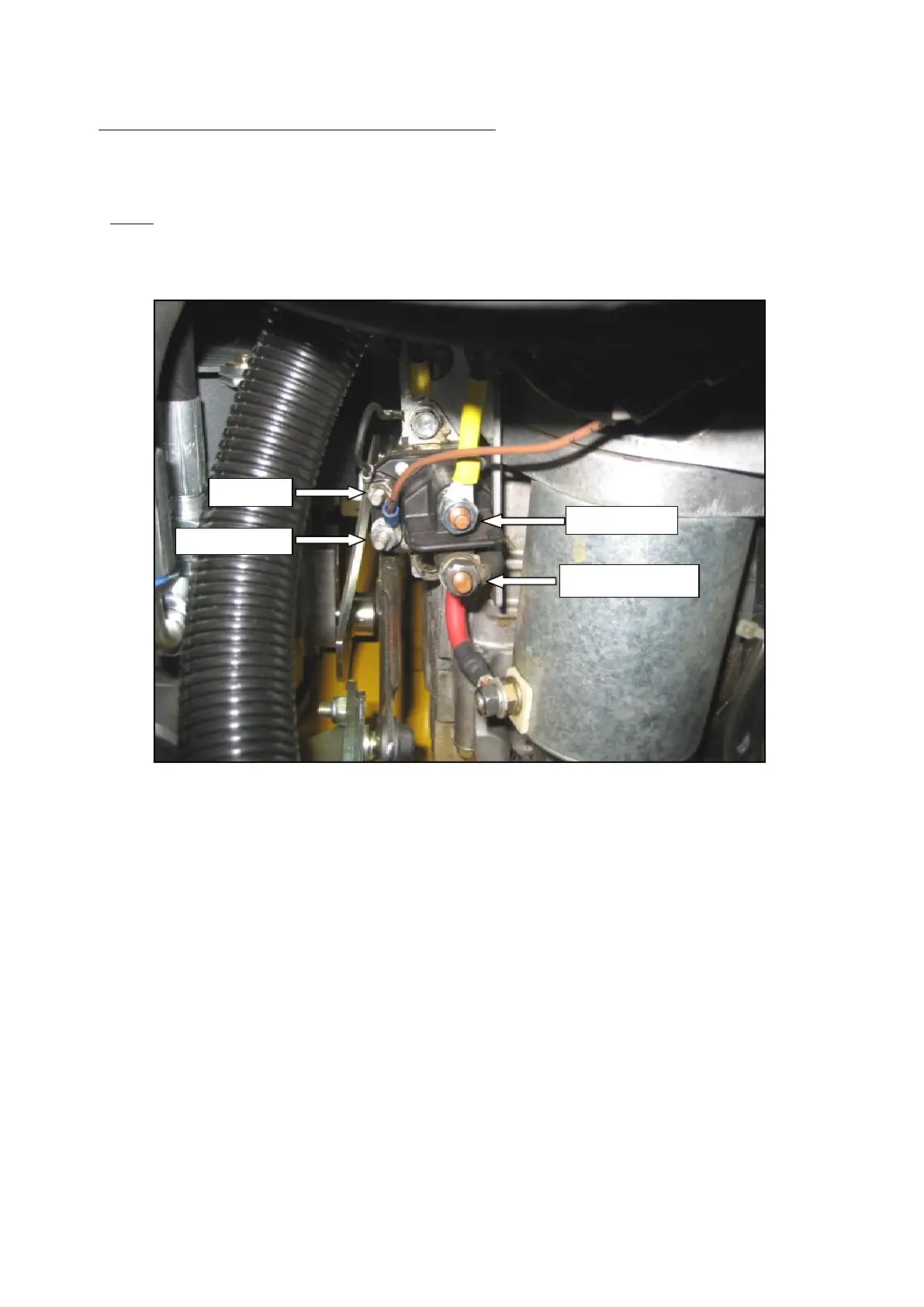

Fig. 122
Supply wire
Control wire
Earth
Starter wire (red)
