6.3 REPLACEMENT OF THE HYDRAULIC OIL FILTER
- Suck out the oil through the filling neck from the hydraulic tank
- Tilt the mower on side of the fuel tank
- Clean thoroughly lower part of the mower. (ATTENTION, dirt must not get in the hydraulic tank!)
- Undo the hydraulic filter lid (Spanner 63mm)

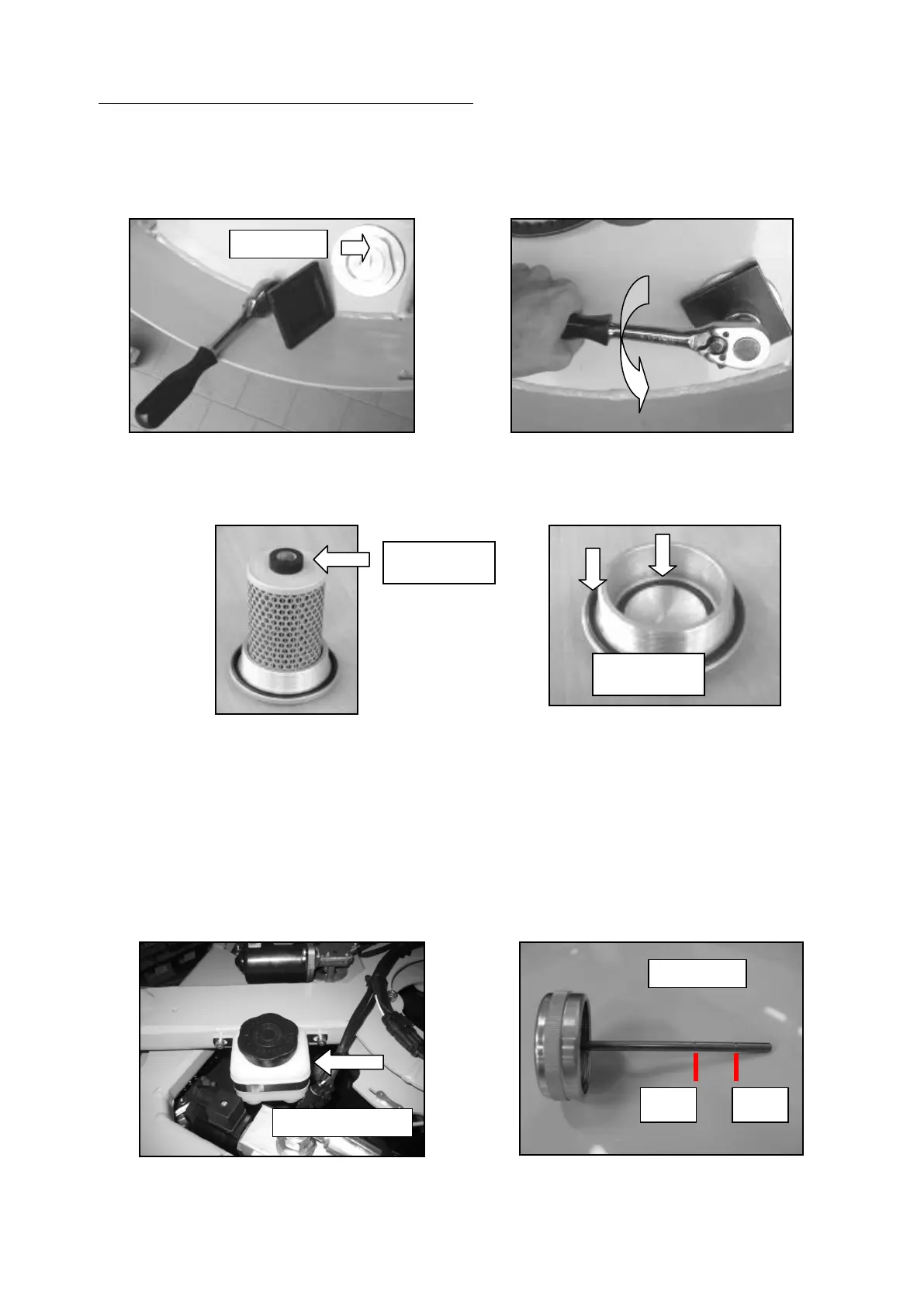

Fig. 25
Fig. 26
- Remove and exchange the filter - MANN FILTER H 601/4 (MIND correct position of the sealing rings!)
- Lubricate the rings slightly with some oil, so that they can seal properly.
Fig. 27
Fig. 28
- Fill up the hydraulic oil HV68 (approximately 8,5 l )
- Start the engine and move forward and backward to get rid of air in the hydraulic system (the wheels must
move smoothly)
- Fill up the oil so that the level falls between the dipstick lines.
- Drive to warm up the oil to operating temperature and check tightness of the oil filter lid and tank cap
- If oil gets in to the expansion tank, suck it out
ATTENTION! When the hydraulic oil is warm, its level gets up to the hydraulic tank filling neck!
Fill the oil up the dipstick line only when it is cold!
Fig. 29 Fig. 30
