24 / 84 SM-SG-2 Ev3/25062014

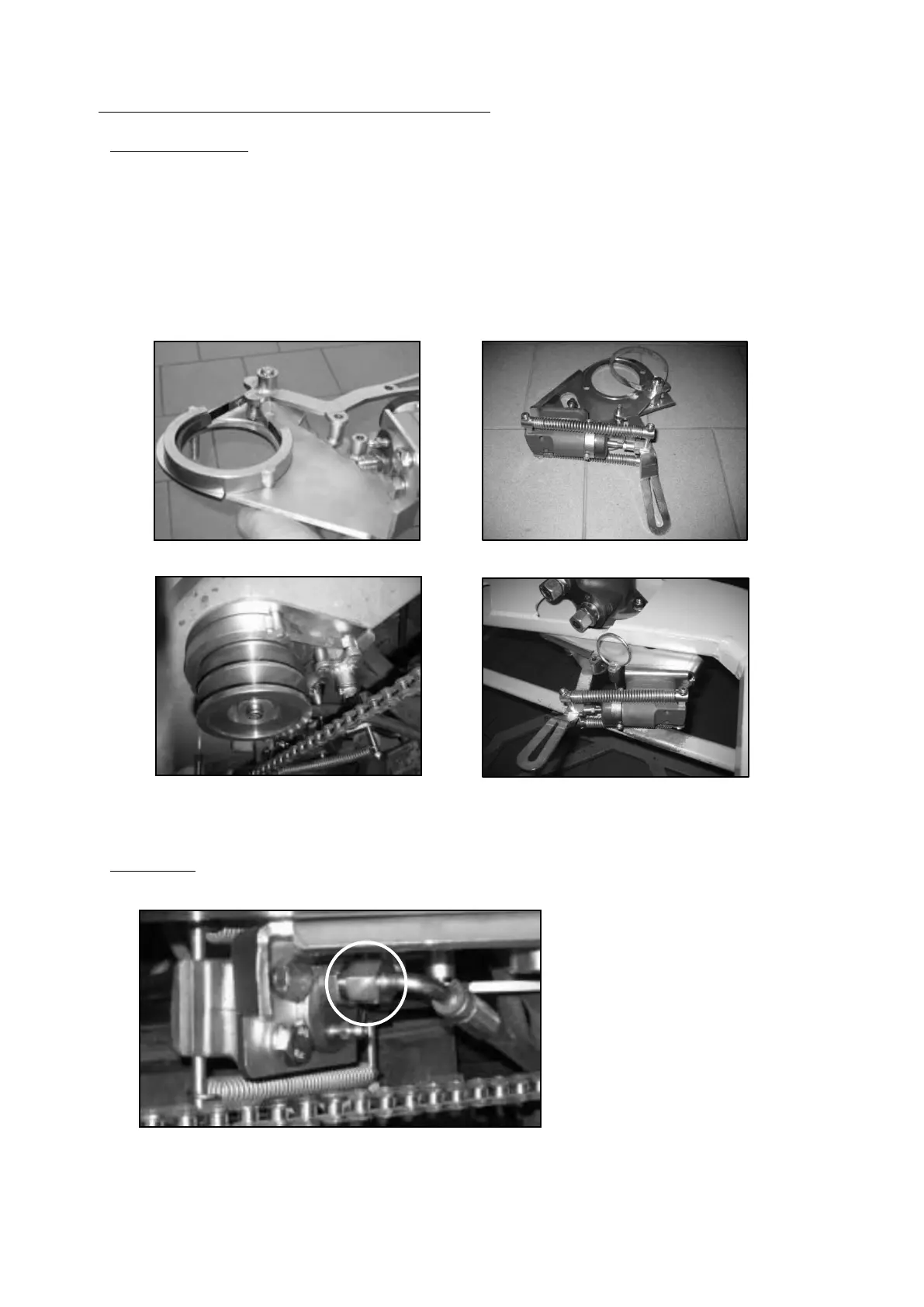

6.5 REPLACEMENT OF THE AUXILIARY DRIVE BRAKE
Technical description:
The auxiliary drive brake works on the principle of a band brake, where the braking band brakes the pulley of the
hydraulic motor and consequently also the wheels. The brake is controlled by a brake cylinder, which is
connected to the filling circuit of the hydraulic pump. The braking effect will take place when the pressure in the
hydraulic system drops (engine shut down, air in the hydraulic system, after pushing the „Emergency stop“
button). When the pressure in hydraulic system increases, the brake will be disengaged.
The brake includes a system, which allows the brake to be manually disengaged (Safety pin). If used together
with the hydraulic by-pass, the machine can be moved without using its own drive
Fig. 38 Fig. 39
- Suck out oil from the hydraulic tank
Dismounting:
- Dismount the hydraulic hose of the brake
Fig. 40
