Dvorak ILD02 SG - Starter - Starter Relay; Clutch

SM-SG-2 Ev3/25062014
79 / 83

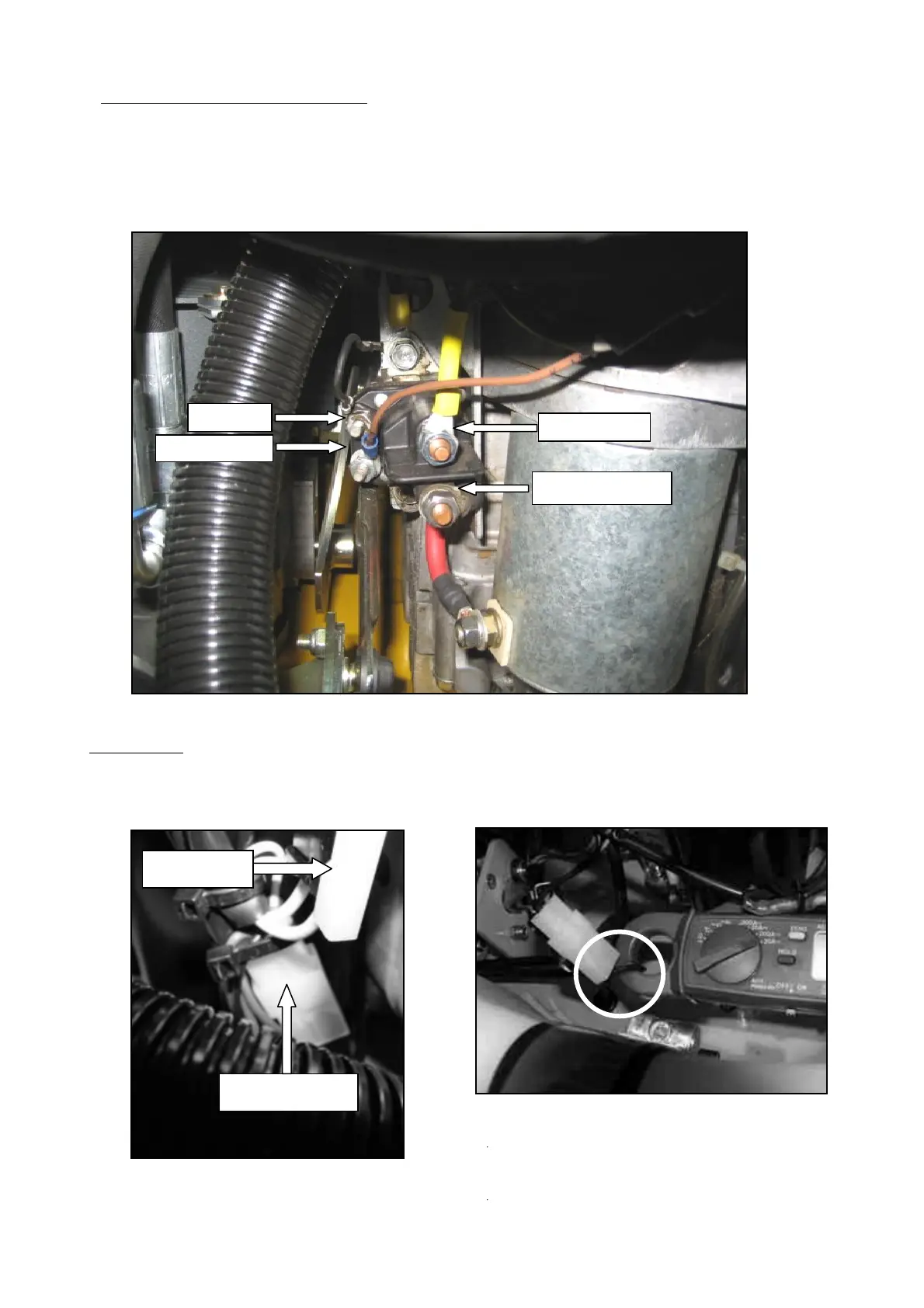

7.15 STARTER – STARTER SOLENOID
Characteristic: Relay 12 V
Control wire: switch on = 12 V and main wire voltage = 12 V
Coil resistant = 4,1 ohm
Starter solenoid
7.16 CLUTCH
Characteristic: Switching voltage = 12 V Coil
Resistance. = 3,4 ohm
Current (switch on) = 4,2 A
Current measuring
Clutch connector
Charge cable
Supply wire
Control wire
Earth
Starter wire (red)
Clutch connector
