51 / 84 SM-SG-2 Ev3/25062014

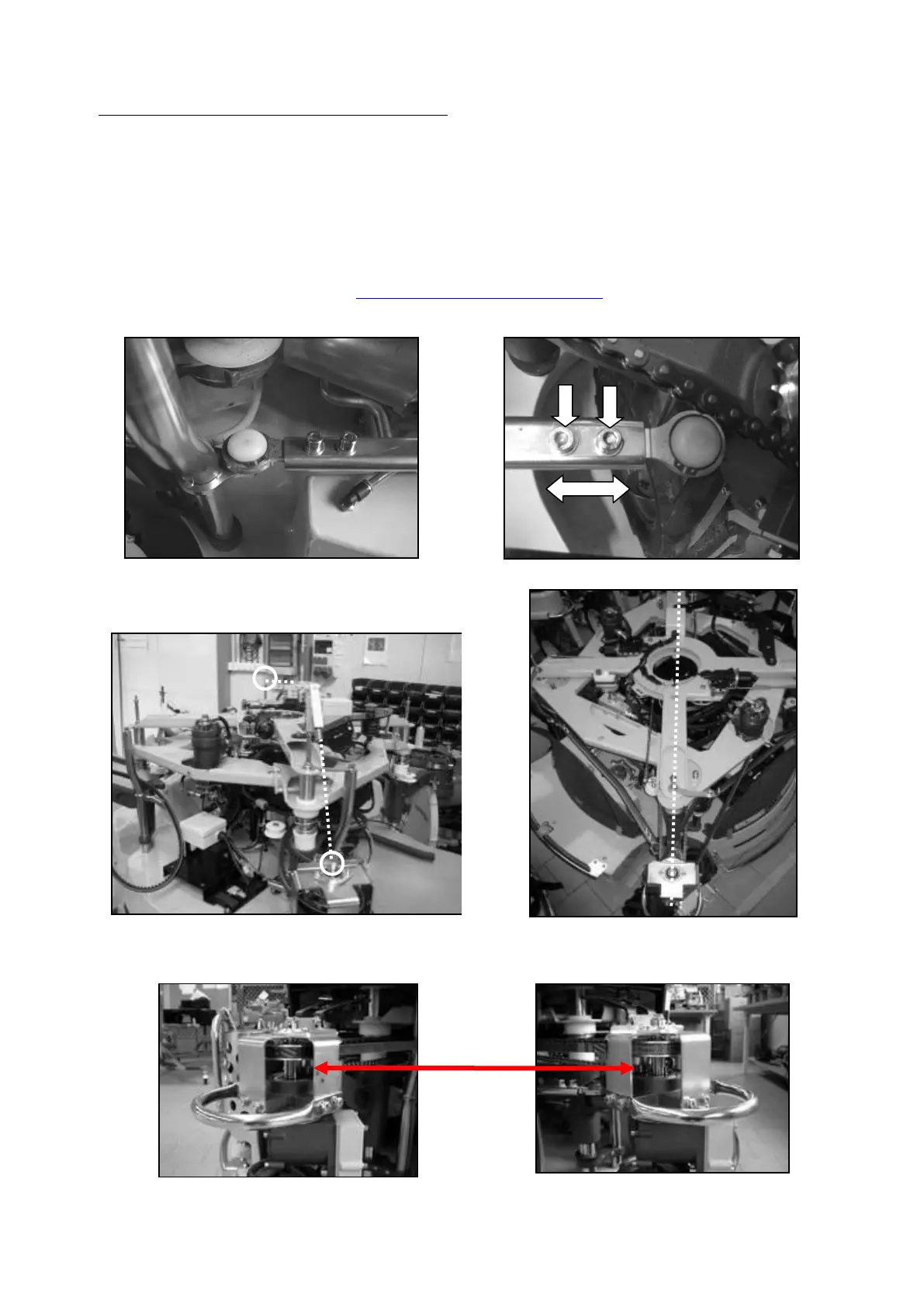

6.21 ADJUSTMENT OF THE STABILIZER LENGTH
- Adjust and fasten the left side to the minimum length (Fig. 105)
- Release the right side so that the arm can move freely (Fig. 106)
- Adjust the axes of the pulley, sliding bar and girder in one line using the laser geometry adjustment tool
(Fig. 107, 108)
- Distance between the corner bracket adges should be 1043 mm (see Fig.s below)
- Fasten the right side of the stabilizer
- Check the clearance between the wheels and case
- Following adjustment of the stabilizer length, it is necessary to check the chain tension and wheel geometry
and make possible adjustment see 6.23 Adjustment of the wheel geometry
Fig. 105
Fig. 106
Fig. 107
Fig. 108
