7.9 FUSES
1. 5 A – control panel, skid steering power supply
2. 15 A – alternator
3. 15 A – alternator
4. 20 A – logic, steering servo
5. 20 A – logic, steering servo

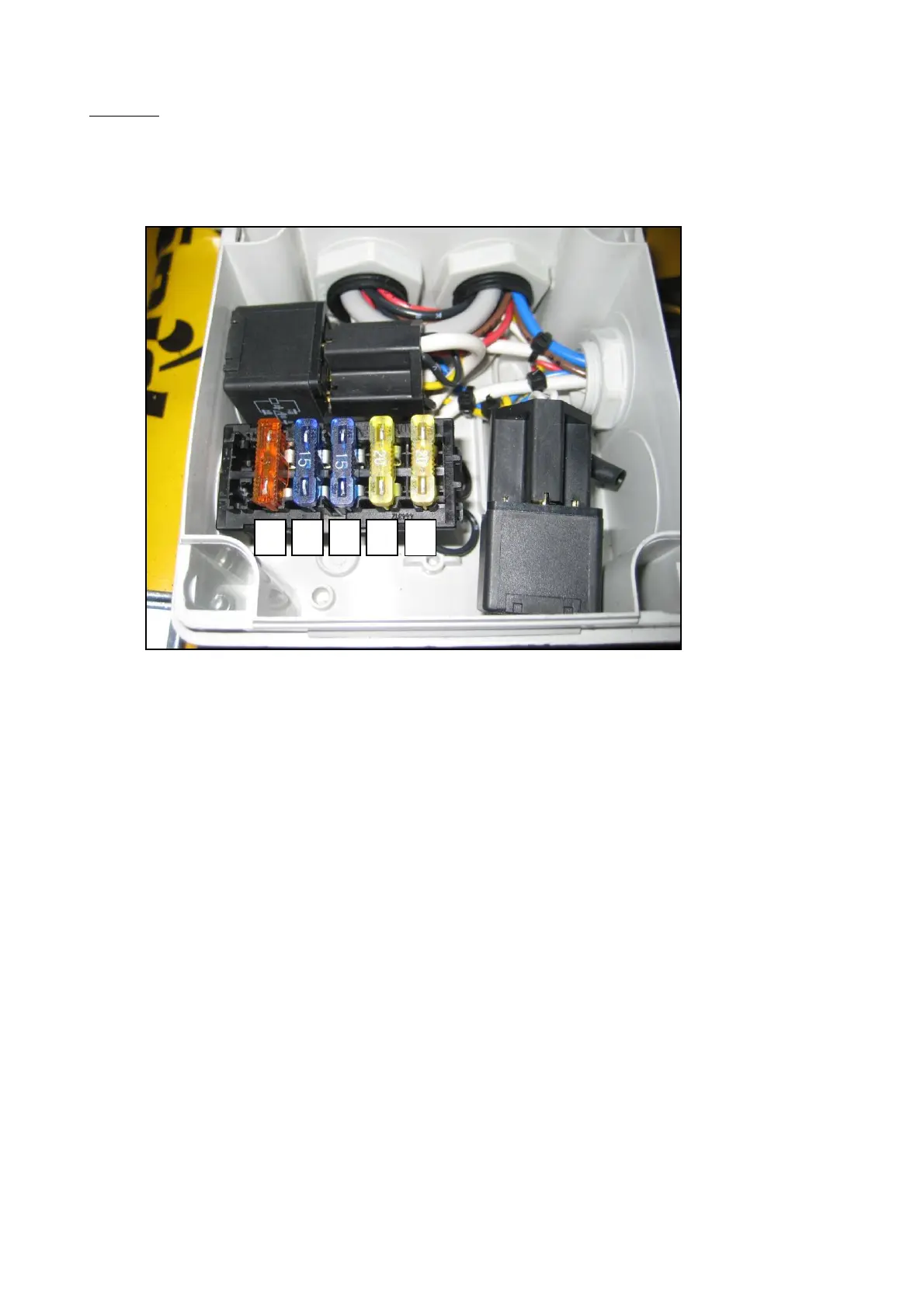

Fuses box
- When changing fuses strictly follow the electric current value for which the fuses are designed. Do not
replace damaged fuses with fuses with a higher or lower rating. These could cause large damage or even fire
to the mower!
- When the fuses are blown change them and check their base for proper contact or cold links. There could be
contact resistance. Recommendation – use Omega fuses
1
