Dvorak ILD02 SG - Torque; Lubricators

65 / 84 SM-SG-2 Ev3/25062014

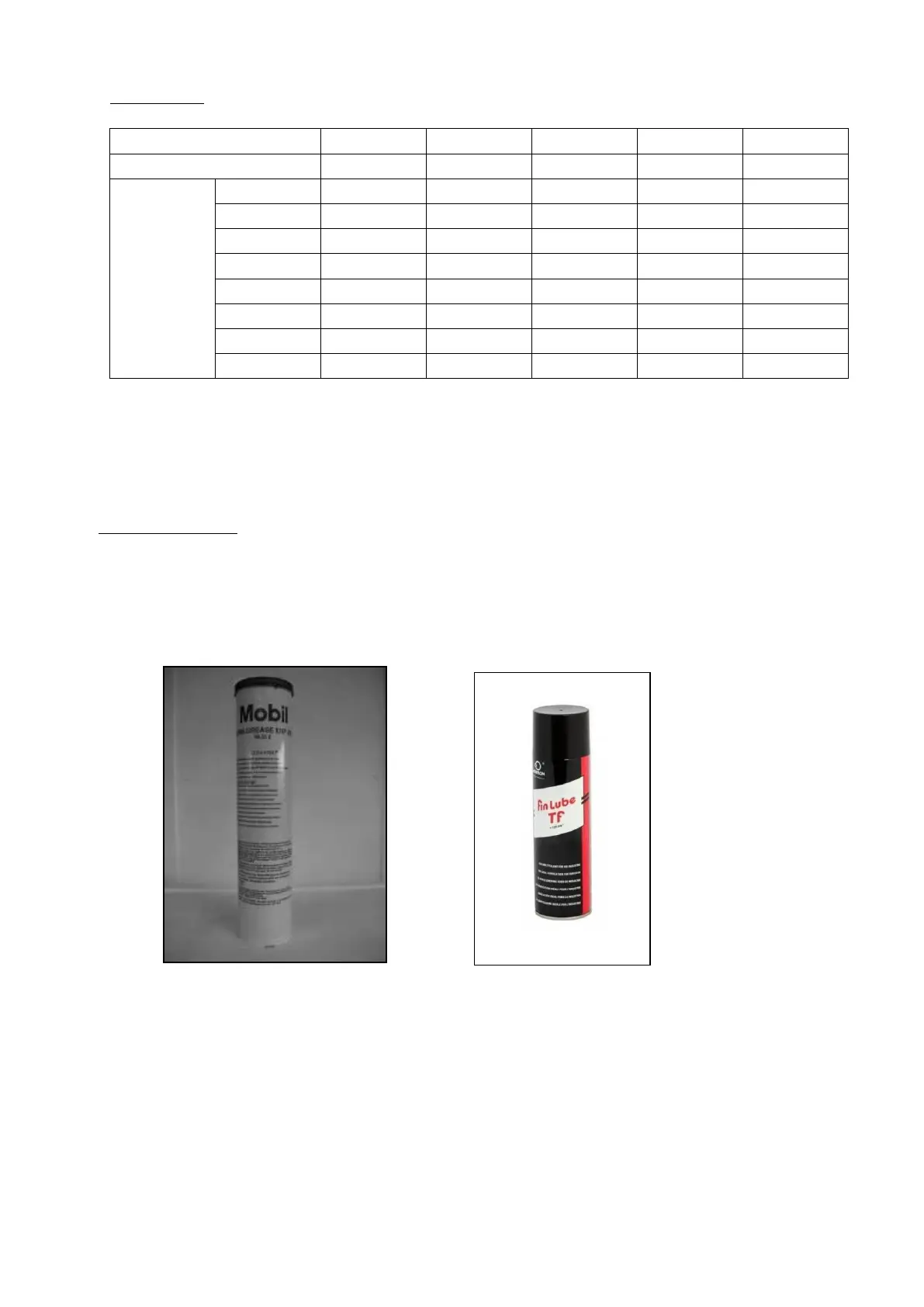

6.33 TORQUE
Bolt material
5D
6S
8G
10K
12K
Material strength [MPa]
480 – 680
580 – 780
780 – 980
980 – 1180
1180 - 1380
Torque M
U max
[N.m]
M 6
4,3
7,3
9,7
13,5
16,5
M 8
10
17,5
23
33
39,5
M 10
20,5
35,5
47,5
67
80,5
M 8x1
10
17,5
23
32,5
39
M 10x1,25
20,5
35
47
66
79,5
M 12x1,5
35,5
61
81
114
137
M 14x1,5
56
96
128
180
216
M 16x1,5
87
149
199
281
338
6.34 LUBRICATORS
Interflon Fin Lube TF Chain spray, spray for sliding surfaces – water resistant, anti-adhesive surface
Mobilgrease XHP/222 Plastic grease, high endurance insoluble lubricant
Mobilux EP004 Lubricant for angular gears
Standard grease
Fig. 126
Fig. 127
