6.29 REPLACEMENT OF THE MAIN HARNESS
- Disconnect the battery
- Disconnect the jointing sleeves of all parts: control unit, throttle control, carburettor solenoid, STOP button,
horn, elevation module, charger, clutch, driving servomotor NBB, steering motor, starter relay, and control
panel
- Remove the fuse box cover
- Undo the fuse box

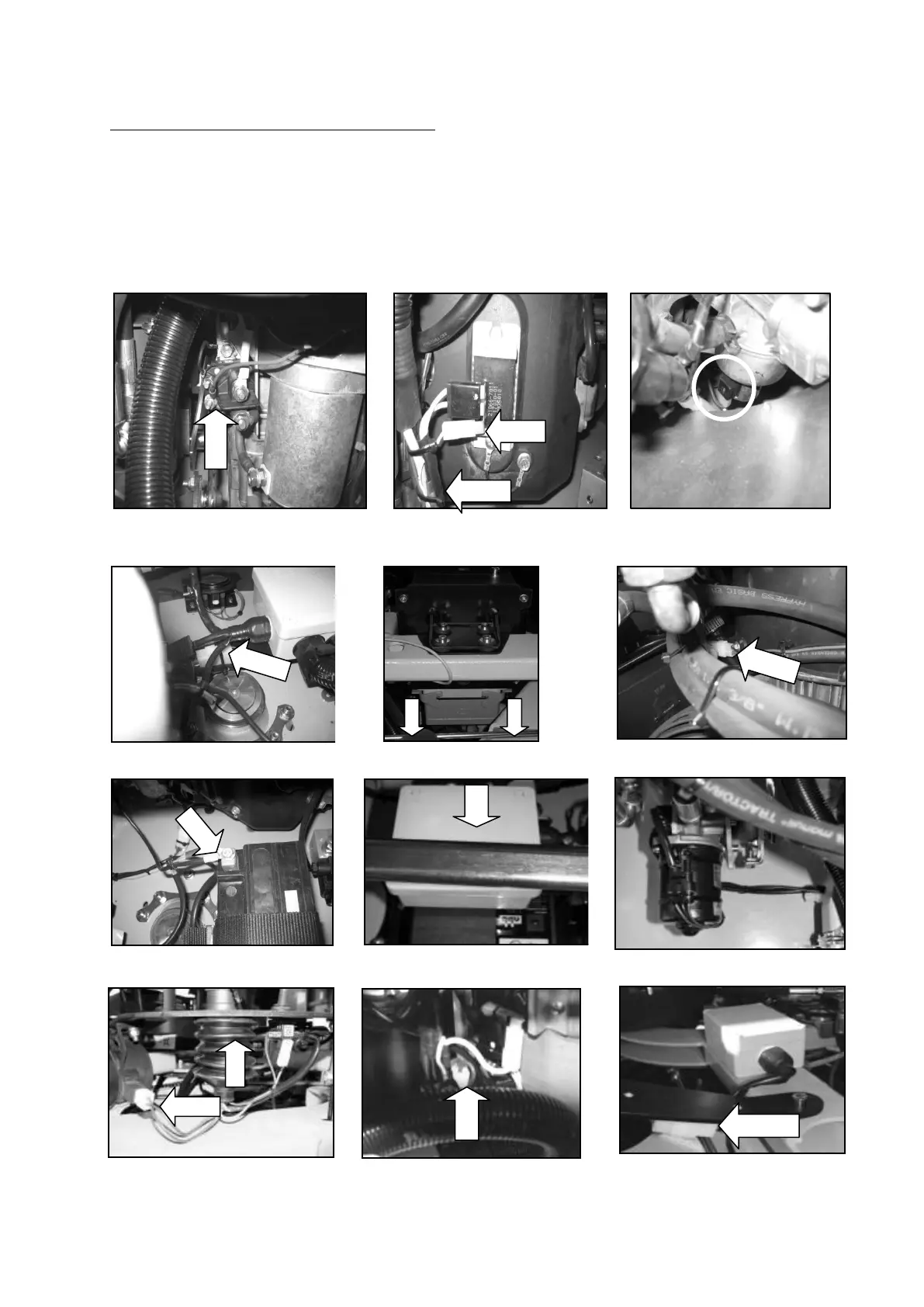

Starter relay Charger Carburettor solenoid
Control panel Connector of the control unit
Steering servomotor
Battery ground
Fuse box
Driving servomotor NBB
Stop button and horn Clutch Elevation module
