56 / 84 SM-SG-2 Ev3/25062014
Mounting:
- Pull the girder and cross onto the guide bars and place the toothed segment into the teeth of the sliding bar
(1
st
tooth in the 1
st
groove) (Fig. 119)
- Assemble the girder bolts, bolt sets, stabilizer stiffener, lift levers, valve EDH, expansion tank, controller
bracket, choke button, elevation module, hydraulic motors and driving belts see 6.6 Replacement of the
hydraulic motor
- Connect the battery

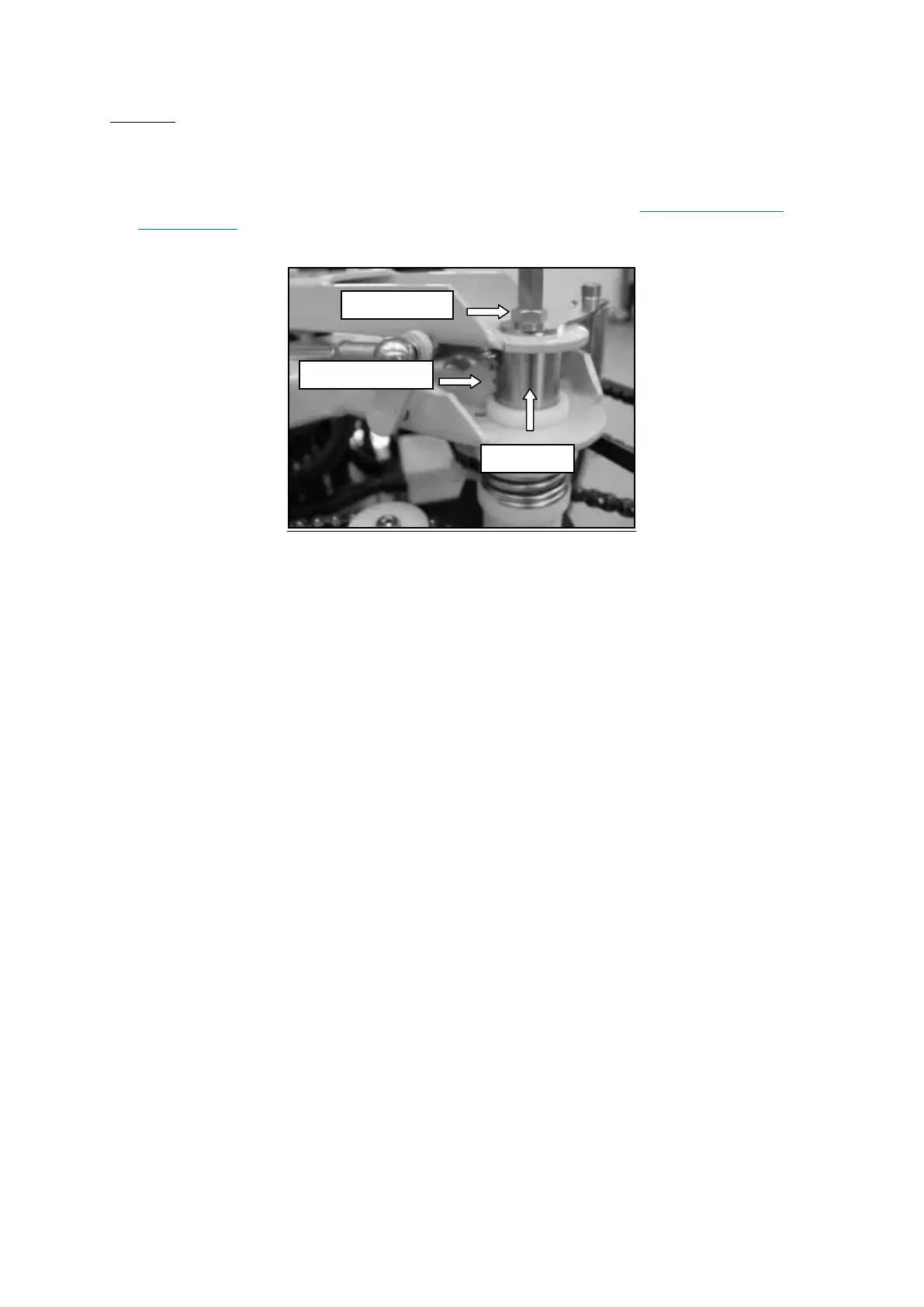

Fig. 119
