26 / 84 SM-SG-2 Ev3/25062014

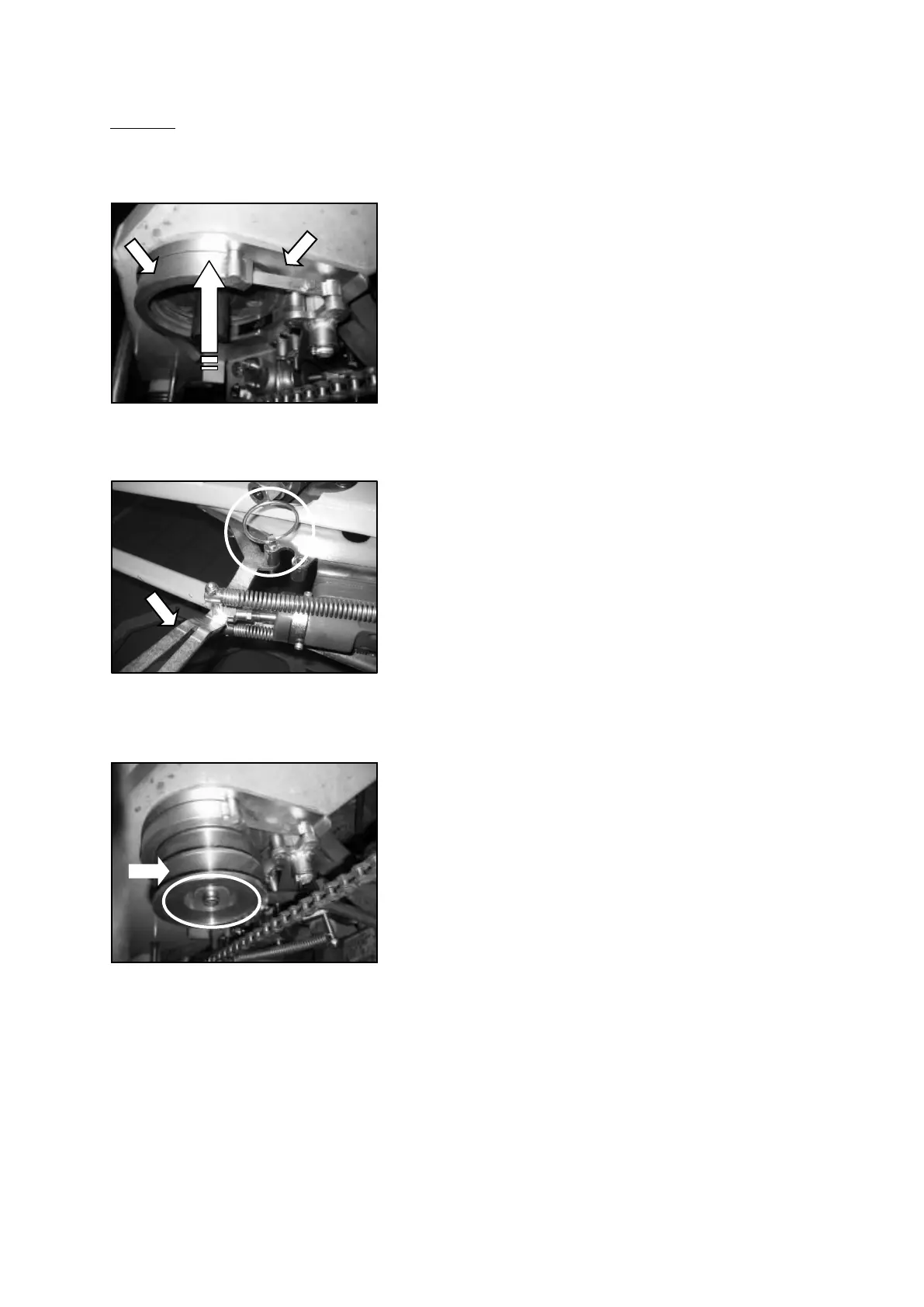

Mounting:
- Put the brake bracket – complete to the cross – see Fig.
- Mount the brake strap through the brake bracket – complete, cross, hydromotor and tight them by means of
two nuts M10 – don´t tight (Fig.42)
Fig. 45
- Tight two springs TR1660 of the brake lever and fix them by means of the securing pin
Fig. 46
- Mount new pulley to the hydromotor shaft and fix by means of the hydromotor washer , spring washer 8
and Bolt M8x25.See the pulley position
Fig. 47
