61 / 84 SM-SG-2 Ev3/25062014

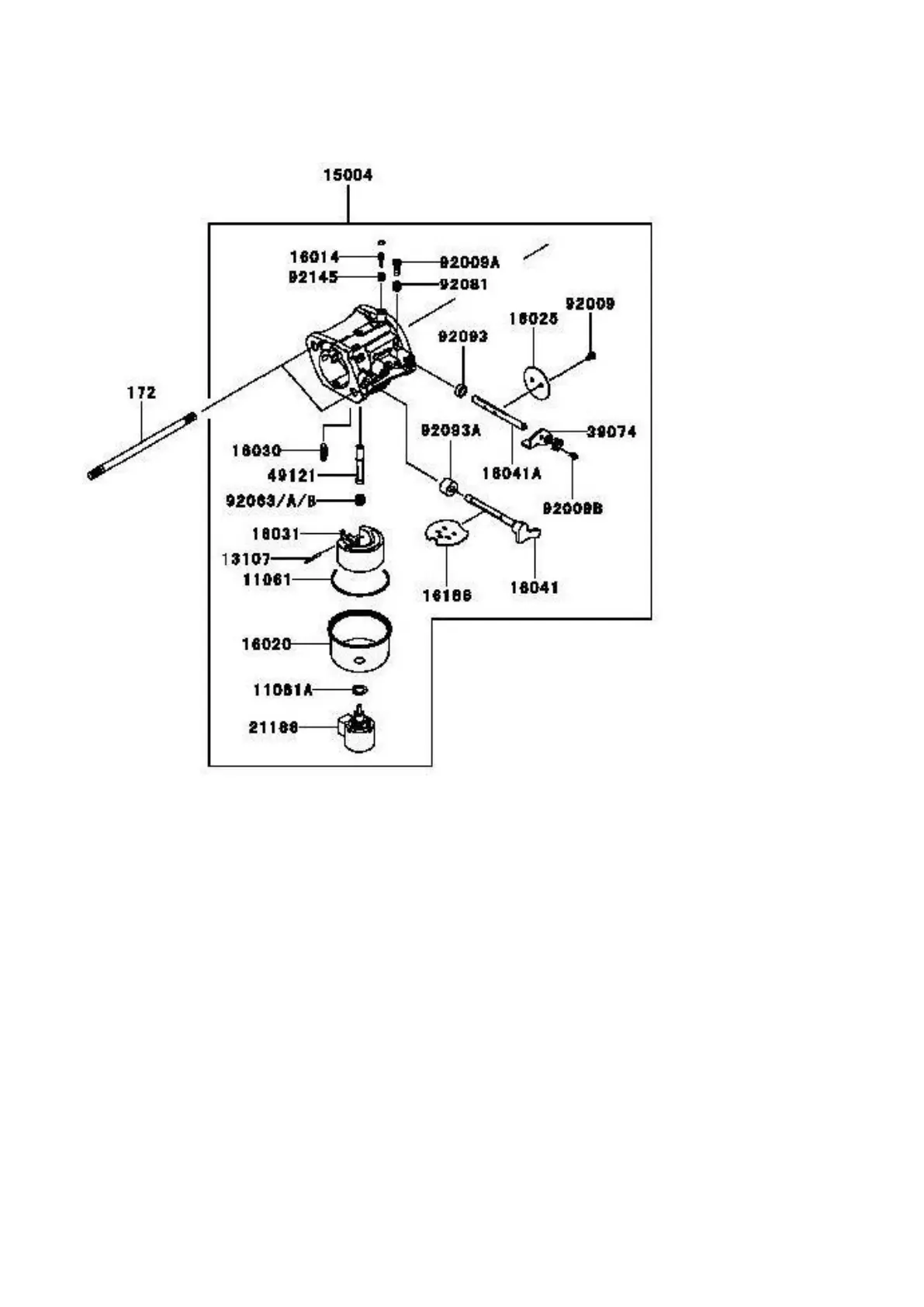

CARBURETTOR PARTS DIAGRAM
11061-7009 GASKET,CHAMBER
11061-7010 GASKET,SCREW
11061-7087 GASKET,INSULATOR
11061-7088 GASKET,INSULATOR/MANIFOLD
11061-7093 GASKET,MANIFOLD
130AA0630 BOLT-FLANGED,6X30
13107-7018 SHAFT
15004-7063 CARBURETOR-ASSY
16014-7010 SCREW-PILOT AIR
16020-7003 CHAMBER-FLOAT
16025-7017 VALVE-THROTTLE
16030-7003 VALVE-FLOAT
16031-7002 FLOAT
16041-7050 SHAFT-CARBURETOR,CHOKE
16041-7051 SHAFT-CARBURETOR,THROTTLE
16073-7013 INSULATOR
16186-7006 VALVE-ASSY-CHOKE
172BA06115 BOLT-STUD,6X115
21188-7002 SOLENOID
39074-7001 LEVER-ASSY-THROTTLE
49121-7018 NOZZLE-MAIN
59076-7019 MANIFOLD-INTAKE
92009-2083 SCREW
92009-2349 SCREW
92009-2402 SCREW
92063-7141 JET-MAIN,#122,3280FT
92063-7142 JET-MAIN,#124
92063-7149 JET-MAIN,#120,6560FT
92081-2234 SPRING
92093-2100 SEAL
92093-7003 SEAL
92145-2122 SPRING
