dynabook Portege X40L-K Series Maintenance Manual

Maintenance Manual (960-949) 4-28
Replacement Procedures

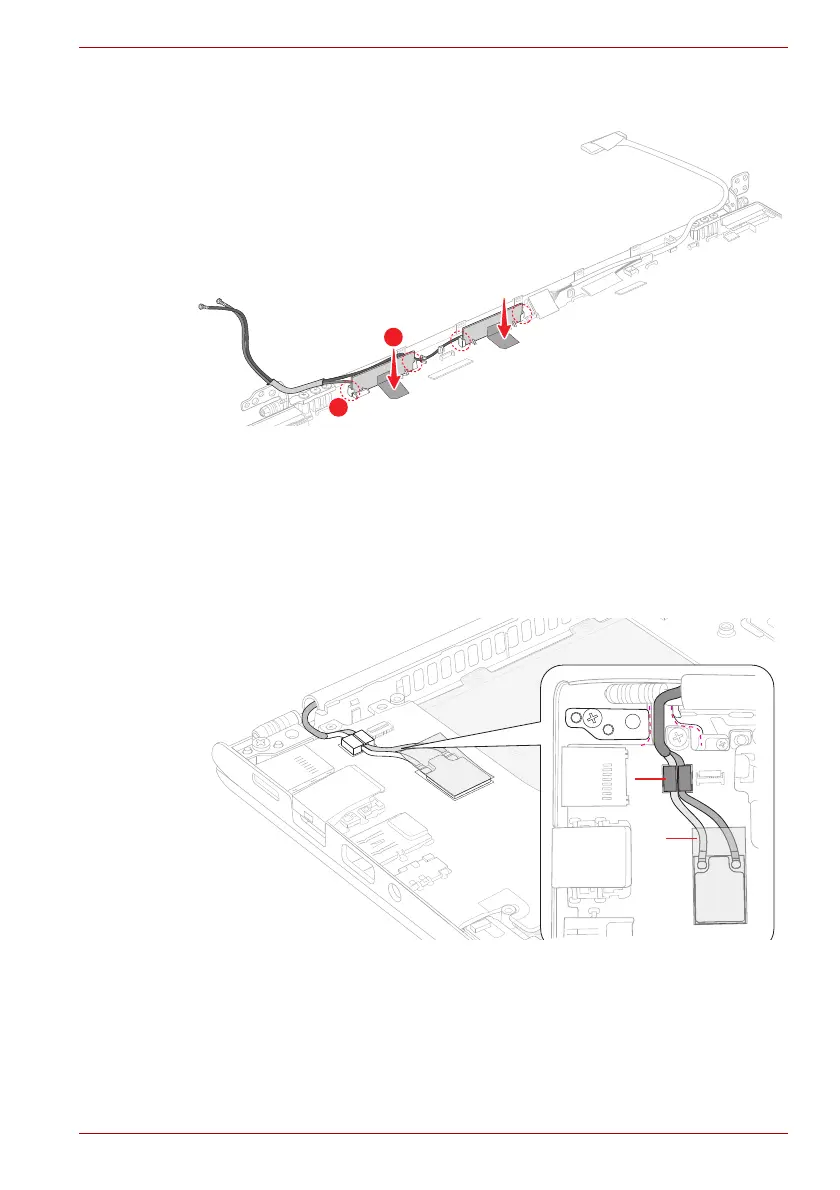

Figure 4-28 Installing the W-LAN antenna (1)
3. Set the hinge cap while engaging the latches.
4. Peel off the separator on the LCD mask and then set the LCD mask on
the LCD cover.
5. Arrange the Wireless antenna cables in place and secure it with
RUBBER HLD.
6. Stick a new INSU on the wireless LAN card.
Figure 4-29 Installing the W-LAN antenna(2)
1
2
Bound & Detach TapeBound & Detach Tape
INSU
RUBBER HLD
