Maintenance Manual (960-949) 4-10
Replacement Procedures
4.10.2 Installing the Base Assembly
To install the Base Assembly, follow the steps below.
1. Set the Cover Assembly on the Base Assembly while securing the
latch.
2. Secure the Cover Assembly and Base Assembly with the screws.
3. Turn the computer, and open the display.
4.11 Battery pack
4.11.1 Removing the Battery pack
To remove the battery pack, follow the steps below.
1. Disconnect the BATTERY HARNESS from the connector CN8021 on
the System board.
2. Remove the following screws and the battery pack.

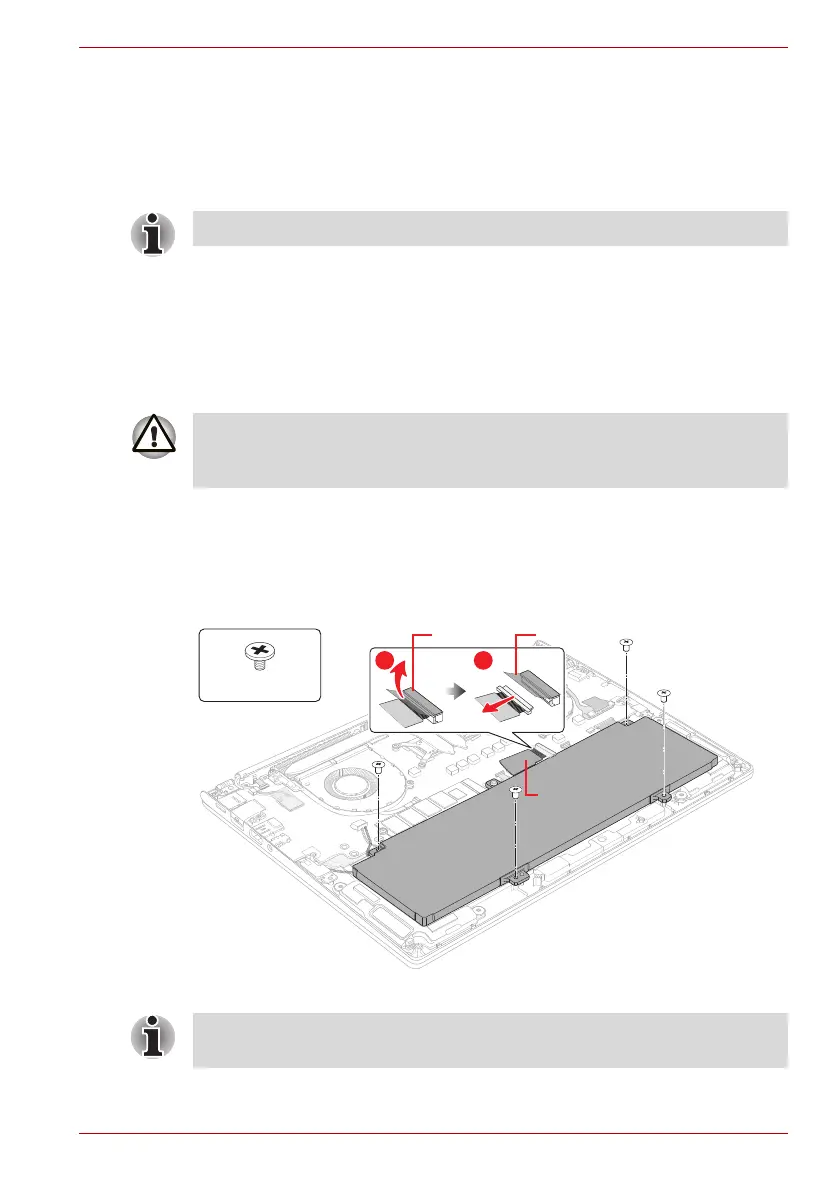

Figure 4-6 Releasing the battery pack
Do not reuse the removed screws. Be sure to use new screws.
Take care not to short circuit the terminals when removing the battery
pack. Similarly, do not drop, knock, scratch, disassemble, twist, or bend
the battery pack.
S2 x 4CT
CN8021CN8021
Battery Harness
INSU
1 2
CN8021
Dispose of the used/removed battery pack in accordance with the laws and
ordinances of your local authority.
