Maintenance Manual (960-949) 4-30
Replacement Procedures
2. Remove the Mylar from the LCD cover first and then stick 4 pieces of
bound & detach tapes referring to the marking line on the LCD cover.

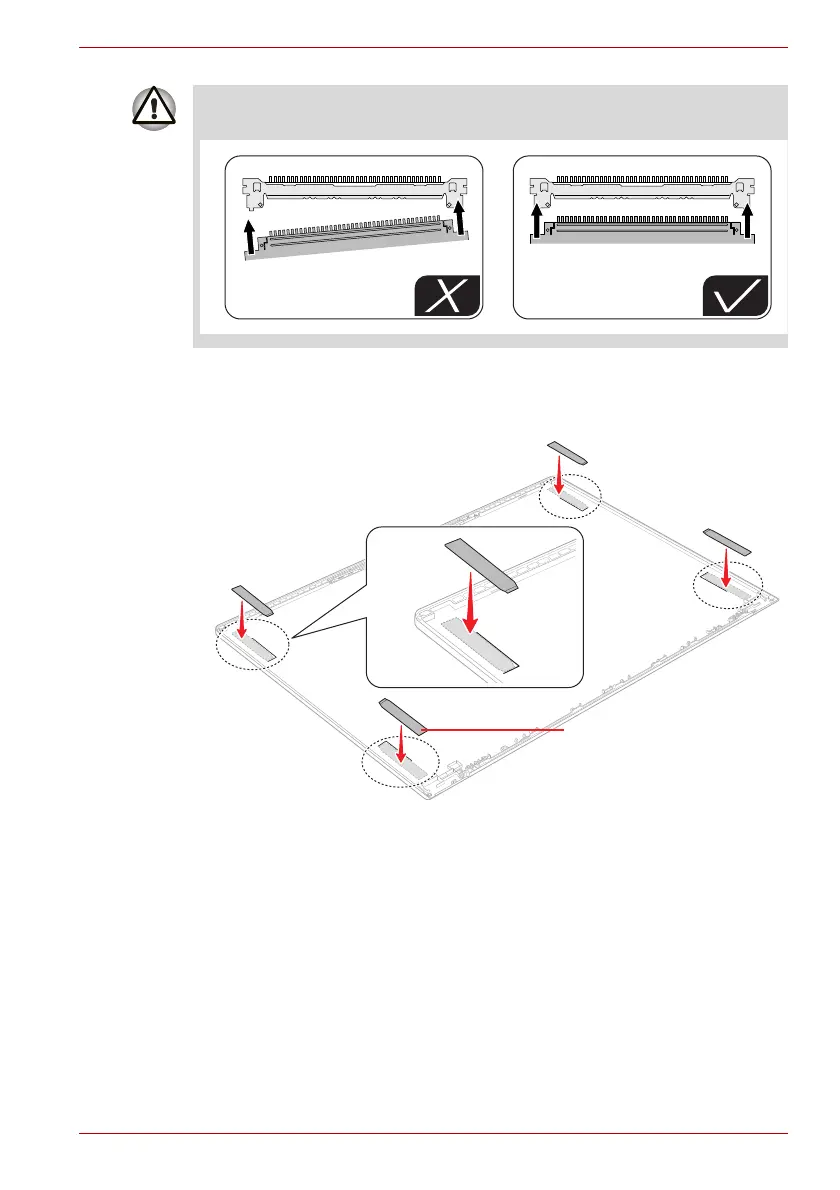

Figure 4-31 Installing the LCD unit (1)
3. Peel off the separators on the bound & detach tapes and then align the
marking line on the LCD cover to set the LCD in place.
When connect the LCD harness, make sure to connect the right and left
side at the same time as shown in the figure below.
